TSP650II Serie
TSP654IIBI Bluetooth*
TSP654II Airprint
TSP654II HI X CloudPRNT
TSP654II WebPRNT
TSP654IIE Ethernet
TSP654IIU USB
TSP654IID Serie
TSP654IIC Paralelo
TSP654II Sin Interfaz*
TSP654SK Impresora de etiquetas Re-stick
TSP650II Modelos
Impresora de recibos con interfaces conectables
La impresora de recibos básica y rápida (300 mm/s) TSP654II ofrece versatilidad a todos los niveles para EPOS y mPOS en entornos de comercio, hostelería o quiosco con interfaces USB, Ethernet, Bluetooth, WebPRNT, HI X CloudPRNT y Apple Airprint.
Combina una alta calidad de impresión, la reconocida fiabilidad de Star y funciones de instalación sencillas. ¡todo ello a un precio muy competitivo!
Nuestras impresoras, compactas y fáciles de usar, se integran de forma sencilla en su sistema ya existente gracias a la opción de conectividad por cable e inalámbrica, así como a controladores sofisticados y SDK (kits para desarrolladores de software) para todas las plataformas operativas más importantes.
Características
- Impresión de alto rendimiento: 300 mm por segundo
- Carga sencilla, “Introducir e imprimir”
- Alta calidad de impresión (203 ppp) con capacidad para códigos de barras, incluidos de 2D para recibos, cupones y emisión de tickets
- Tamaño compacto tanto horizontal como vertical y posibilidad de elegir entre ancho de papel de 58 mm u 80 mm
- Fiabilidad de 60.000.000 de líneas CRT y compatibilidad con la mayoría de las plataformas de sistema operativo
- Autocorte
- TSP654II Modelos: TSP654II AirPrint, TSP654II HI X Connect, TSP654IIBI Bluetooth, TSP654II WebPRNT, TSP654IIE Ethernet, TSP654IIU USB, TSP654IID Serial, TSP654IIC Parallel, TSP654SK Restick Label Printer, TSP654II No Interface
Datos técnicos
| Velocidad de impresión máx* |
150 mm/seg |
|---|---|
| Resolución | 203 dpi |
| No de Columnas |
48 / 64 col. dependiendo de la anchura del papel |
| Autocorte | Corte parcial (guillotina) |
| Ancho de papel | 80 mm (58 mm empleando guía de papel) |
| Grosor del papel | 0,065 ~ 0,085 mm |
| Rollo de papel (diámetro) |
83mm |
| Presentación de material |
Opciones de salida de papel seleccionables por el usuario con soporte de montaje incluido |
| Ancho de impresión |
50,8 mm (papel de 58 mm) 72 mm (papel de 80 mm) |
| Sensores | Sensor de fin del papel, cubierta abierta, fin próximo horizontal y vertical |
| Interfaz | Versiones serie, paralelo, USB, Ethernet, Bluetooth (MFi), Airprint y sin interfaz. Opciones conectables: Serie (IFBD-HD03), Serie de 9 agujas (HN03), Paralelo (HC03), Ethernet (HE07), WebPRNT (HE07X), HI X Connect CloudPRNT (HI01X) |
| Función Ethernet exclusiva de impresión con desconexión |
Estándar con opción IFBD-HE07 |
| Fuente de alimentación | Opción externa PS60A |
| Power Consumption | 1,9 Amps imprimiendo 0,15 Amps en espera |
| Energy Star | Externa, con calificación Energy Star, PS60 (opcional) |
| Fiabilidad | 60 millones de líneas 2 millón de cortes |
| Dimensiones (An x L x Al) mm |
142 x 203,5 x 132 1,60 kg |

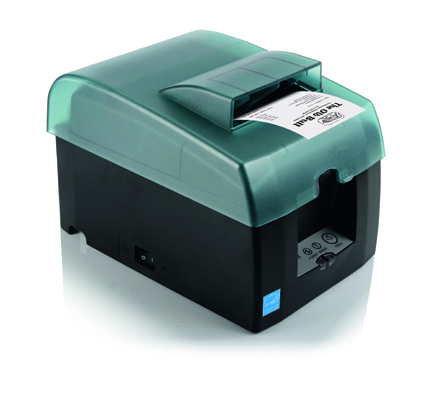

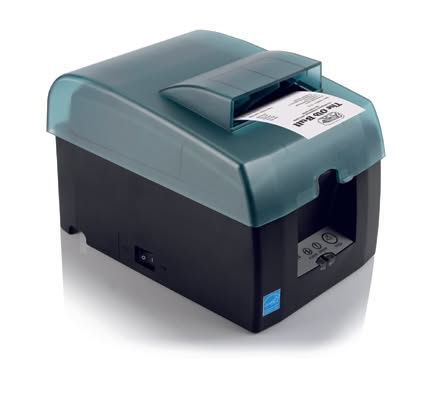

| Opciones | • T100/650, cubierta a prueba de salpicaduras • VS-T650/100, base de pantalla para uso vertical • Interfaces conectables (véase más arriba) |
Galería Fotos
Otros Productos
TSP650II Modelos
Accessories
| Part Number | Model | Description |
| 99256300 | TSP654IIHIX GRY E+U | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, HI X Connect Interface with Star CloudPRNT, Grey Case, EU / UK Version |
| 39481820 | TSP654II AIRPRINT ULTRA WHITE EU + UK | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Apple AirPrint Interface, Ultra White, EU / UK Version |
| 39481830 | TSP654II AIRPRINT GRY EU + UK | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Apple AirPrint Interface , Grey Case, EU / UK Version |
| 99449290 | TSP654II-24 w/o I/F ULTRA White KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, Ultra White Case, EU Version |
| 30009200 | TSP654II-24- w/o I/F WHITE KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, White Case, EU Version |
| 30009210 | TSP654II-24- w/o I/F GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, Grey Case, EU Version |
| 30009400 | TSP654IIC-24- WHITE KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Parallel Interface, White Case, EU Version |
| 30009410 | TSP654IIC-24- GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Parallel Interface, Grey Case, EU Version |
| 30009500 | TSP654IID-24 WHITE KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Serial Interface, White Case, EU Version |
| 30009510 | TSP654IID-24 GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Serial Interface, Grey Case, EU Version |
| 30009610 | TSP654IIU-24 GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, USB Interface, Grey Case, EU Version |
| 99481360 | TSP654IIE-24 ULTRA White KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Ethernet Interface, Ultra White Case, EU Version |
| 30009712 | TSP654IIE3-24 GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Ethernet Interface, Grey Case, EU Version |
| 39481600 | TSP654IIBI-24 ULTRA White KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, Grey Case, EU Version |
| 30009820 | TSP654IIBI2-24 WHITE KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, White Case, EU Version |
| 30009821 | TSP654IIBI2-24 GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, Grey Case, EU Version |
| 39449200 | TSP654II-24- w/o I/F WHITE | Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, No Interface, White Case, EU / UK Version |
| 39449210 | TSP654II-24- w/o I/F GRY | Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, No Interface, Grey Case, EU / UK Version |
| 39449400 | TSP654IIC-24- WHITE | Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Parallel Interface, White Case, EU / UK Version |
| 39449410 | TSP654IIC-24- GRY | Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Parallel Interface, Grey Case, EU / UK Version |
| 39449500 | TSP654IID-24 WHITE | Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Serial Interface, White Case, EU / UK Version |
| 39449510 | TSP654IID-24 GRY | Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Serial Interface, Grey Case, EU / UK Version |
| 39449610 | TSP654IIU-24 GRY | Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, USB Interface, Grey Case, EU / UK Version |
| 39449712 | TSP654IIE3-24 GRY | Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Ethernet Interface, Grey Case, EU / UK Version |
| 39481140 | TSP654IIBI OF-24 WHITE | Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Bluetooth Interface, White Case, EU / UK Version |
| 39481410 | TSP654IIBI2 OF-24 Gry | Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Bluetooth Interface, Grey Case, EU / UK Version |
| 99449291 | TSP654II-24 w/o I/F ULTRA White KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, Ultra White Case, UK Version |
| 30009205 | TSP654II-24- w/o I/F WHITE KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, White Case, EU Version |
| 30009215 | TSP654II-24- w/o I/F GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, Grey Case, UK Version |
| 30009405 | TSP654IIC-24- WHITE KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Parallel Interface, White Case, UK Version |
| 30009415 | TSP654IIC-24- GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Parallel Interface, Grey Case, UK Version |
| 30009505 | TSP654IID-24 WHITE KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Serial Interface, White Case, UK Version |
| 30009515 | TSP654IID-24 GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Serial Interface, Grey Case, UK Version |
| 30009615 | TSP654IIU-24 GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, USB Interface, Grey Case, UK Version |
| 99481361 | TSP654IIE-24 ULTRA White KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Ethernet Interface, Ultra White Case, UK Version |
| 30009717 | TSP654IIE3-24 GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Ethernet Interface, Grey Case, UK Version |
| 99481261 | TSP654IIBI-24 ULTRA White KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, Grey Case, UK Version |
| 30009818 | TSP654IIBI2-24 WHITE KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, White Case, UK Version |
| 30009819 | TSP654IIBI2-24 GRY KIT | Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, Grey Case, UK Version |
| 39449110 | TSP654SK-24 w/o I/F GRY | Thermal, 80mm Wide, Restick Label Printer (Requires PS60 PSU), No Interface, Grey Case |
| 30781880 | PS60-A-24-BI PSU EU | 24VDC Mains Power Supply Unit. EU Power Lead |
| 30781890 | PS60-A-24-BI PSU UK | 24VDC Mains Power Supply Unit. UK Power Lead |
| Accessories | ||
| 39590530 39591100 39594001 |
VS-T650/100 (desk boot) SplashProof CoverT100/650 BUZZER BU01-24-A |
Vertical stand for TSP650II Splash Proof Cover for TSP650II Buzzer alert for TSP650II |
| Interfaces | ||
| 39607040 39607200 39607211 39607300 39607803 39607820 39607832 |
IFBD-HI01X IF-BDHD03 D IF-BDHC03 C IF-BDHN03 9pinD IF-BDHE07 Ethernet IFBD-HU07 USB IFBD-HE07X WEBPRNT |
HI X Connect Intelligent Interface with Star CloudPRNT Plug-in Serial Interface for TSP650II Plug-in Parallel Interface for TSP650II Plug-in 9 Pin Serial Interface for TSP650II Plug-in Ethernet Interface for TSP650II Plug-in USB Interface for TSP650II Plug-in WebPRNT Interface for TSP650II |
| CB-2002 Cash Drawer | ||
| 55555558 | CB-2002 LC UN Cash Drawer White | CB-2002 Cash Drawer , White, (Not Ultra White), 8 upright notes & 8 coin slots & cheque/large slot, Suitable for TSP100, TSP650, TSP700, TSP800 & FVP10 |
| 55555562 | CB-2002 LC FN Cash Drawer Eco Black | CB-2002 Cash Drawer, Eco Black, 8 flat note sections, 8 coin slots and cheque/large slot Suitable for TSP100 & TSP650 |
| 55555563 | CB-2002 LC FN Cash Drawer Ultra White | CB-2002 Cash Drawer, Ultra White, 8 flat note sections, 8 coin slots and cheque/large slot Suitable for TSP100 & TSP650 |
