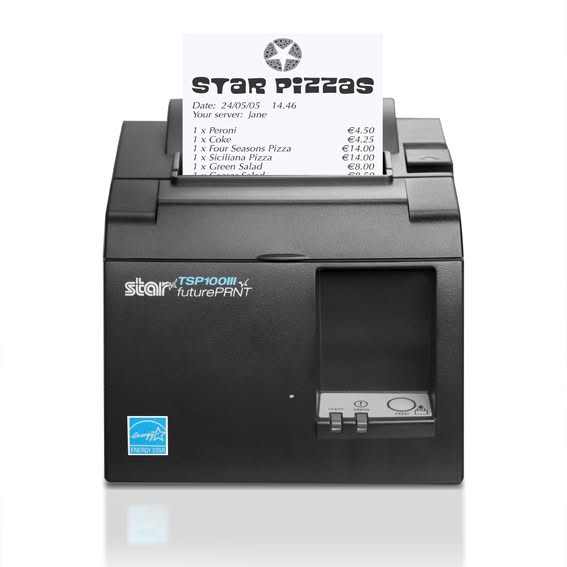

TSP100 Serie
TSP143IIU+ USB
TSP143IIIU USB con la impresión DIRECTA de recibos desde
iPad a través de cable USB – lightning
TSP143IIILAN Ethernet con autocorte
TSP143IIIW WLAN con autocorte
TSP143IIIBI Bluetooth con autocorte
Impresora TPV de recibos con software futurePRNT incluido
La TSP100, la impresora de Star más vendida todo el mundo y que establece un nuevo estándar de referencia en tecnología de impresión para TPV, es la primera impresora de recibos para TPV gestionada mediante software que ofrece una aplicación plug & play inmediata.
TSP143IIU+USB, TSP143IIIU, TSP143IIILAN, TSP143IIIWLAN, TSP143IIIBI – Lo último en impresora térmica de recibos que permite una comunicación fiable a larga distancia y con software exclusivo de valor añadido futurePRNT para marketing e instalación.
Software FuturePRNT
Software FuturePRNT permite al comerciante adaptar y modificar continuamente todos los aspectos de la emisión de recibos en función de sus necesidades individuales
Otras prestaciones avanzadas, como rediseño de recibos, diario electrónico, impresión bajo demanda, recibos multicopia dependiendo de los gráficos y reducción automática de texto, pueden configurarse simplemente marcando una casilla de verificación.
La utilidad de configuración exclusiva de la TSP100 reduce el tiempo de integración a unos minutos, ya que puede copiar la configuración de impresoras individuales en múltiples unidades situadas en diferentes ubicaciones si es preciso. No es necesario sacar la impresora de la caja para configurarla antes de su instalación.
TSP143IIU+
Impresión térmica económica y fiable
TSP143IIIW
TSP143IIIU
TSP143IIILAN
TSP143IIIBI
Características
- Velocidad de impresión150 mm – 250mm por segundo
- Carga sencilla del papel, tipo “Introducir e imprimir”
- Versiones USB, LAN, WLAN y Bluetooth
- Todos accesorios incluidos con la impresora
- Software futurePRNT incluido
- Software Star Cloud Services incluido
- Autocorte (cuchilla de guillotina de alta calidad)
- Garantía de 4 años para todos los modelos de la serie futurePRNT (Europa)
Descargas
- Folleto TSP100
- Folleto de los productos: Kiosk
- Controlador, manual, SDK
- Galería fotos
- Videos
- Clientes Star
AllReceipts Recibos Digitales
Datos técnicos
| Max. Print Speed | TSP143IIECO : 150mm/sec. TSP143IIILAN: 250mm/sec. TSP143IIIW: 250mm/sec. TSP143IIIBI: 250mm/sec |
|---|---|
| Resolution | 203 dpi |
| No. of Columns | 48 / 64 col. Depending on Paper Width |
| Autocutter | Partial (Guillotine) Autocutter |
| Paper Width | 80mm (58mm Using Paper Guide) |
| Paper Thickness | 0.053 – 0.085 (TSP100III Serie) 0.065 – 0.085mm (TSP143IIECO) |
| Paper Roll Standard Option | 83mm |
| Media Presentation | User Selectable Paper Delivery Options with Mounting Bracket included |
| Print Width | 50.8mm (58mm Paper) 72mm (80mm Paper) |
| Sensors | Paper End, Cover Open |
| Interface | USB 2.0 Full Speed with Cable Supplied and “Virtual’’ Serial Port Emulator. LAN, WLAN and Bluetooth Versiones |
| Unique Ethernet Print on Disconnection Feature | |
| Power Supply | Internal with Power Cable included |
| Power Consumption | 1.6 Amps Printing 0.1 Amps Standby |
| Energy Star | Energy Star Certified Internal Power Supply with Power Cable included |
| Reliability | 60 Million Lines, 2 Million Cuts (TSP100III Series) 1 Million Cuts (TSP143IIECO) |
| Dimensions (W x D x H) mm Weight | 142 x 204 x 132 1.56kg – 1.76kg |
| Options |
|
Galería Fotos
Invalid Displayed Gallery
Otros Productos
TSP100 Modelos
| Part Number | Model | Description |
| 39473090 | TSP143IV UE GRY E+U | Thermal, TSP143IV UE 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB-C, USB-A, Ethernet Interface, CloudPRNT, Grey Case, UK & EU Version |
| 39473190 | TSP143IV UE WHT E+U | Thermal, TSP143IV UE 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB-C, USB-A, Ethernet Interface, CloudPRNT, White Case, UK & EU Version |
| 39472730 | TSP143IIU+ GRY EU | Thermal, TSP143IIU+ futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, Classic USB Interface Printer, Grey Case, EU Version |
| 39472740 | TSP143IIU+ GRY UK | Thermal, TSP143IIU+ futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, Classic USB Interface Printer , Grey Case, UK Version |
| 39472390 | TSP143IIIU GRY E+U | Thermal, TSP143III futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB Interface with direct iPad / iPhone charging and data transfer, Grey Case, EU & UK Version |
| 39472490 | TSP143IIIU WHT E+U | Thermal,TSP143III futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB Interface with direct iPad / iPhone charging and data transfer, Ultra White Case, EU & UK Version |
| 39472090 | TSP143IIILAN EU + UK Ultra White | Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Ethernet Interface, Ultra White Case, EU and UK Version |
| 39464990 | TSP143IIILAN EU + UK Gry | Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Ethernet Interface, Grey Case, EU and UK Version |
| 39464790 | TSP143IIIW EU + UK Gry | Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, WLAN WiFi Interface, Grey Case, EU and UK Version |
| 39464890 | TSP143IIIW EU + UK Ultra White | Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, WLAN WiFi Interface, Ultra White Case, EU and UK Version |
| 39472190 | TSP143IIIBI EU + UK Gry | Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Bluetooth Interface, Grey Case, EU and UK Version |
| 39472290 | TSP143IIIBI EU + UK Ultra White | Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Bluetooth Interface, Ultra White Case, EU and UK Version |
| Accessories | ||
| 30907210 | MCW10 CO2 | Wireless LAN Adapter (Please check model and regions with Star) |
| 39990020 | SCD222U WHT | Star SCD222 customer display white |
| 39990030 | SCD222U BLK | Star SCD222 customer display black |
| 39594010 | MCS10 mC-Sound | mC-Sound Melody Buzzer Alert with 16 Sounds (TSP100IV) |
| 09990641 | Buzzer 104S120LFA | Buzzer Alert for TSP100 |
| 39591100 | Splash Proof Cover T100/650 | Splash Proof Cover for TSP100IIU+ and TSP100III Series |
| 39590530 | VS-T650/100 (desk boot) | Vertical Desk Stand for TSP100IIU+ and TSP100III Series |
| Cash Drawers | ||
| 55555562 | CB2002 LC FN black | CB2002 Cash Drawer Flat Note ECO Black |
| 55555563 | CB2002 LC FN white | CB2002 Cash Drawer Flat Note Ultra White |
| 55555560 | CB2002 LC UK grey | CB2002 Cash Drawer Upright Note Grey |
| 55555561 | CB2002 LC FN grey | CB2002 Cash Drawer Flat Note Grey |
| 99250025 | CB2002 Z Bracket | CB2002 Z Bracket for mounting under counter |
| 99250018 | CB2002 Lockable Cover | Lockable cover for removable CB2002 tray |
