mPOP™ Advanced POS Solution: Combined Bluetooth POS Receipt Printer and Cash Drawer
Outstanding connectivity and design plus intuitive functionality and simple integration are delivered ready to work with your chosen mobile POS software and card payment system. Welcome to a new Era for mPOS.

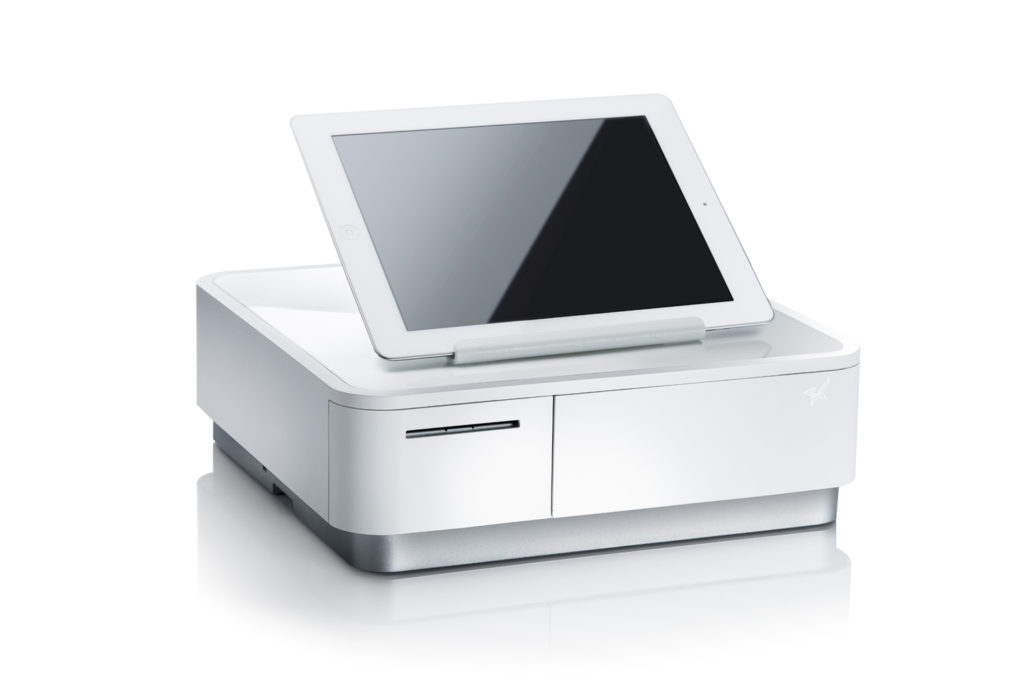

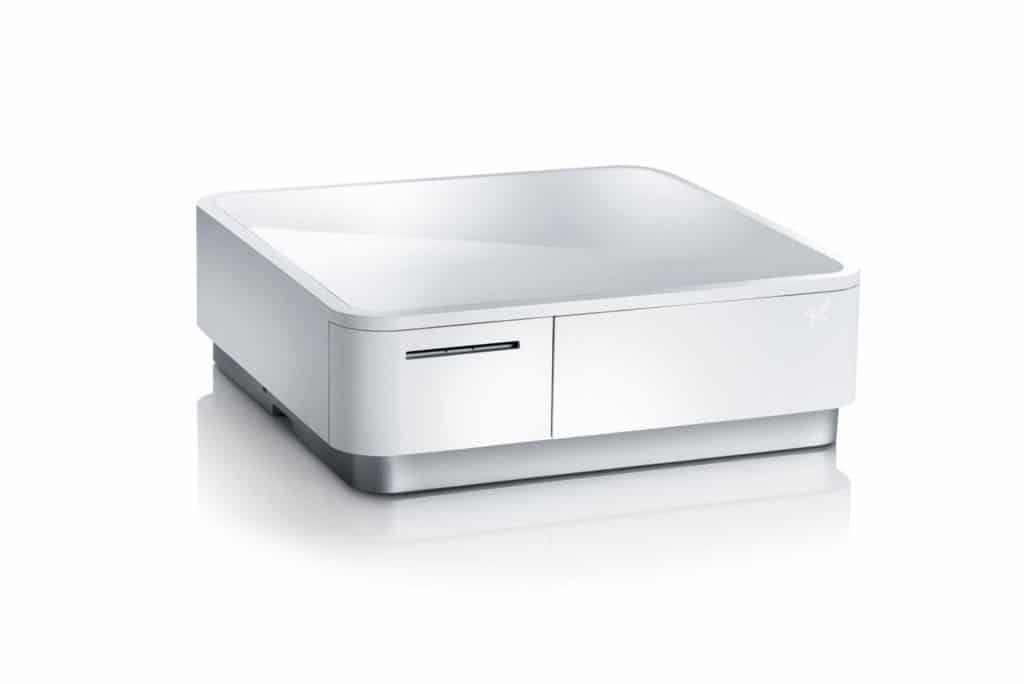

The Star mPOP™ is a unique combined receipt printer and cash drawer, simple and elegant, yet loaded with intuitive design features. At just 10cm high and 30cm wide, the mPOP™ is easily transportable and offers a contemporary alternative to a traditional cash register or EPOS system. The mPOP can be easily secured on any counter top or or can be fixed under the counter.
With Bluetooth connectivity, the mPOP will connect with Apple, Android, Windows or Linux tablets or smartphones and only one mains cable is needed for operation.
The multiple functions. portability and connectivity of the mPOP™ make processing customer transactions smooth and effortless for outlets such as bars, cafés, retail outlets and pop up stores.
Star’s mPOP combined printer and cash drawer can be easily transformed into an mPOS station with the POPPack – a high quality metal tablet stand & plate and optional hoder for a payment device.
The POPPack design provides a flexible option in black or white with the extra security required within a busy retail or hospitality environment. This makes the solution ideal for pop up stores, micro merchants as well as larger scale retailers who want to securely store or transport the mPOS station at the end of trading.
Vesa mounting bracket and under counter bracket
Additional Cash Drawer Support
The latest version of the mPOP SDK and mPOP Utility includes an additional DK cash drawer port for traditional RJ12 cash drawers which will allow an additional cash drawer to be connected inlcuding Star’s CB2002 cash drawer.
SCD222 Customer Display
Star’s New mini Customer Display has been designed to specifically work with the unique mPOP through the USB port and is available in white or black casing. The display features 2 lines of 20 characters or full graphics data via the blue back-lit, 160 x 40 pixel LCD display. 141 x 79 x 60mm 210g
iOS High Powered Y Cable
The mPOP can charge the iPad Pro using the new Y charging cable which can supply 2.4A from the two 1.5Amp mPOP ports
Optional Symbol DS9208 2D Barcode scanner can scan virtually any barcode from paper labels to electronic displays. Contemporary design with small footprint with hand-held or hands-free mode
Star Cloud Services
Star’s mPOP includes free of charge Star’s Digital Receipt Solution from Star Cloud Services, a fast, free, and secure digital receipt solution available on Star Micronics thermal receipt printers enabling retailers to better engage with shoppers.
Thermal Roll Paper: width 57mm, diamater 50mm, core diameter 12mm – 60gsm
- Unique mobile point of purchase solution for merchants requiring a Bluetooth printer and cash drawer to link with their choice of mobile device and software
- Ultra compact with advanced cable routing to maintain sleek design
- Reliable 58mm wide 100mm/second printer with easy top paper loading and autocutter as standard
- Functional compact cash drawer with fast drawer release, multi-configurable note and coin slots
- Classic Bluetooth connectivity compatible with Android, Apple iOS, Linux and Windows devices
- Clear LED display for status information such as paper low, Bluetooth pairing status etc.
- Multiple USB ports for external devices and peripheral charging
- Secure counter clip, under counter mount and 3rd party Kensington lock facility
- SEcond Cash Drawer Support: The latest version of mPOP with SDK & mPOP Utility support will now feature an additional DK cash drawer port for traditional RJ12 cash drawers including Star EMEA’s CB2002 Series Cash Drawer
- Star Scanner available to purchase separately
- Access to Star Cloud Services including AllReceipts Digital Receipting included free of charge
- Optional POPPack metal tablet stand and plate with optional payment device holder available in black or white
- Further Optional Accessories include: SCD222 Customer Display, Symbol DS9208 2D Scanner, iOS High Powered Y Cable for charging iPad Pro and other iOS devices
The Star mPOP is designed to work with a wide range of retail, hospitality and payment software packages. Please contact us for details of a recommended mPOP reseller in your region or see the mPOP Applications section below to contact an mPOP software supplier directly.
- Clear All
- New Zealand
- South Africa
- United States
|Versions||mPOP™ with Star scanner / mPOP™ without Star scanner|
|Printer||2″ direct thermal with front loading design|
|Thermal roll paper (Contact Star for details)
50mm, core diameter 12mm
0.053 – 0.075mm
Drop In & Print

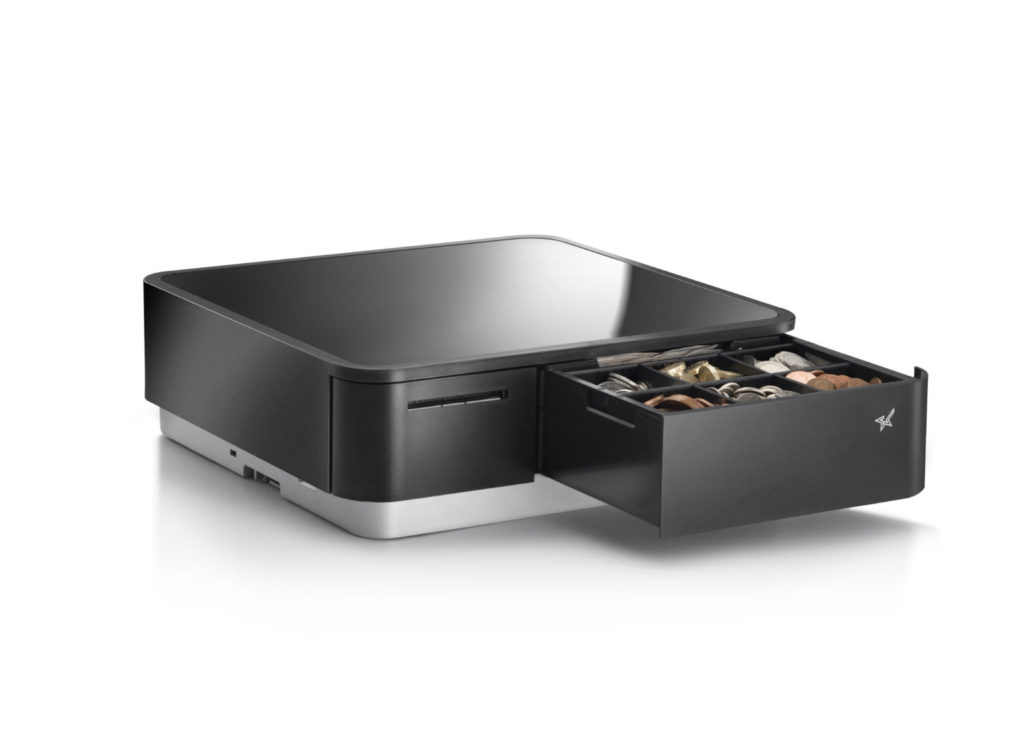

|Cash Drawer||4 upright note holders and flexible 6 or 8 coin slots
Support for an additional cash drawer with latest mPOP SDK and mPOP Utility
|Lock Key||Software controlled lock with emergency lock release|
|Internal Power Supply||Energy Star|
|mPOP Case Colour||White & Silver / Black & Silver|
|Interface||Bluetooth 2.1 & USB|
|Status LEDs||Yes (power, error, bluetooth pairing etc.)|
|Operating System||iOS / Android / Windows|
|Emulation||Star Line Mobile Mode|

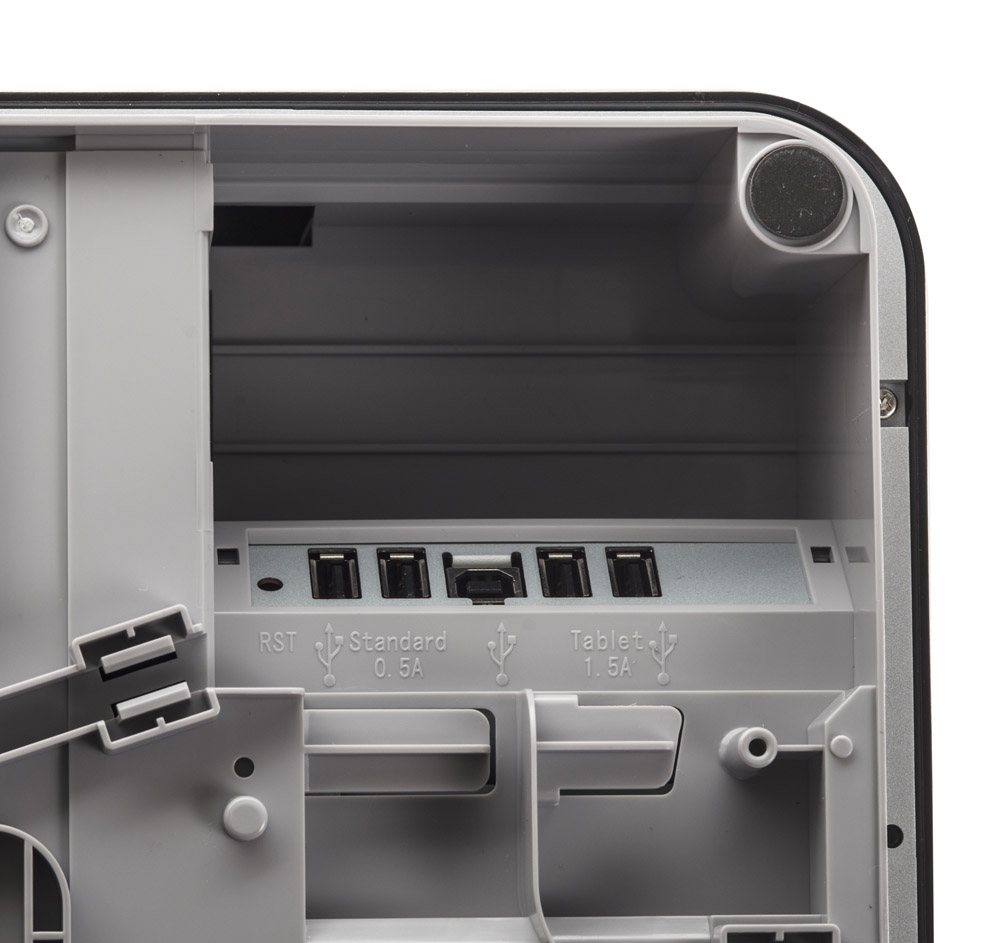

|USB Port||1 slave USB port, 2 x 0.5A USV host, 2 x 1.5A USB host for external device charging / peripherals|
|Sensors||Cover open, paper end|
|External Dimensions||308 x 300 x 100mm (w x d x h) 3.5kg|
|Included||mPOP Printer and Cash Drawer, Simple double sided tablet stand, mPOP fixing tool, AC cable, Paper roll, BCR (with scanner version), Star mPOP Utility (download), Access to Star Cloud Services including AllReceipts Digital Receipting|
POPPack metal stand and plate accessory.
Also available: VESA mount and under counter bracket, SCD222 Customer Display, Symbol 2D Scanner, High Powered Y cable for charging iPad Pro and other iOS devices.
Star mPOP Scanner
Symbol DS9208 2D Barcode scanner
PoPPack Metal Plate and Tablet Stand
SCD222 Customer Display for mPOP
|39650091||mPOP White EU & UK||mPOP Combined 58mm Thermal Printer and Cash Drawer, Bluetooth, Autocutter, White Case|
|39650191||mPOP White EU & UK with Barcode scanner||mPOP Combined 58mm Thermal Printer and Cash Drawer, Bluetooth, Autocutter, Barcode Scanner, White Case|
|39650291||mPOP Black EU & UK||mPOP Combined 58mm Thermal Printer and Cash Drawer, Bluetooth, Autocutter, Black Case|
|39650391||mPOP Black EU & UK with Barcode scanner||mPOP Combined 58mm Thermal Printer and Cash Drawer, Bluetooth, Autocutter, Barcode Scanner, Black Case|
|39594100||BCR -POP1 White||Star 1D barcode scanner for mPOP White|
|39594110||BCR -POP1 Black||Star 1D barcode scanner for mPOP Black|
|39590900||mPOP counter mount kit||Under Counter Mount Kit for mPOP|
|39590910||mPOP stand bracket White||Bracket Stand White for use with mPOP|
|39590920||mPOP stand bracket Black||Bracket Stand Black for use with mPOP|
|99250300||POPPACK 10 STAND WHT||PopPack Metal Plate and Tablet Stand White|
|99250310||POPPACK 10 STAND BLK||PopPack Metal Plate and Tablet Stand Black|
|99250320||POPPACK 10 STD/PEDWHT||PopPack Metal Plate, Tablet Stand and PED Stand White|
|99250330||POPPACK 10 STD/PEDBLK||PopPack Metal Plate, Tablet Stand and PED Stand Black|
|37966440||DS9208 2D Black Scanner with USB Cable||Zebra / Symbol 2D Barcode Scanner for mPOP Black|
|37966450||DS9208 2D White Scanner with USB Cable||Zebra / Symbol 2D Barcode Scanner for mPOP White|
|37966470||mPOP Y cable for IOS||2.4A mPOP Charging Y Cable for Apple IOS devices ONLY using 2 1.5A mPOP charging ports|
|39990030||SCD222U BLK||Customer Display Black|
|39990020||SCD222U WHT||Customer Display White|
|99250280||mPOP Paper Rolls||20 x Thermal rolls: Paper width 57mm, diameter: 50mm, core size 12mm 60gsm|
