TSP100IVSK

Compact, Economical Liner-free Label Printer

TSP100IV SK Economical Thermal Linerless Label Printer

Part of Star’s popular TSP100 printer range, the TSP100IV SK is a compact, economical direct thermal linerless label printer for printing repositionable orders and re-stick labels for the growing food and drink takeaway and delivery market. Linerless labels do not have a backing paper and can be repositioned multiple times leaving virtually no residue. The TSP143IV SK is not only a step forward in printing technology but also in environmental responsibility, making it a perfect fit for modern, environmentally conscious businesses.

With multi-connectivity including Android AOA, the TSP100IV SK is ideal for PC, Network, Tablet and Cloud systems.

Use the calculator to see which label solution is best for you here.

Printed orders and labels help to improve order accuracy. Repositionable labels can be used in the food ordering and preparation process and can also be attached to food and drinks collection and delivery packaging.  The TSP100IV SK includes a paper taken sensor to queue labels until the first label is taken, improving ordering processes.

Super compact with an internal power supply and able to print vertically or horizontally or wall mounte, the TSP100IV SK is ideal for fast-food outlets, restaurants and cafes, food delivery services, dark kitchens and grocery stores, catering outlets and convenience stores.

The renowned quality and reliability of the TSP100 series are exemplified in the TSP100IV SK model. Boasting the same size and compact design, it ensures familiarity and seamless integration for users accustomed to the TSP100. A 4 year warranty is included with all TSP100 models.

Versatile connectivity

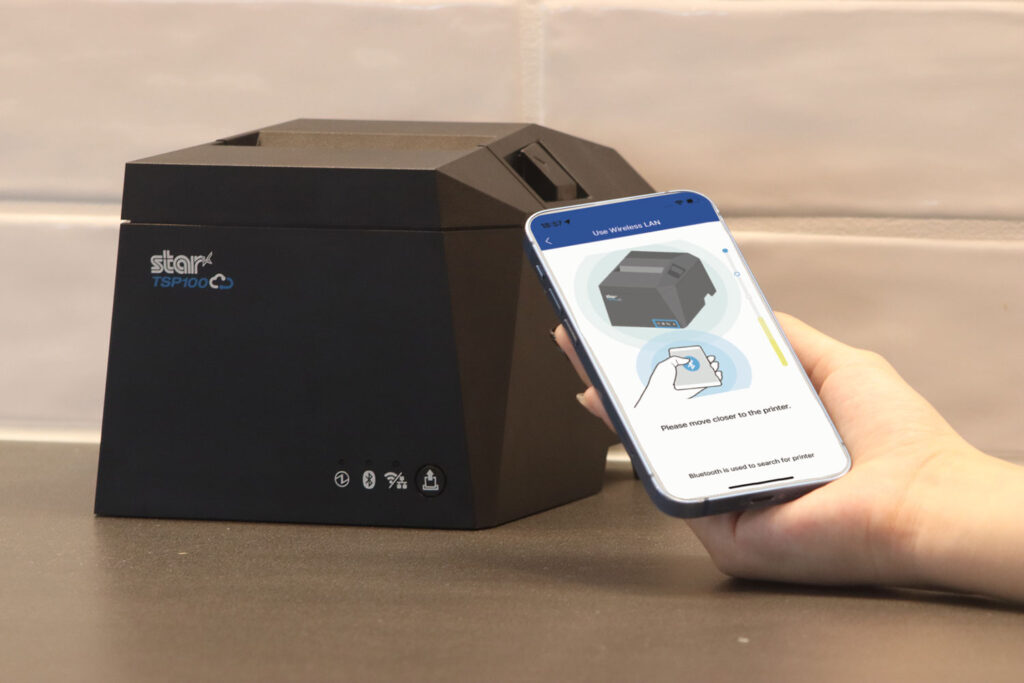

With USB-C, Ethernet LAN and USB-A, the TSP100IV SK offers versatile connectivity for PC, Tablet and Cloud-based systems with all major operating systems and devices (iOS, Windows, and Android). Additionally, the TSP100IV SK offers WLAN connectivity through the optional 2.4GHz and 5GHz dual band MCW10 wireless LAN module . Direct AOA sync and charge offers advanced technology for connecting Android devices, allowing communication and charging between the printer and your Android device for sustained, all-day operation. Star’s built-in CloudPRNT connectivity offers simple label printing from Cloud POS and online ordering systems with additional access to StarPrinter.Online and Star Micronics Cloud Services, ensuring a robust and future-proof printing solution.

Cost effective labelling

A cost effective and environmentally friendly solution, the TSP100IV SK prints on repositionable liner-free labels with no backing paper, reducing waste and environmental impact. Variable length labels ensure excess paper is not wasted on smaller print-outs.  With top margin reduction and horizontal/vertical print reduction, the TSP100IV SK ticks all the boxes for a more cost effective and sustainable printing solution. For supported media options and further details, please don’t hesitate to contact Star.

Free Star Label Builder Software

Unlock the full potential of your Star label printer by registering with Star Micronics Cloud Services and gain access to the free Star Label Builder. Whether you prefer to use existing templates or creating entirely customizable labels, this user-friendly platform allows you to seamlessly combine text, barcodes, and graphics for unique, repositionable label designs.

Product Features

  • Compact direct thermal linerless label printer
  • Low tack linerless re-stick media  *contact Star for supported media
  • 203dpi print resolution for high contrast text, graphics and barcodes
  • Up to 180mm/s print speed
  • Internal power supply
  • 40mm*, 58mm*, 80mm paper widths (*with supplied paper guide)
  • Up to 83mm paper roll diameter
  • Up to 86um paper thickness
  • Autocutter (partial cut)
  • Paper Taken Sensor for queuing labels
  • Cash drawer and buzzer support
  • USB-C, LAN, USB-A, WLAN (with optional MCW10 module)
  • Star CloudPRNT Technology for Cloud based software
  • Free Star Label Builder with Star Cloud Services
  • StarPrinter.Online managed CloudPRNT support
  • 4 year warranty

Best in class

Product Support

Specifications

View product specifications and technical information

Brochures

Download product brochures and data sheets

Models

View models and part numbers within the range

Product Support

Drivers, product manuals, SDK information and FAQs

You may also like

Related products

mC-Label3

Part of Star’s popular mCollection, the mC-Label3 combines high quality, versatile thermal label printing with superior connectivity for PC, Network, Tablets and Cloud based systems.

View Product

You're in safe hands

What our customers are saying

Enquire Now

Enquire About This Product

  • By submitting this form you agree with the storage and handling of your data by this website, in addition to being contacted by your provided email address and/or phone number. View our Privacy Policy

Contact Star

Need product support or help with integration? Contact the Star team today and they will be happy to help!

Specifications

TSP100IVSK Specifications

Max. Print Speed High speed: 180mm/sec (80/58mm)High speed: 100mm/sec (40mm
Resolution  203 dpi
Media Support Linerless labels * contact Star for supported paper
Auto Cutter Guillotine (Partial Cut)
Paper Width Standard 80mm (40mm or 58mm with included paper guides)
Paper Thickness 65 μm to 98 μm
Paper Roll Diameter
Max. 83mm
Top Margin
5mm (default), 11mm
Minimum Printing Length 24mm
Media Presentation Horizontal – top or vertical – front
Sensors Taken sensor, Paper end sensor, Cover open sensor
Paper Loading USB-C, Ethernet LAN, USB-A, Cash Drawer and Buzzer, Optional WLAN
Connectivity
  • USB-C
  • USB-A x 1 (AOA and Peripherals connectivity)
  • Ethernet LAN
  • Wireless LAN (with Optional MCW10 Wireless LAN Unit)
  • Cash drawer / buzzer connection
Power Supply Internal. Mains power cable included
Emulation StarPRNT
Reliability 60 million lines MCBF. Print Head 100km. Autocutter 2 million cuts.
IP22 splash resistant
Dimensions (W x D x H) mm Weight 140 (W) x 169 (D) x 123 (H) mm 1.3Kg
Software Star CloudPRNT, Star WebPRNT, Star PassPRNT, StarXpand SDK, StarPRNT SDK
Included Power Cable
USB Cable (A-C 1.8m)
LAN Cable (1.0m)
Paper Roll Guides for 58mm and 40mm paper
Simple Setup Sheet
Safety Guide
Options: 1D Barcode Scanner, MCW10 Wireless LAN Adapter, SCD222 Customer Display, mC-Sound Buzzer, BU01 Buzzer, CD4 Cash Drawer, CB2002 Cash Drawer, mUnite Tablet Stands



Models

Part Number Model Description
39473390 TSP143IV-UE SK GY E+U  Direct Thermal Linerless Label Printer, 40 – 80mm Label Widths, Cutter, USB-C, USB-A with Android AOA, Ethernet LAN, CloudPRNT, Grey Case, EU & UK Version, 24VDC Internal Power Supply
 Accessories
30907210 MCW10 CO2 Wireless LAN Adapter (Please check model and regions with Star)
39990030 SCD222U BLK Star SCD222 customer display black
39594010 MCS10 mC-Sound mC-Sound Melody Buzzer Alert with 16 Sounds (TSP100IV)
09990641 Buzzer 104S120LFA Buzzer Alert for TSP100
99250370 MaxStick MS214170PLUSD-12 12 roll pack MaxStick Restick Linerless 58 mm wide, 42.55m long, Diamond Pattern 12 Rolls/Case, Linerfree Label
99250355 MaxStick M318170PLUSD-12 12 roll pack MaxStick Restick Linerless 80mm wide, 52 metres long, Diamond Pattern 12 Rolls/Case, Linerfree Label
