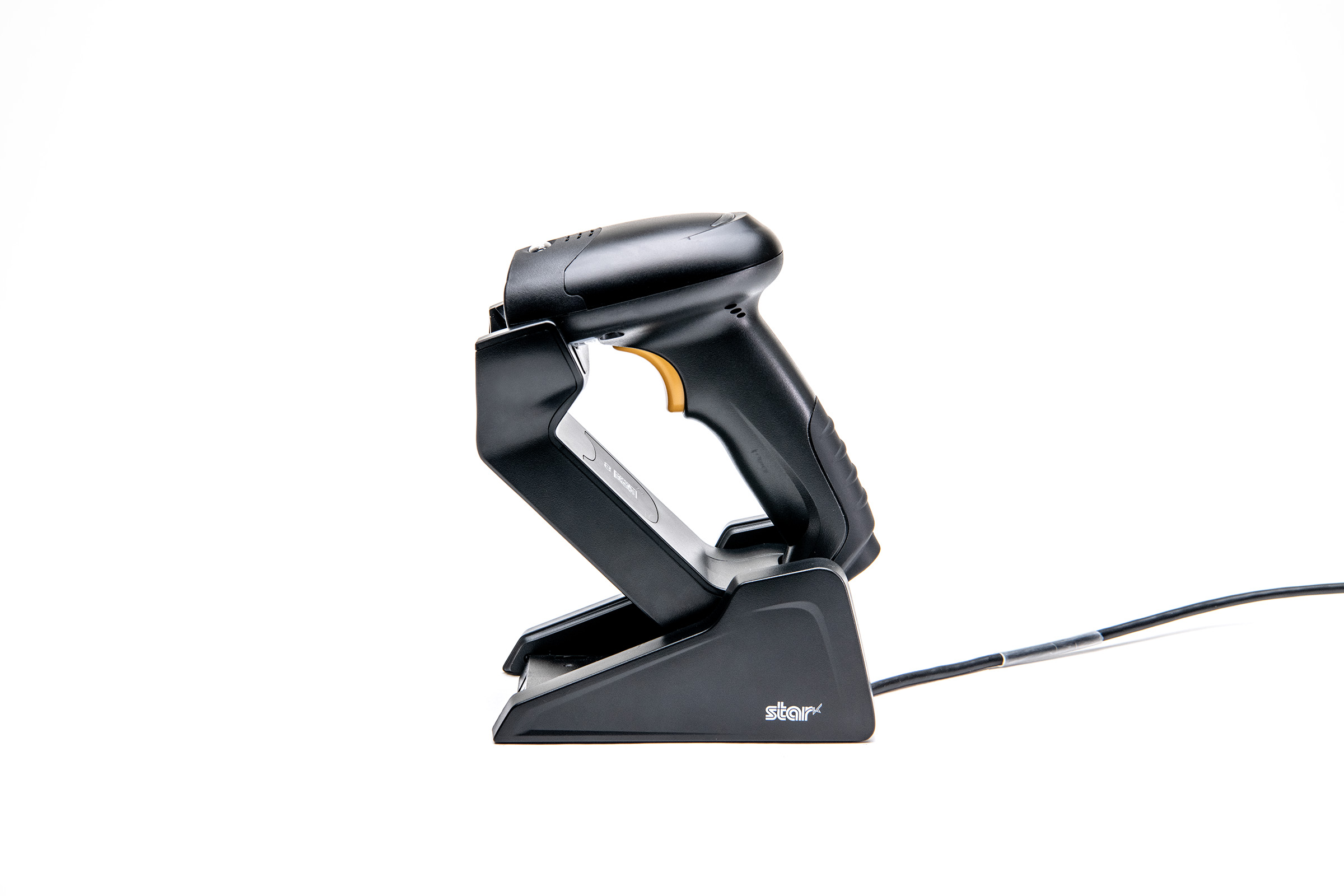

High Performance Handheld 1D/2D Bluetooth Barcode Scanner
The BSH-32B wireless Bluetooth handheld barcode scanner is designed for efficiency featuring a powerful CPU and high-resolution image sensor, enabling it to accurately read both 1D and 2D barcodes from multiple surfaces, including paper, uneven materials, or digital displays. With Bluetooth 5.0 connectivity, it supports up to 12 hours of continuous wireless scanning operation and can be simply charged using the charging cradle.
The BSH-32B features a powerful CPU and high-resolution imager, enabling it to accurately read both 1D and 2D barcodes from multiple surfaces, including paper, uneven materials, or digital displays.
Designed for sustained use, it comes with a 2400mAh battery, supporting up to 12 hours of continuous operation. The scanner uses the latest Bluetooth 5.0 technology for a stable wireless connection up to 50 meters, offering secure and reliable data transmission. Connects directly to the host device via Bluetooth low-energy or can be wirelessly connected via the charging cradle
The BSH-32B is as durable as it is functional. Its IP42-rated design and 1.2m drop-resistant housing can withstand the demands of dynamic retail environments. The scanner’s sleek black design and Star branding complements any modern POS system.
The BSH-32B is powered by a high-performance CPU, elevating your scanning experience to new heights. This advanced processor is specifically engineered to capture high-density, high-volume, and distorted barcodes with remarkable precision and speed.
The versatility of the BSH-32B Wireless Handheld Barcode Scanner extends to its seamless integration capabilities, offering a true plug-and-play experience across multiple operating systems. Whether you’re using iOS, Android, or Windows platforms, setting up the scanner is a breeze.
StarSCAN, included with all Star Micronics scanners, is a Utility compatible with iOS, Android, and Windows platforms. Users can tailor their scanning preferences and configure scanners to specific needs. The provided SDK allows for seamless integration with other Star products for POS applications.
View product specifications and technical information
Download product brochures and data sheets
View models and part numbers within the range
Drivers, product manuals, SDK information and FAQs
Need product support or help with integration? Contact the Star team today and they will be happy to help!
A combination of sustainability, design and advanced technology
Star House Peregrine Business Park, Gomm Road, High Wycombe, Bucks
HP13 7DL, UK
| Type | Wireless Handheld Barcode Scanner |
|---|---|
| Sealing | IP42 |
| Image Sensor | 1280×800 (megapixel) CMOS |
| Colour | Black |
| Resolution | ≥3mil |
| Symbologies – 2D | PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc. |
| Symbologies – 1D | EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128 |
| Connectivity/Interface | USB, Bluetooth 5.0 |
| Dimensions & Weight | 113(W)×71(D)×158(H)mm| 214g |
| Typical Depth of Field | EAN-13: 50 mm-495 mm (13 mil)Code 39: 85 mm-220 mm (5 mil)PDF 417: 70 mm-215 mm (6.7 mil)Data Matrix: 50 mm-220 mm (10 mil)QR Code: 20 mm-325 mm (15 mil) |
| Scan Angle | Pitch: ±55°, Roll: 360°, Skew: ±55° |
| Field of View | Horizontal 39°, Vertical 24° |
| Min Symbol Contrast | 25% |
| Drivers License Parsing | Can parse according to American Association of Motor Vehicle Administrators (AAMVA) October 2020 Specification. |
| Drop Resistance | Scanner: 1.2 m/3.9 ft Cradle: 1 m/3.3 ft |
| Communication Modes | Synchronous, asynchronous and batch mode |
| Communication Distance | 2400 mAh lithium-ion battery, 12 hours of continuous operation (scan once per 6 seconds), 4 hours expected charge time |
| Battery | 50m/164 ft (direct line of sight in open air) |
| Warranty | 2 Year |
| BSD-40U BLK | 37950900 | Desktop Barcode Scanner 1D/2D USB, Black |
| BSH-20U BLK | 37950920 | Handheld Barcode Scanner 1D/2D USB, Black |
| BSH-20B BLK | 37950940 | Handheld Wireless Bar Code Scanner 1D/2D Bluetooth, Black |
| BSH-32U BLK | 37950960 | Handheld Barcode Scanner 1D/2D, USB, Black |
| BSH-32B BLK | 37950970 | Handheld Wireless Barcode Scanner 1D/2D, Bluetooth, Black |
| BCR-MPOP1 SCANNER WHT | 39594100 | 1D USB Barcode Scanner for mPOP, TSP143IV, mC-Print3, mC-Print2, mC-Label3 White |
| BCR-MPOP1 SCANNER BLK | 39594110 | 1D USB Barcode Scanner for mPOP, TSP143IV, mC-Print3, mC-Print2, mC-Label3 Black |
