mCP30 3″ 80mm front feed, front-loading receipt printer with LAN, USB and Star CloudPRNT
mCP31L 3″ 80mm front feed, front-loading receipt printer with LAN, USB, Lightning USB with SteadyLAN, Star CloudPRNT and 2 Host USB Ports
mCP31LB 3″ 80mm front feed, front-loading receipt printer with Ethernet, LAN, Lightning USB with SteadyLAN, Bluetooth, Star CloudPRNT and 2 Host USB Ports
mC-Print: True Omni-Channel
POS Printing Solutions
Combining sophistication with high functionality, Star’s mC-Print2™ and mC-Print3™ receipt printers, part of Star’s new mCollection, have been designed to aesthetically match the sleek, modern design of tomorrow’s retail and hospitality environments.
The super-compact, front-feed receipt printers offer high quality printing and exceptional functionality with up to 5 interfaces including Star CloudPRNT as well as hub functionality, controlling select USB peripherals attached to the printer including Cash Drawer, Scanner and Customer Display.
The mC-Print3 is a compact, versatile 80mm receipt printer ideal for businesses operating traditional PC POS systems as well as those migrating to tablet and web-based POS.
With front feed and front paper loading and an IPX2 rated splash proof design, the mC-Print3 also ticks all the boxes for today’s expectations in kitchens, bars and other demanding hospitality environments including integration into self-service kiosks.
SteadyLAN™
Reliable Network Access for Tablet POS

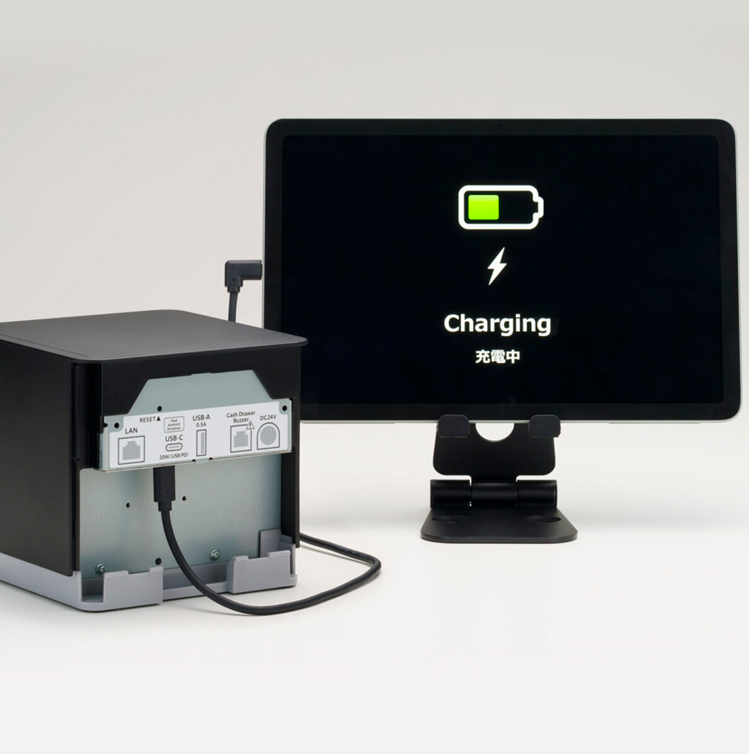

Star’s unique SteadyLAN patent pending technology is the market’s first POS printer solution to provide control of the printer and attached peripherals as well as Ethernet provision to tablets and mobile devices via the wired Ethernet port of the printer.
Simply by connecting a tablet to the mC-Print printer via the standard supplied USB cable and connecting the printer to the internet via a Wired LAN connection, the tablet is able to connect to the internet without WiFi communication. At the same time, the tablet can communicate with the printer via USB or LAN and the printer will also charge the tablet
For locations where Wi-Fi connectivity is not possible or unreliable, this new technology is a world first, providing the stability of a cabled LAN connection for tablet POS systems.
SteadyLAN is available on the following mC-Print models: mCP21LB, mCP31L, and mCP31LB.
Star CloudPRNT™
Star CloudPRNT provides intelligent printing from a web server from any network to Star printers anywhere in the world without the need for a local POS teminal enabling unparalleled flexibility for remote receipt and remote order printing using a standard receipt printer.
All of the mC-Print series is Cloud-ready. The MCP31L and MCP31LB feature 2 USB host ports for local or Cloud based peripheral control.
Compact and Stylish
Ideal for both traditional and tablet POS, the mC-Print3 is a compact 132 x 140 x 125mm with front feed and front paper loading for high quality 80mm receipts, barcodes and graphics. The mC-Print3 also offers significant paper saving with a top margin of just 2mm.
Its stylish cube design includes a “protected” control board, soft operating switches and IPX2 splash proof rating ideal for demanding hospitality environments and space-conscious retail outlets alike.
Outstanding Connectivity
With USB, Ethernet and Lightning USB interfaces as standard and the added option of a Bluetooth Interface, the mC-Print3 receipt printer can be integrated into any traditional or tablet POS application. Star’s unique iOS Lightning cable port provides device charging, dire
ct cable data transfer between Apple iOS devices and the printer and, using Star’s unique SteadyLAN technology, internet connection for the device via the Ethernet port of the printer. This simplifies set-up by eliminating the need for pairing and passwords whilst providing a consistent stable internet connection where WiFi is not possible or is intermittent.
Star’s built-in WebPRNT and CloudPRNT technology allows for simple connection to local network or cloud based systems. The mC-Print3 is even Star Cloud Services Ready with Digital Receipting and Internet Device Management already on board.
Hub functionality
The mC-Print3 offers up to 5 Interfaces + 2 USB Host Ports for Multiple Peripheral Hub Functionality.
With a single power source you can effectively build your own POS station simply by connecting a USB Scanner, Scales, Customer Display etc. to the mC-Print hub.
Star’s mC-Sound buzzer alert is available to match the mC-Print Series with a choice of up to 16 different pre-programmed alerts plus user defined audio for a range of environments including bar, kitchen, fast food and express order.
Seamless Integration
The mC-Print3 has never been simpler to set up. The mCollection driver set for Windows including OPOS and JavaPOS drivers are available to download from Star’s Global Support site. iOS and Android utility apps are on the respective App store or Google Play store, accessed via a QR code from the printer self-test, and the printers also have a web-based configuration.
On-line, responsive support manuals and diagnostics are available including animated LED indication making the mC-Print2 simple to install and configure from a mobile device.
For developers, the StarPRNTSDK for all popular Star products in one SDK is available from the Star Global Support Site.
Features
- Fast 250mm/second, 80mm front feed, front-loading thermal receipt printer
- Compact and stylish 132 x 140 x 125mm
- Up to 5 interfaces, Ethernet, USB, Lightning USB with direct connection to Apple devices and SteadyLAN, Bluetooth, Star CloudPRNT
- 2 x USB host ports with multiple peripheral hub functionality
- IPX2 splash proof design with soft operating switches, raised control board and insect prevention for hospitality applications
- Paper saving design with 2mm top margin
- Star Cloud Services ready with Star’s Digital Receipting / Internet device management
- Unique receipt decurl function for flat receipts plus paper end sensor
- New compact PS60C power supply included with EU and UK plugs
- Options include Star SCD222 Customer Display, Symbol / Zebra DS9208 2D Scanner, Star 1D Scanner, Star CB2002 cash drawer, Star mC-Drawer compact cash drawer, Star Kitchen Buzzer, Wall mount option
Star Cloud ServicesmC-Print3 Specifications
| Max. Print Speed | 250mm/sec. |
|---|---|
| Resolution | 203 dpi |
| No. of Columns | 64 (48) |
| Autocutter | Guillotine Autocutter – partial cut (centre). Cutter life 2 million cuts |
| Paper Width | 80mm (58mm with paper guide) |
| Paper Thickness | 0.053 – 0.075mm |
| Paper Roll Standard Option | Up to 83mm diameter |
| Print Width |
72mm |
| Emulation | StarPRNT |
| Sensors | Paper End, Near End, Cover Open |
| Interface | MCP30 Model Ethernet, USB, Cloud MCP31L model: Ethernet, USB, Lightning USB with SteadyLAN, Cloud + Hub (2 Host Ports) MCP31LB Model: Ethernet, USB, Lightning USB with SteadyLAN, Bluetooth, Cloud + Hub (2 USB host ports) |
| Print on Disconnection |
|
| Power Supply | New Compact PS60C Power Supply with EU and UK Power Cable included. Energy Star Certified. |
| ECO Features |
2mm Top Margin for paper saving |
| Software
Star Cloud Services |
StarPRNT SDK, WebPRNT SDK, PassPRNT, WebPRNT Browser, Windows Driver / Utility
Star Cloud Services Tools included: Digital Receipting, Device Management Tool, Customer Satisfaction Survey, Engage Now, Receipt Flip. |
| Reliability MCBF |
60 Million Lines, 2 Million Cuts |
| Dimensions (W x D x H) mm |
132 x 140 x 125mm |
Included in the box:Options: |
|
Image Gallery
Related Products
mC-Print2 2″, 58mm receipt printer
Symbol / Zebra 2D Scanner
Star 1D Scanner
Star CloudPRNT
SCD222 Customer Display
Star Cloud Services
Star Cash Drawers
mC-Sound Buzzer Alert
mC-Print Models
| Part Number | Model | Description |
| 39651090 | MCP31 L WT E+U | Thermal mC-Print3 3″ / 80mm LAN, USB, iOS USB with SteadyLAN™ , Star CloudPRNT™ + 2 USB Host Ports, cutter, white, EU & UK version, PS60C Power Supply included |
| 39651190 | MCP31 L BK E+U | Thermal mC-Print3 3″ / 80mm LAN, USB, iOS USB with SteadyLAN™ , Star CloudPRNT™ + 2 USB Host Ports, cutter, black, EU & UK version, PS60C Power Supply included |
| 39651290 | MCP31 LB WT E+U | Thermal mC-Print3 3″ / 80mm LAN, USB, iOS USB with SteadyLAN™ , Bluetooth, Star CloudPRNT™ + 2 USB Host Ports, cutter, white, EU & UK version, PS60C Power Supply included |
| 39651390 | MCP31 LB BK E+U | Thermal mC-Print3 3″ / 80mm LAN, USB, iOS USB with SteadyLAN™ , Bluetooth, Star CloudPRNT + 2 USB Host Ports, cutter, black, EU & UK version, PS60C power supply included |
| 39654090 | MCP30 WT E+U | Thermal mC-Print3 3″ / 80mm LAN, Star CloudPRNT, cutter, white, EU & UK version, PS60C power supply included |
| 39654190 | MCP30 BK E+U | Thermal mC-Print3 3″ / 80mm LAN, Star CloudPRNT, cutter, black, EU & UK version, PS60C power supply included |
| Accessories | ||
| 30781880 | PS60-A-24-BI PSU EU | 24VDC Mains Power Supply Unit. EU Power Lead |
| 30782130 | PS60A-24C PSU UK | 24VDC Mains Power Supply Unit. UK Power Lead |
| 39594100 | BCR-POP1 WHT 1D scanner | Star 1D Scanner white |
| 39594110 | BCR-POP1 BLK 1D scanner | Star 1D Scanner black |
| 37966450 | DS9208 2D white Scanner + USB Cable | DS9208 2D Scanner white |
| 37966440 | DS9208 2D black Scanner + USB Cable | DS9208 2D Scanner black |
| 39990020 | SCD222U WHT Customer Display | Star SCD222 white customer display |
| 39990030 | SCD222U BLK Customer Display | Star SCD222 black customer display |
| 39590150 | WB-MC30 mC-Print3 wall mount kit | Wall mount kit for mC-Print3 |
| 39594010 | MCS10 mC-Sound | mC-Sound Buzzer Alert with 16 Sounds for mC-Print Series |
| 09990641 | BUZZER 104S120LFA | Kitchen buzzer for mC-Print 2 |
| 55555563 | CB-2002 LC FN cash drawer ultra white | Star CB2002 cash drawer white |
| 55555562 | CB-2002 LC FN cash drawer eco black | Star CB2002 cash drawer black |
| 99250282 | STR808012/80 | 80mm paper rolls for mC-Print3, 80mm diamater, 80µm / 0.080mm weight, 20 rolls in box, 54.78m long |
| 99250283 | STR808012/65 | 80mm paper rolls for mC-Print3, 80mm diamater, 65µm / 0.065mm weight, 20 rolls in box, 65.60m long |
