TSP100IV

TSP143IV UE USB and Ethernet Receipt Printer

TSP100 Series Models and Part Numbers

TSP100IV  – Next Generation Printing

The new TSP100IV brings a unique new design for a truly revolutionary product. The quality and reliability of the popular TSP100 series has been fused with enhanced connectivity and specialist printing features for the very latest in point of sale and omni-channel commerce. For ever-changing retail and hospitality environments, the TSP100IV has every angle covered!



Smaller, Sharper, Better Connected

Super compact at 20% smaller than TSP100III models with an internal power supply the TSP100IV saves valuable counter space and can operate horizontally or vertically.  Integral wall mounting is included.



Developed for Tablet and Cloud POS

The TSP100IV features enhanced connectivity with Ethernet LAN and USB-C ports for Windows, Linux and MacOS devices as well as USB-A for connecting Android tablets and mobile devices.  With Android Open Accessory (AOA) support, compatible Android tablets and mobile devices or accessories such as scanner or display can communicate and charge directly via USB.  Wireless LAN connectivity is also available with Star’s optional MCW10 Wireless LAN adapter.

Star’s CloudPRNT technology is also integrated for printing directly from web based applications, ideal for retail Click & Collect orders or restaurant orders direct to the kitchen without the need for a local tablet or POS system.

Star Micronics Cloud Services is also included offering device monitoring and many other services.



Plug & Play

The Star TSP100IV has exceptionally easy “plug and play” installation with Star’s new intuitive Quick Set-up Utility, making it simple to incorporate into existing point of sale systems. It’s also compatible with previous TSP100 models.

Required Set-up accessories are included at purchase including Power cable, interface cables and 58mm paper guide as well Star’s 4 year warranty as standard.

Features

  • New generation POS receipt printers with enhanced connectivity

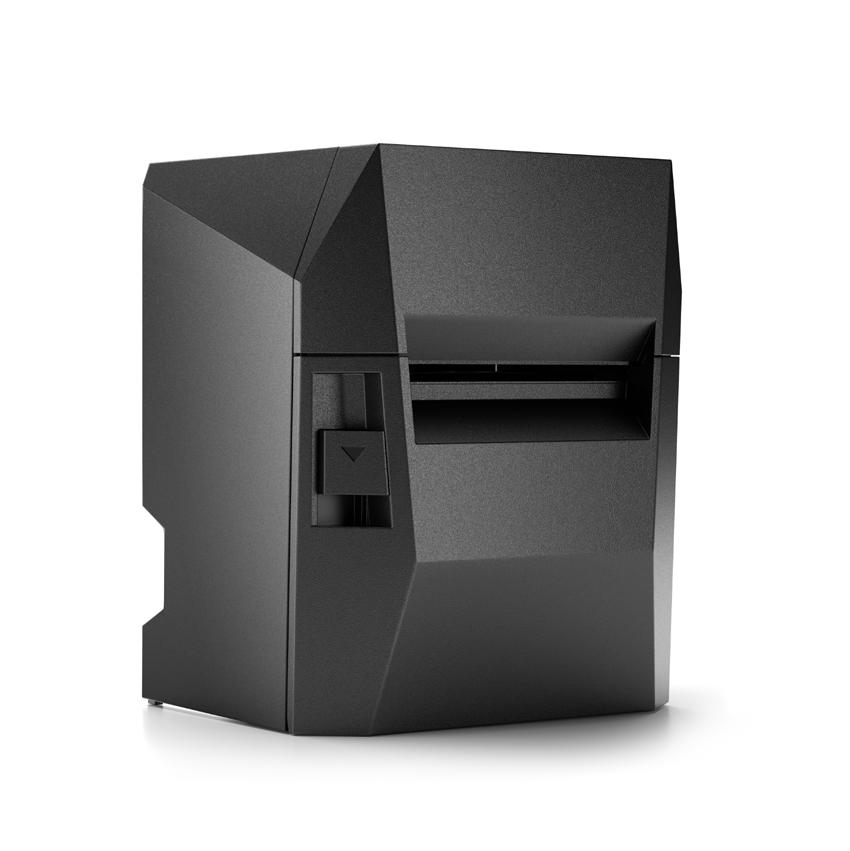

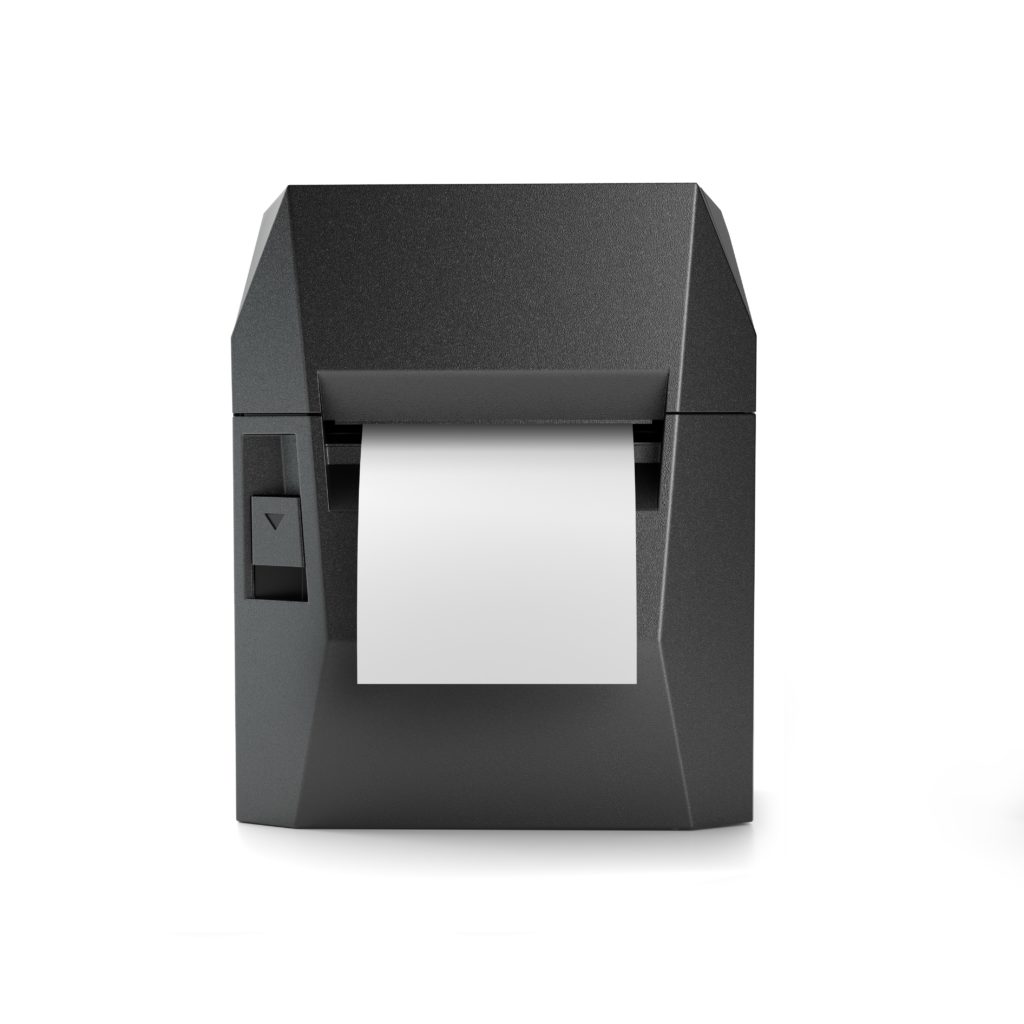

  • Compact design with internal power supply.  Horizontal or vertical operation.
  • 250mm/s print speed with high quality guillotine cutter
  • 80mm paper width  (58mm paper with included paper guide) and 49µm thin paper support
  • Ethernet LAN and USB-C  / USB-A connectivity
  • USB-A with Android Open Accessory (AOA) support for direct communication “Data & Charge” with compatible Android tablets and mobile devices or control of USB peripherals (scanner, display etc.).
  • Wireless LAN connectivity with optional Star MCW10 Wireless LAN adapter (region specific)
  • Integrated Star CloudPRNT technology for online receipt and order printing
  • All set-up accessories included in the box at purchase: Power cable, interface cables and paper guide
  • StarPrinter.online and new SMCS (Star Micronics Cloud Services) support
  • Plug & Play with Star Quick Set-Up Utility
  • 4 year warranty on all TSP100 series models

TSP100IV Specifications

Max. Print Speed 250mm/sec.
Resolution 203 dpi
No. of Columns 48 / 64 col. Depending on Paper Width
Autocutter Partial (Guillotine) Autocutter
Paper Width 80mm (58mm Using Paper Guide)
Paper Thickness 0.049mm – 0.085mm
Paper Roll Standard Option 83mm
Media Presentation Horizontal or vertical. Integral wall mount
Print Width  72mm (80mm Paper) 50.8mm (58mm Paper)
Sensors Paper End, Cover Open
Connectivity Ethernet LAN, USB-C, USB-A with AOA Android Data & Charge,
Star CloudPRNT, Wireless LAN with MCW10 option (contact Star for regions).
Additional Software
Windows Drivers, OPOS Driver, JavaPOS Drivers (Windows/Mac/Linux), CUPS Drivers (Mac/Linux), StarXpand SDK (React Native, iOS, Android)
StarPRNT SDK (iOS/Android/Windows Desktop/UWP), Star WebPRNT Browser (Android), Star PassPRNT (iOS/Android/UWP)
CloudPRNT SDK
Power Supply Internal with Power Cable included
Power Consumption 43 W Printing
3.5 W Standby
Energy Star Energy Star Certified
Reliability 60 Million Lines MCBF, Autocutter 2 Million Cuts
Dimensions (W x D x H) mm Weight

W140 x D169 x H123mm
1.3kg

Included



Options

  • Power Cable, USB Cable (USB-C to USB-A), Ethernet LAN cable, 58mm Paper Guide



  • MCW10 Wireless LAN Adapter (contact Star for regions), Buzzer (BU01-24-A), Melody Buzzer mC-Sound, Customer Display (SCD222U)

Image Gallery

Related Products






TSP100 Models

Part Number Model Description
39473090   TSP143IV UE GRY E+U Thermal, TSP143IV UE  80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB-C, USB-A, Ethernet Interface, CloudPRNT, Grey Case, UK & EU Version
39473190 TSP143IV UE WHT E+U Thermal, TSP143IV UE  80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB-C, USB-A, Ethernet Interface, CloudPRNT, White Case, UK & EU Version
39472730 TSP143IIU+ GRY EU Thermal, TSP143IIU+ futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, Classic USB Interface Printer, Grey Case, EU Version
39472740 TSP143IIU+ GRY UK Thermal, TSP143IIU+ futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, Classic USB Interface Printer , Grey Case,  UK Version
39472390 TSP143IIIU GRY E+U  Thermal, TSP143III futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB Interface with direct iPad / iPhone charging and data transfer, Grey Case, EU & UK Version
39472490 TSP143IIIU WHT E+U Thermal,TSP143III futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB Interface with direct iPad / iPhone charging and data transfer, Ultra White Case, EU & UK Version
39472090 TSP143IIILAN EU + UK Ultra White Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Ethernet Interface, Ultra White Case, EU and UK Version
39464990 TSP143IIILAN EU + UK Gry Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Ethernet Interface, Grey Case, EU and UK Version
39464790 TSP143IIIW EU + UK Gry Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, WLAN WiFi Interface, Grey Case, EU and UK Version
39464890 TSP143IIIW EU + UK Ultra White Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, WLAN WiFi Interface, Ultra White Case, EU and UK Version
39472190 TSP143IIIBI EU + UK Gry Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Bluetooth Interface, Grey Case, EU and UK Version
39472290 TSP143IIIBI EU + UK Ultra White Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Bluetooth Interface, Ultra White Case, EU and UK Version

 Accessories
30907210 MCW10 CO2 Wireless LAN Adapter (Please check model and regions with Star)
39990020 SCD222U WHT Star SCD222 customer display white
39990030 SCD222U BLK Star SCD222 customer display black
39594010 MCS10 mC-Sound mC-Sound Melody Buzzer Alert with 16 Sounds (TSP100IV)
09990641 Buzzer 104S120LFA Buzzer Alert for TSP100
39591100 Splash Proof Cover T100/650 Splash Proof Cover for TSP100IIU+ and TSP100III Series
39590530 VS-T650/100 (desk boot) Vertical Desk Stand for TSP100IIU+ and TSP100III Series

Cash Drawers
55555562 CB2002 LC FN black CB2002 Cash Drawer Flat Note ECO Black
55555563 CB2002 LC FN white CB2002 Cash Drawer Flat Note Ultra White
55555560 CB2002 LC UK grey CB2002 Cash Drawer Upright Note Grey
55555561 CB2002 LC FN grey CB2002 Cash Drawer Flat Note Grey
99250025 CB2002 Z Bracket CB2002 Z Bracket for mounting under counter
99250018 CB2002 Lockable Cover Lockable cover for removable CB2002 tray
