TSP100IIU+

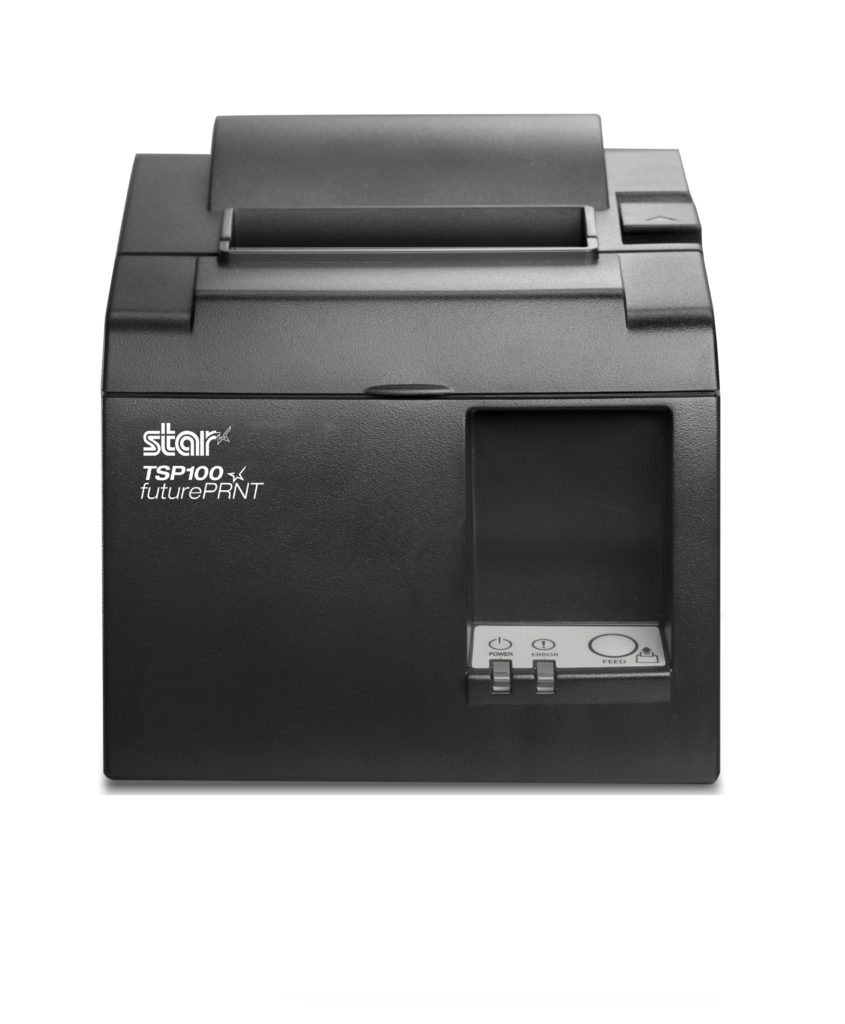

TSP143IIU+ USB receipt printer
Economical, reliable thermal printing

TSP143IIU+ USB receipt printer economical, reliable thermal printing

Star’s successful TSP100 range is known worldwide for its reliable, high quality printing.  With the new TSP143IIU+ we’ve introduced for an affordable, easy-to-use USB model with all the necessary features for modern EPOS.  The TSP143IIU+ is incredibly simple to set up, comes with built in power supply and includes everything you need in the box for simple set-up.

* TSP143IIU+ replaces TSP143IIUECO and is available only in EMEA region

With reliability you can count on and the performance you need, the TSP143IIU+ has been chosen by countless POS software companies as their best, go-to thermal receipt printer

Star’s futurePRNT free-of-charge, value added software included with the TSP100 Series far exceeds installation tools normally provided, enabling users to install high volume, custom set-ups. Software tools include Receipt Re-Design Tool, Auto-Text Reversal™, Coupon Marketing Tool, Journal and Multi-Copy Tool.

A 4 year warranty is included with all Star TSP100 printers giving complete peace of mind

Entry level thermal printing

Tried-and-true, the TSP143IIU+ is the industry’s standard receipt printer. With reliability you can count on and the performance you need, the TSP143III has been chosen by countless POS software companies as their best, go-to thermal receipt printer.

Change your receipts in an instant

The unique TSP100 futurePRNT software allows you to add logos and graphics and redesign your receipts in an instant.

Everything in the box

Everything you need to get started is included with the TSP100IIU+: Internal power supply with power cable, interface cable, paper guide for 58mm paper, set-up instructions and wall mounting kit.

Product Features

  • Fast 200mm/s USB receipt printer
  • 80mm paper width with paper saving features
  • Easy-Load “Drop-In & Print” paper loading
  • Internal power supply
  • All set-up accessories are included in the box at purchase
  • Unique futurePRNT software included
  • Autocutter as standard  (high quality guillotine cutter)
  • Energy Star compliant
  • 4 year limited warranty on all TSP100 futurePRNT series models
  • Options include splash cover, desk boot and buzzer alert
  • Available in EMEA region

Best in class

Product Support

Specifications

View product specifications and technical information

Brochures

Download product brochures and data sheets

Models

View models and part numbers within the range

Product Support

Drivers, product manuals, SDK information and FAQs

You may also like

Related products

You're in safe hands

What our customers are saying

Contact Star

Need product support or help with integration? Contact the Star team today and they will be happy to help!

Specifications

Max. Print Speed TSP143IIU+: 200mm/sec.
Resolution 203 dpi
No. of Columns 48 / 64 col. Depending on Paper Width
Autocutter Partial (Guillotine) Autocutter
Paper Width 80mm (58mm Using Paper Guide)
Paper Thickness 0.053 – 0.085 (TSP100III Series) with flat paper
Paper Roll Standard Option 83mm
Media Presentation User Selectable Paper Delivery Options withWall Mounting Kit included
Print Width 50.8mm (58mm Paper) 72mm (80mm Paper)
Sensors Paper End, Cover Open
Interface USB 2.0 Full Speed with Cable Supplied and “Virtual’’ Serial Port Emulator.
Additional Software
futurePRNT driver and Star Cloud Services including digital receipting
Power Supply Internal with Power Cable included
Power Consumption 1.6 Amps Printing 0.1 Amps Standby
Energy Star Energy Star Certified Internal Power Supply with Power Cable included
Reliability 60 Million Lines 2 Million Cuts
Dimensions (W x D x H) mm Weight 142 x 204 x 132 1.56kg – 1.76kg
Options
SP-TT100 Splash Proof Cover
VS-T100 Display Stand for Vertical Use
BUZZER BU01-24-A

Models

TSP100 Models

Part Number Model Description
39473090 TSP143IV UE GRY E+U Thermal, TSP143IV UE  80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB-C, USB-A, Ethernet Interface, CloudPRNT, Grey Case, UK & EU Version
39473190 TSP143IV UE WHT E+U Thermal, TSP143IV UE  80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB-C, USB-A, Ethernet Interface, CloudPRNT, White Case, UK & EU Version
39472730 TSP143IIU+ GRY EU Thermal, TSP143IIU+ futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, Classic USB Interface Printer, Grey Case, EU Version
39472740 TSP143IIU+ GRY UK Thermal, TSP143IIU+ futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, Classic USB Interface Printer , Grey Case,  UK Version
39472390 TSP143IIIU GRY E+U Thermal, TSP143III futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB Interface with direct iPad / iPhone charging and data transfer, Grey Case, EU & UK Version
39472490 TSP143IIIU WHT E+U Thermal,TSP143III futurePRNT, 80mm Wide Paper, 24VDC Internal Power Supply, Cutter, USB Interface with direct iPad / iPhone charging and data transfer, Ultra White Case, EU & UK Version
39472090 TSP143IIILAN EU + UK Ultra White Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Ethernet Interface, Ultra White Case, EU and UK Version
39464990 TSP143IIILAN EU + UK Gry Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Ethernet Interface, Grey Case, EU and UK Version
39464790 TSP143IIIW EU + UK Gry Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, WLAN WiFi Interface, Grey Case, EU and UK Version
39464890 TSP143IIIW EU + UK Ultra White Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, WLAN WiFi Interface, Ultra White Case, EU and UK Version
39472190 TSP143IIIBI EU + UK Gry Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Bluetooth Interface, Grey Case, EU and UK Version
39472290 TSP143IIIBI EU + UK Ultra White Thermal, futurePRNT, 80mm Wide Paper, 24VDC internal Power Supply, Cutter, Bluetooth Interface, Ultra White Case, EU and UK Version
 Accessories
30907210 MCW10 CO2 Wireless LAN Adapter (Please check model and regions with Star)
39990020 SCD222U WHT Star SCD222 customer display white
39990030 SCD222U BLK Star SCD222 customer display black
39594011 MCS10 mC-Sound mC-Sound Melody Buzzer Alert with 16 Sounds (TSP100IV)
09990641 Buzzer 104S120LFA Buzzer Alert for TSP100
39591100 Splash Proof Cover T100/650 Splash Proof Cover for TSP100IIU+ and TSP100III Series
39590530 VS-T650/100 (desk boot) Vertical Desk Stand for TSP100IIU+ and TSP100III Series
Cash Drawers
55555562 CB2002 LC FN black CB2002 Cash Drawer Flat Note ECO Black
55555563 CB2002 LC FN white CB2002 Cash Drawer Flat Note Ultra White
55555560 CB2002 LC UK grey CB2002 Cash Drawer Upright Note Grey
55555561 CB2002 LC FN grey CB2002 Cash Drawer Flat Note Grey
99250025 CB2002 Z Bracket CB2002 Z Bracket for mounting under counter
99250018 CB2002 Lockable Cover Lockable cover for removable CB2002 tray
