MCW10 Specifications
| Product Dimensions | 42.0 × 55.8 × 15.0 [mm] (WDH) |
|---|---|
| Product Weight | Approx. 28 g (Note: The above weight does not include accessories or attachments.) |
| Switches | Reset switch × 1 |
| LED lamps | Green × 4 |
| Connectors | USB Micro-B connector × 1 LAN connector (RJ45) × 2 (LAN1 (blue), LAN2 (black)) |
| Power Supply | Operating voltage 5V±5% Maximum rated current consumption 1A (Note: Supply power from a supported printer using the provided USB cable.) |
| Environmental Conditions | |
| Operating environment conditions | Operating temperatures : 5 to +40°C |
| Operating humidity | 10% to 90% RH (Must be no condensation.) |
| Storage environment conditions | Storage temperature : -20 to +60°C |
| Storage humidity | 10% to 90% RH (Must be no condensation.) * However, the worst-case values for a combination of high temperature and high humidity are 40°C and 90% RH (no condensation). |
| Reliability Specifications | |
| Vibration test (packaged conditions) | |
| Vibration directions : XYZ Vibration frequency : 7 to 100 Hz Sweep time : Logarithmic sweep, 15 minutes full reciprocating sweep Vibration acceleration : Constant 1.5 G Application time : 1 hour (total 3 hours) Packaged conditions : Minimum packaging After vibration, there shall be no problems with external appearance, internal appearance, or operation. |
|
| Drop test (packaged conditions) | |
| Drop height : 65 cm Drop sequence : 1 corner, 3 ridges, 6 sides Drop count : 1 each (total 10) Packaged conditions : Minimum packaging After dropping, there shall be no problems with external appearance, internal appearance, or operation. |
|
| Dust | Shall be at the level of an ordinary office and shall not interfere with operation. |
MCW10 Part Number
| Part Number
30907210 |
Model
MCW10 |
Description
WHT C02 WIRELESS LAN UNIT |

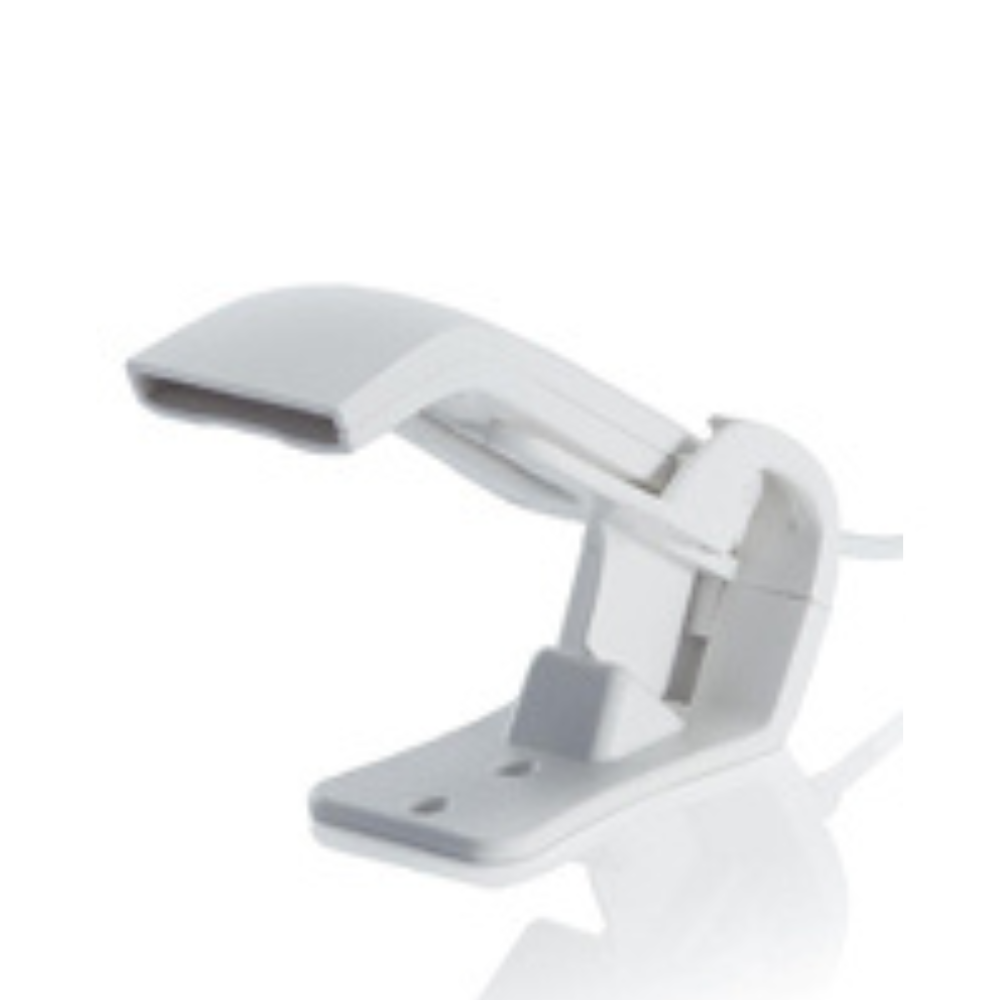

Star 1D Scanner

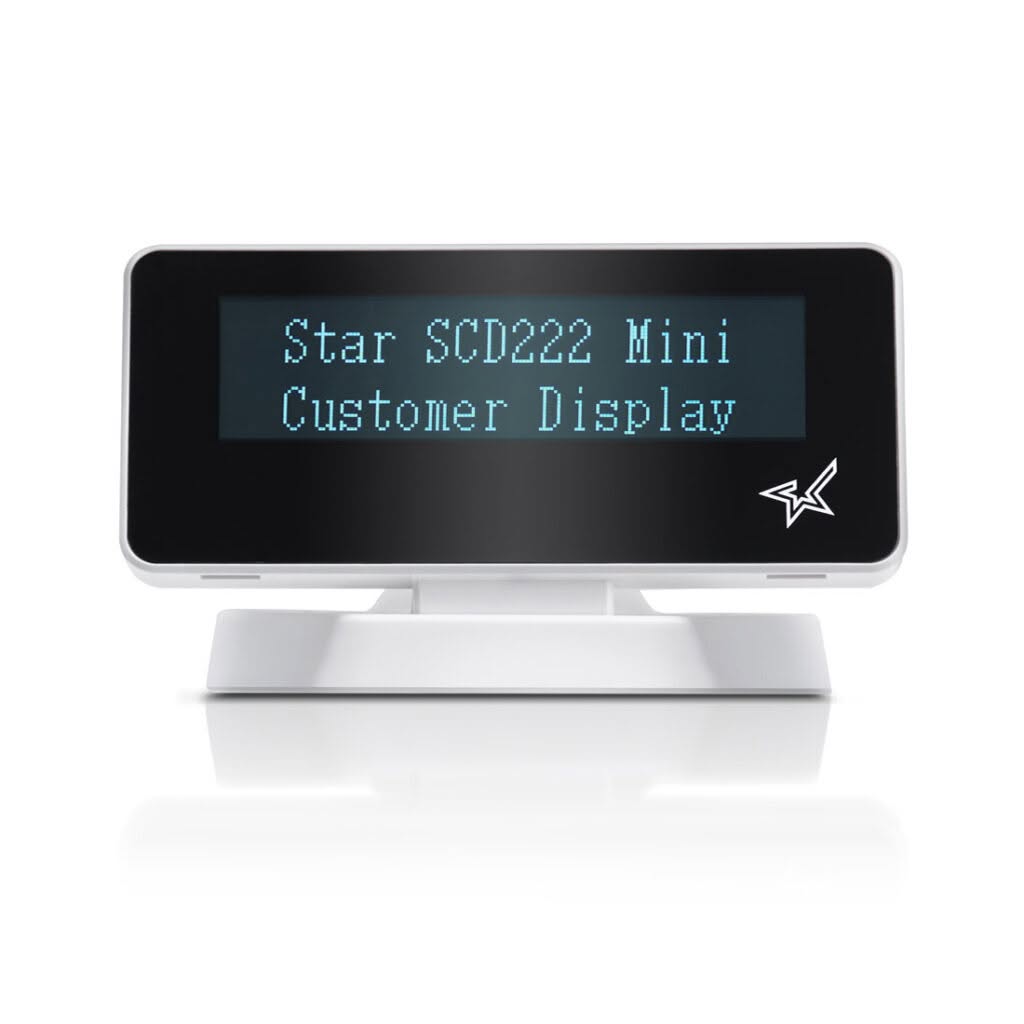

Star Customer Display

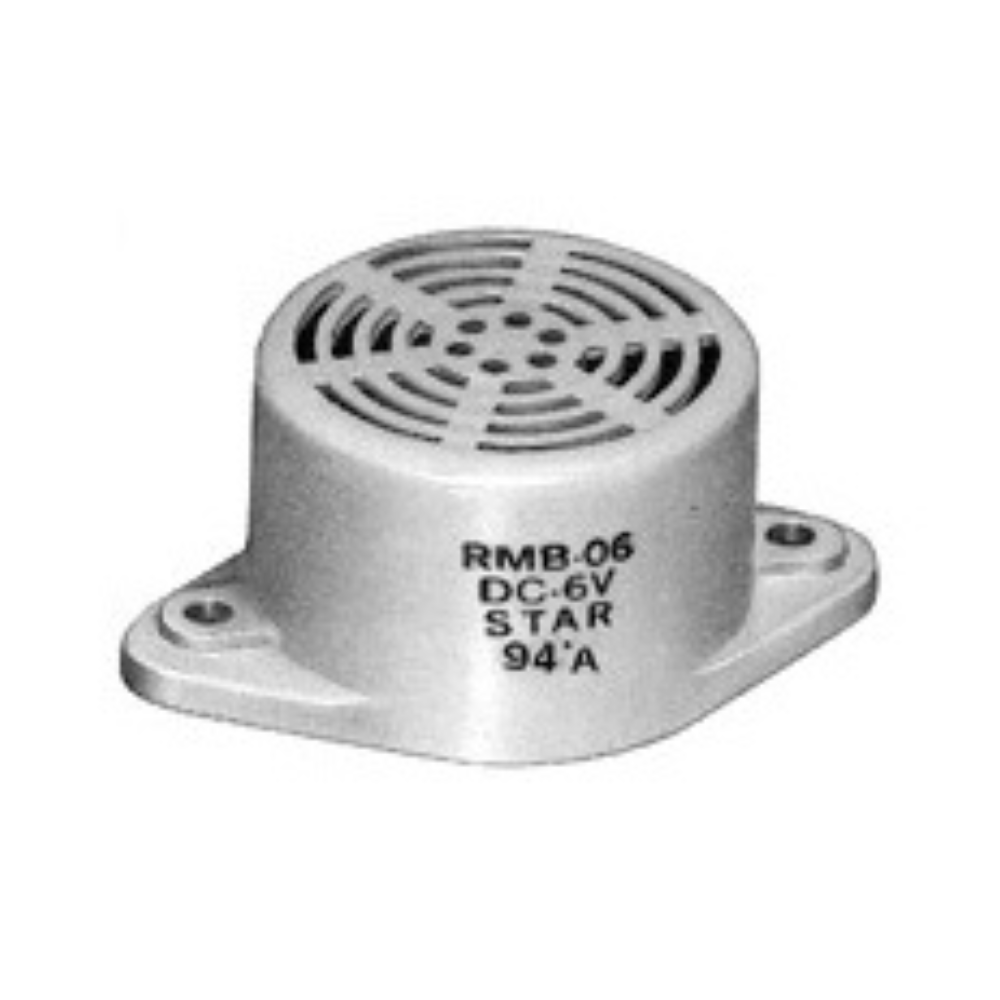

Star Buzzer Alert
