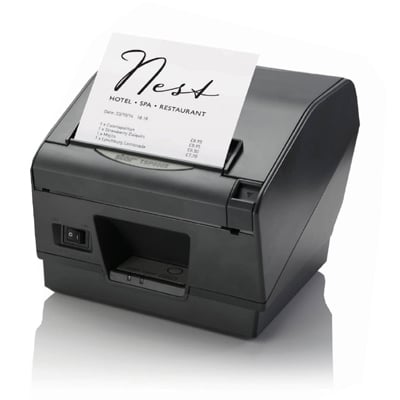

Unique and Versatile Thermal Printer

The TSP800II is a unique and versatile thermal printer capable of printing on wider than average media up to 112mm wide. Combined with a unique A4 raster driver capable of scaling an A4 image onto 112mm wide paper, the TSP800II can be integrated as a cost effective receipt, ticket or label printer or an easy-to-use and compact alternative to standard A4 invoice or report printers in retail and hospitality environments with significant paper and consumables cost savings.
Lower running costs – TSP800II costs 90 .47%* less to run than a typical laser printer Compact printer footprint – at only 180 (w) x 213 (d) x 148 (h) mm valuable desk space saved Faster to first page out and faster print speed than a typical laser at 180mm/second Greener solution – less paper wasted due to variable paper length so scaled A4 pages are not used for minimal print, less CO2 output and power usedStar’s TSP847II AirPrint Solution will provide, Ethernet & WiFi use with an Apple WiFi Alliance certified dongle (EDIMAX EW-7811UN) included in the box
AirPrint is an Apple technology providing easy mobile printing solutions for Apple iPad, iPhone, iPod and MacBook users on any private network. Using AirPrint, retailers can print without installing specific printer drivers allowing freedom of movement with the ability to print to Star’s TSP847II from anywhere within the business network system. AirPrint support comes preinstalled on iOS devices, allowing the user to discover and output to the desired printer.
Capable of scaling an A4 image onto 112mm wide paper, the TSP800II can be integrated as a cost effective receipt, ticket or label printer or an easy-to-use and compact alternative to standard A4 invoice or report printers in retail and hospitality environments with significant paper and consumables cost savings.

High Quality Ticket Printer

The TSP800II incorporates a black mark sensor and is capable of printing on to media up to 150gsm making it an ideal low cost label printer for shelf edge labels or a reliable, high quality ticket printer for wider format tickets. Wall mountable and with an external paper feed, the TSP800II has also been installed in many unattended kiosk environments for printing web print-outs and hotel check-in details.

Interface Options

Star’s intuitive design allows users to change its interface efficiently, allowing the upgrade of a POS system without the need to upgrade the printer. Interfaces include Serial, Parallel, USB, Ethernet and HI X Connect with WebPRNT and CloudPRNT. The TSP847II printer with HI X Connect interface with WebPRNT and CloudPRNT provides intelligent printing for Cloud retail, logistics and hospitality applications enabling unparalleled flexibility for remote receipt and remote order printing using a standard receipt printer. All TSP800II Series printers also offer free of change access to Star Cloud Services including Star’s Digital Receipt Service.

Perfect For Kiosk Printing

Wall mountable and with an external paper feed, the TSP800II has also been installed in many unattended kiosk environments for printing web print-outs and hotel check-in details.
  • Versatile 4.7lps Barcode, Label, Receipt & Ticket Printer with Autocutter
  • Unique 112mm paper width, 104mm / 4″ print width – on paper stock up to 0.15mm thick. (82.5 and 80mm paper rolls can also be accommodated using the optional paper guides)
  • Internal or External Paper Feed Paths (external for large capacity or security applications)
  • “Drop-In & Print”, easy paper loading
  • Compact Footprint (180 (w) x 213 (d) x 148 (h) mm) with vertical “Desk Boot” and Wall Mount options
  • Automatic scalable raster driver for immediate A4 reduction to A6. Ideal for desktop replacement printer, Internet café, hotel and kiosk use
  • Choice of interfaces including WebPRNT and CloudPRNT for mobile, web and cloud-based applications

Best in class

Product Support

Specifications

View product specifications and technical information

View Specifications

Brochures

Download product brochures and data sheets

View Brochures

Models

View models and part numbers within the range

View Models

Product Support

Drivers, product manuals, SDK information and FAQs

Get support

You may also like

Related products

TSP654IISK

80mm direct thermal linerless label printer with high quality cutter and Taken Sensor. USB, LAN, Serial, Bluetooth, WebPRNT and CloudPRNT versions

View Product

TSP700II

Versatile 80mm thermal receipt, barcode, label and ticket printer. USB, LAN, Bluetooth, WebPRNT and CloudPRNT Versions

View Product

You're in safe hands

What our customers are saying

Previous
Next

Contact the Star Team

Not sure which product to choose or need help with integration or support? The Star team will be happy to hear from you.

Contact Star

A combination of sustainability, design and advanced technology

Useful Links

Star EMEA HQ

Star House Peregrine Business Park, Gomm Road, High Wycombe, Bucks
HP13 7DL, UK

Facebook Twitter Youtube Instagram
  • Copyright © 2023 - Star EMEA

Specifications



Max. Print Speed 4.7lps
Resolution 203 dpi, 406 x 203 dpi selectable
No. of Columns A4 Print Capability on 112mm Paper with Auto Scalling Software
Autocutter Full or Partial Cut (Guillotine)
Paper Width 112mm paper rolls, 80mm Options with User Installable Paper Guide Option
Paper Thickness 0.065 – 0.15mm
Paper Roll Standard Option 100mm
Media Presentation User Selectable Paper Delivery Options with Mounting Bracket Option
Print Width 104mm
Sensors Black Mark, Paper End, Cover Open, Near End Horizontal & Vertical
Interface Serial, Parallel, USB and Non Interface versions.Plug-In Options: Serial (IFBD-HD03), 9-pin Serial (HN03), Parallel (HC03), Ethernet (HE07), HI X Connect (HI01X)
Unique Ethernet Print on Disconnection Feature Standard with IFBD-HE07 Option
Power Supply External Option PS60A
Power Consumption 2.0 Amps Printing 0.12 Amps Standby
Energy Star External, Energy Star Qualified PS60 (Optional)
Reliability 37 Million Lines 2 Million Cuts
Dimensions (W x D x H) mm Weight 180 x 213 x 148 1.9kg
Options
  • Buzzer
  • Plug-in Interfaces (see above)
  • “Plug-In” WebPRNT interface solution for simple Web printing
  • Star WebPRNT Browser Download option for TSP847IIBI from the App Store & Google Play
  • “Plug-In” HI X Connect interface with Star WebPRNT and Star CloudPRNT

Models

TSP800II Models

Part Number Model Description
39441830 TSP847II HIA GRY Thermal, 112mm Wide Paper, 24VDC (EU/UK PS60 PSU included), Cutter, Apple AirPrint Interface , Grey Case, EU  / UK Version
39441920 TSP847II HIA White Thermal, 112mm Wide Paper, 24VDC (EU/UK PS60 PSU included), Cutter, Apple AirPrint  Interface, White, EU  / UK Version
 39443600  TSP847II-24 W/O I/F WHITE Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, No Interface, White Case
 39443610  TSP847II-24 W/O I/F GRY Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, No Interface, Grey Case
 39443700  TSP847IIC-24 WHITE Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Parallel Interface, White Case
 39443710  TSP847IIC-24 GRY Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Parallel Interface, Grey Case
 39443800  TSP847IID-24 WHITE Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Serial Interface, White Case
 39443810  TSP847IID-24 GRY Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Serial Interface, Grey Case
 39443901  TSP847IIU-24 WHITE Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, USB Interface, White Case
 39443911  TSP847IIU-24 GRY Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, USB Interface, Grey Case
Accessories
30782120 PS60A-24C PSU EU Plug 24VDC Mains Power Supply Unit. EU Power Lead
30782130 PS60A-24C PSU UK Plug 24VDC Mains Power Supply Unit. UK Power Lead
39590110 WB-T800 TSP800II Wall Bracket
39590500 VS-T800 TSP800II Vertical Stand Desk Boot
99250361 DONGLE HIX EW7811V2 WiFi dongle for HI01X/HI02X
39607041
39607200
39607211
39607804
39607820		 IFBD-HI01X
IFBD-HD03 D
IFBD-HC03 C
IFBD-HE07 Ethernet
IFBD-HU07 USB		 Plug-In HI X Intelligent Interface with Star WebPRNT and Star CloudPRNT
Plug-In Serial Interface
Plug-In Parallel Interface
Plug-In Ethernet LAN Interface
Plug-In USB Interface
CB-2002 Cash Drawer
55555558 CB-2002 LC UN Cash Drawer White CB-2002 Cash Drawer , White, 8 upright notes & 8 coin slots & cheque/large slot, Suitable for TSP100, TSP650, TSP700, TSP800
55555560 CB-2002 LC UN Cash Drawer New Grey CB-2002 Cash Drawer, New Grey, 8 upright note sections, 8 coin slots and cheque/large slot
Suitable for TSP700, TSP800
55555561 CB-2002 LC FN Cash Drawer New Grey CB-2002 Cash Drawer, New Grey, 8 flat note sections, 8 coin slots and cheque/large slot
Suitable for TSP700, TSP800
