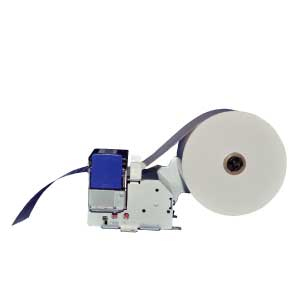

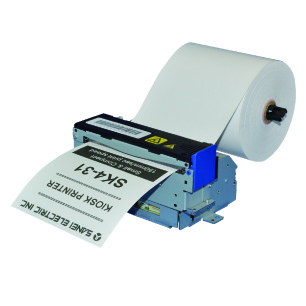

Sanei SK4 Series

Entry level 2″ and 3″ open frame kiosk printers

Compact, Open Frame Kiosk Printers

The SK4 series 2″  / 58mm and 3″  / 80mm open frame kiosk printer series provide entry level kiosk printing with a fast print speed of 150mm/sec with 203 dpi resolution.

Available in standard format (horizontal orientation) with and without presenter, the SK4-21/31 series offers a quick and reliable two or three inch wide printing solution designed for servicing kiosks which provide information-intensive reports and receipts.

The new SK4-21 and SK4-31 Series offer a compact and versatile entry level solution for small space applications with a choice of 3 paper roll positions for simpler installation.

Easy to integrate, the SK4 series features two different models to accommodate any application: The SK4-21 (2 inch print width) and
the SK4-31 (3 inch print width). Both models are available with or without Presenter unit. Other option items include LED bezel and Anti-jam bezel.

Dual interface

Dual USB and Serial Interface

Versatile integration

Paper can be mounted in 3 different positions

Multiple options available

A range of bezels, presenters and paper holders available

Product Features

  • Compact and lightweight 2″  / 58mm and 3″ / 80mm entry level printers
  • Up to 150mm/sec print speed
  • Easy to integrate
  • 3 paper positions
  • Dual serial and USB interface
  • Selectable full or partial cut
  • LED Bezel option and Anti-paper Jam Bezel option available
  • Windows Utility driver with Remote Status monitor function available

Best in class

Product Support

Specifications

View product specifications and technical information

Brochures

Download product brochures and data sheets

Models

View models and part numbers within the range

Product Support

Drivers, product manuals, SDK information and FAQs

You may also like

Related products

mC-Print3

Compact 3″ 80mm front feed, front paper loading thermal receipt printer with up to 5 interfaces plus hub functionality

View Product

TSP700II

Versatile 80mm thermal receipt, barcode, label and ticket printer. USB, LAN, Bluetooth, WebPRNT and CloudPRNT Versions

View Product

You're in safe hands

What our customers are saying

Contact Star

Need product support or help with integration? Contact the Star team today and they will be happy to help!

Specifications

Description SK4-21 2 inch entry level open frame kiosk printer
SK4-31 3 inch entry level open frame kiosk printer
Max Print Speed  150mm/s
Resolution 203 dpi
No. of Columns SK1-41A Max 104 col (8 x 16)
Autocutter Full or Partial cut(Command selectable)
Paper Width SK4-21/31: 58mm/80mm
Paper Thickness SK4-21/31: 0,059 – 0,085mm
Paper Roll Standard Option SK4-21 / SK4-31: Max 83mm
Media Presentation Presenter unit – standard or LED
Print Width SK1-41: 72/80/104mm
Sensors Near End
Reflection (PE/BM) & Gap
Interface  RS232C Serial + USB2.0
Power Supply
Power Consumption 60 W printing
1,68 W Standby
Energy Star SK1-41: External, SA1-27A240-1 (optional)
Reliability Print head: 100km, 100milion pulses

Auto cutter: 1,000,000 cuts (specified paper)

Dimensions (W x D x H)mm
Weight (without interface cover)
SK4-21
86(W) x 150(D) x 81.7 (H) mm
weight 356g

SK4-31
106(W) x 150(D) x 81.7 (H) mm
weight: 410g

Document Capture (Anti-litter mode) Document Capture

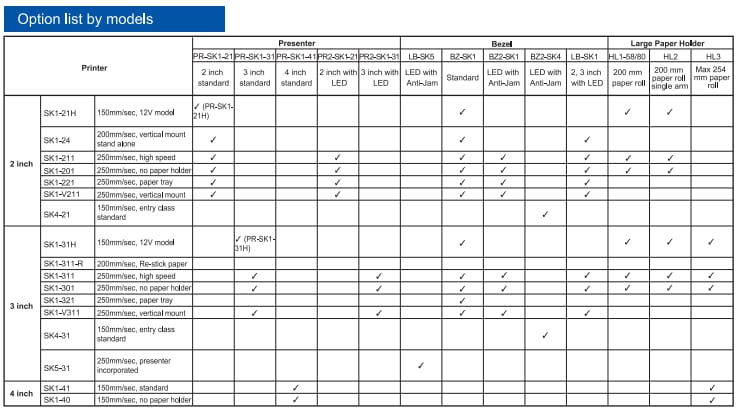

Options
  • Anti-paper jam Bezel
  • LED Bezel
  • Presenter
  • LED Presenter

Models

Part Number Model Description

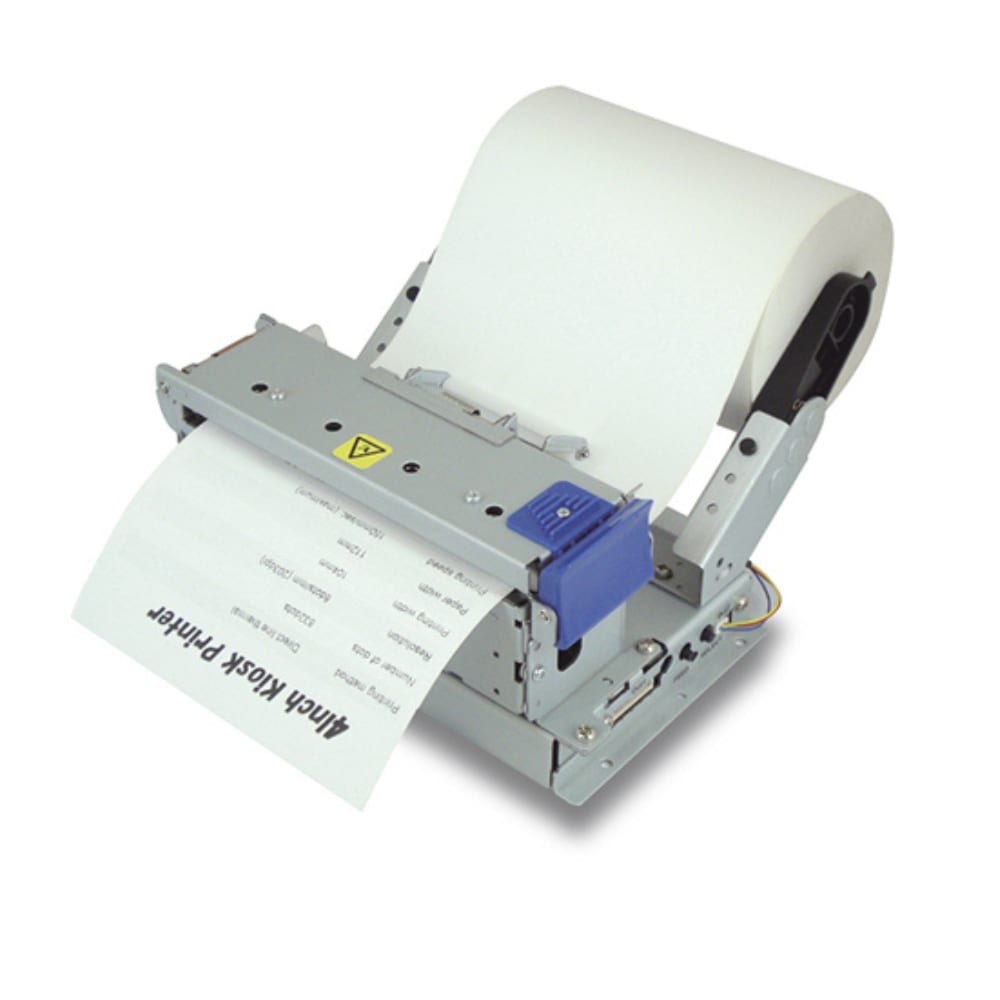

37963702 SK1-41ASF4-LQ-M-ST 4″ Open Frame Kiosk Printer with paper holder
37964594 SK1-41ASF4-LQP-M-ST 4″ Open Frame Kiosk Printer with paper holder and presenter
Accessories
37963490 BZ-SK1-1 Bezel Black Standard Bezel
37963710 BZ-SK1-2 Bezel Black Standard Bezel with Separator
37965520 LB-SK1-1 LED Bezel LED Bezel with Sensor (Blue & Red)
37967920 LB-SK1-1G LED Bezel LED Bezel with Sensor (Green & Red)
37969130 BZ2-SK1 BEZEL LED anti-jam Bezel for SK1-211/311 Series (Green & Red)
37969140 BZ2-SK4 BEZEL LED anti-jam Bezel for SK4-21/31 Series (Green & Red)
37966250 HL3-SK141 Large Paper Holder Large Paper Holder for 4″ Kiosk max 254mm
37967970 HL4-SK140 Large Paper Holder Large Paper Holder for 2″, 3″ and 4″ Kiosk max 254mm
37950030 CB-SK1-D7 Cable Power Cable for internal power supply connection (Molex)
37967980 CB-SK1H-D1 Cable Power Cable for 12V Kiosk Printers
37950040 CB-SK1-D8 Cable Power Cable with Hosiden Connector (Molex) for use with Star PS60
37950050 CB-SK1-D9 Power conversion cable (Molex to Hirose)
30782120 PS60A-24C PSU EU Plug Star 24VDC Mains Power Supply EU Power Lead
30782130 PS60A-24C PSU UK Plug Star 24VDC Mains Power Supply UK Power Lead
37967330 CB-SK1-S4 Cable Serial Cable for all SK1 models
37963743 SA4-27A24O-3 PSU for SK1-41 series (Molex)
37969030 HL1 NE Sensor Cable (46CM) Sensor Cable (46CM)
37963730 HL02 – Paper Extension Arm Paper Extension Arm
