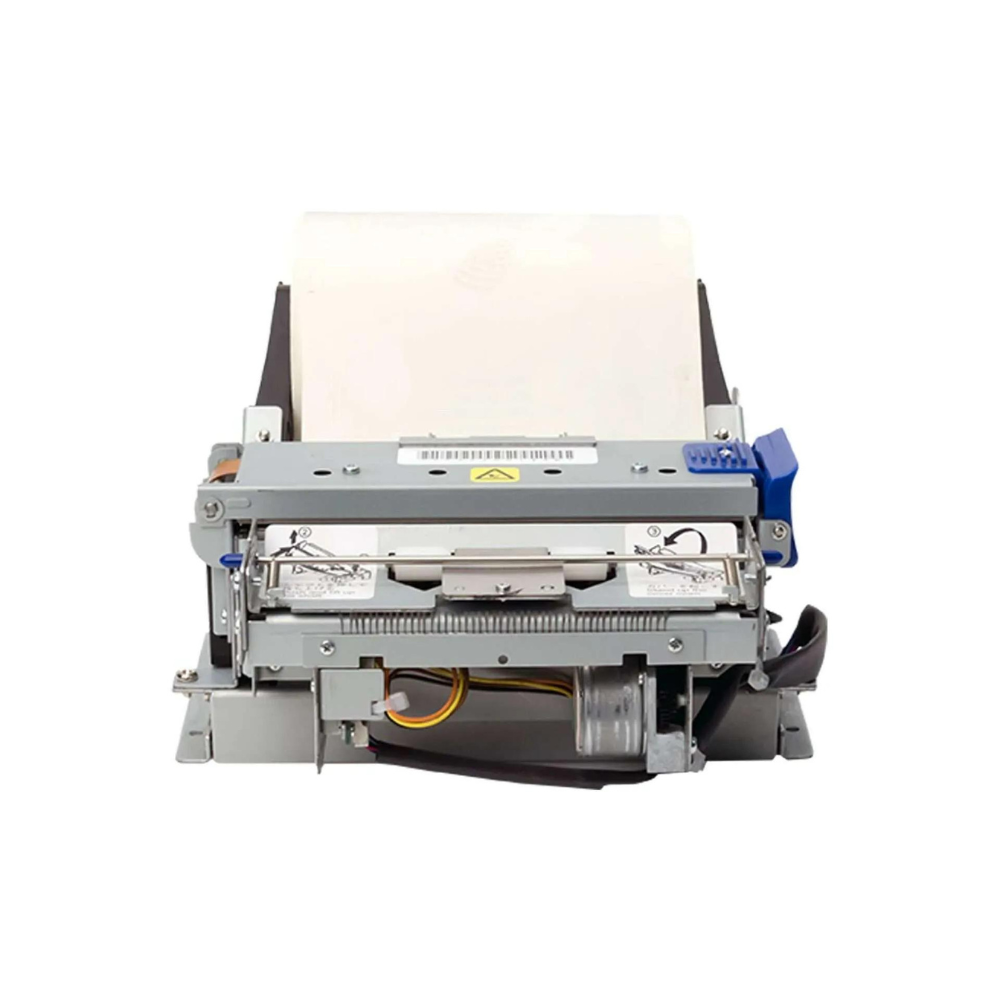

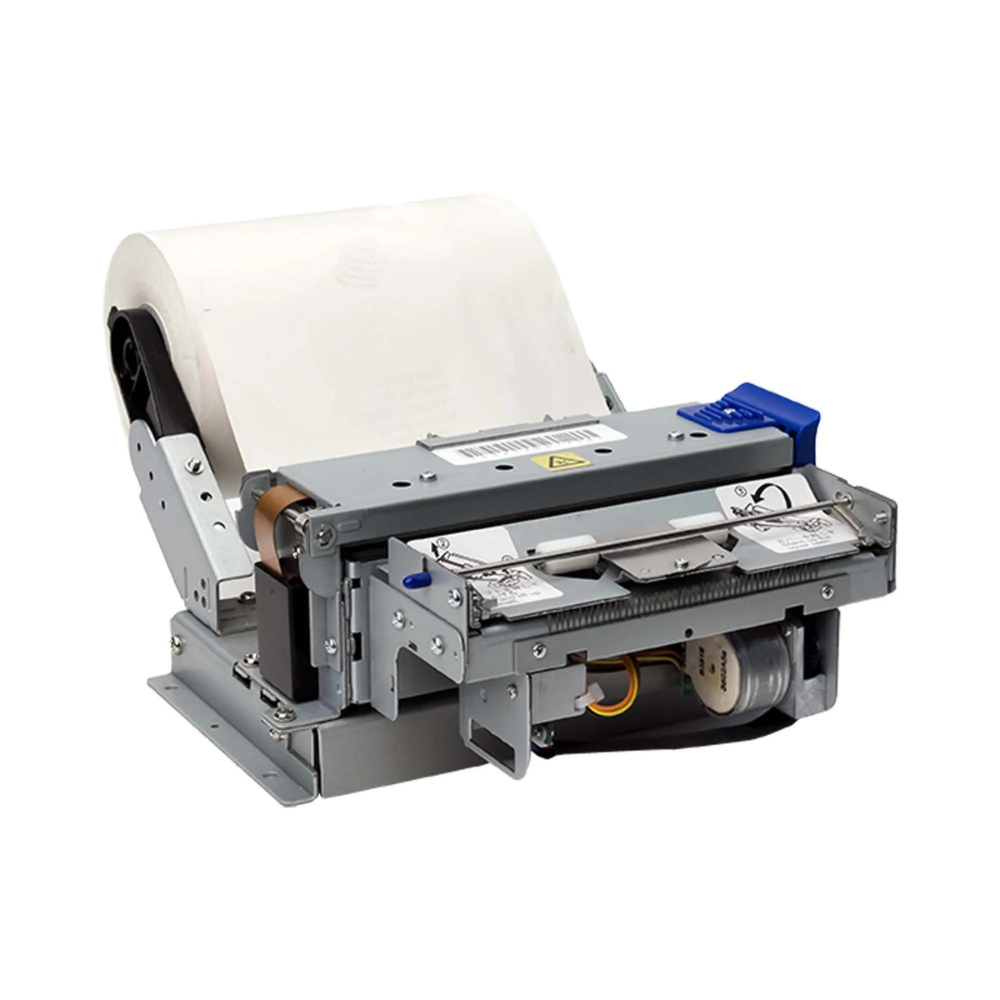

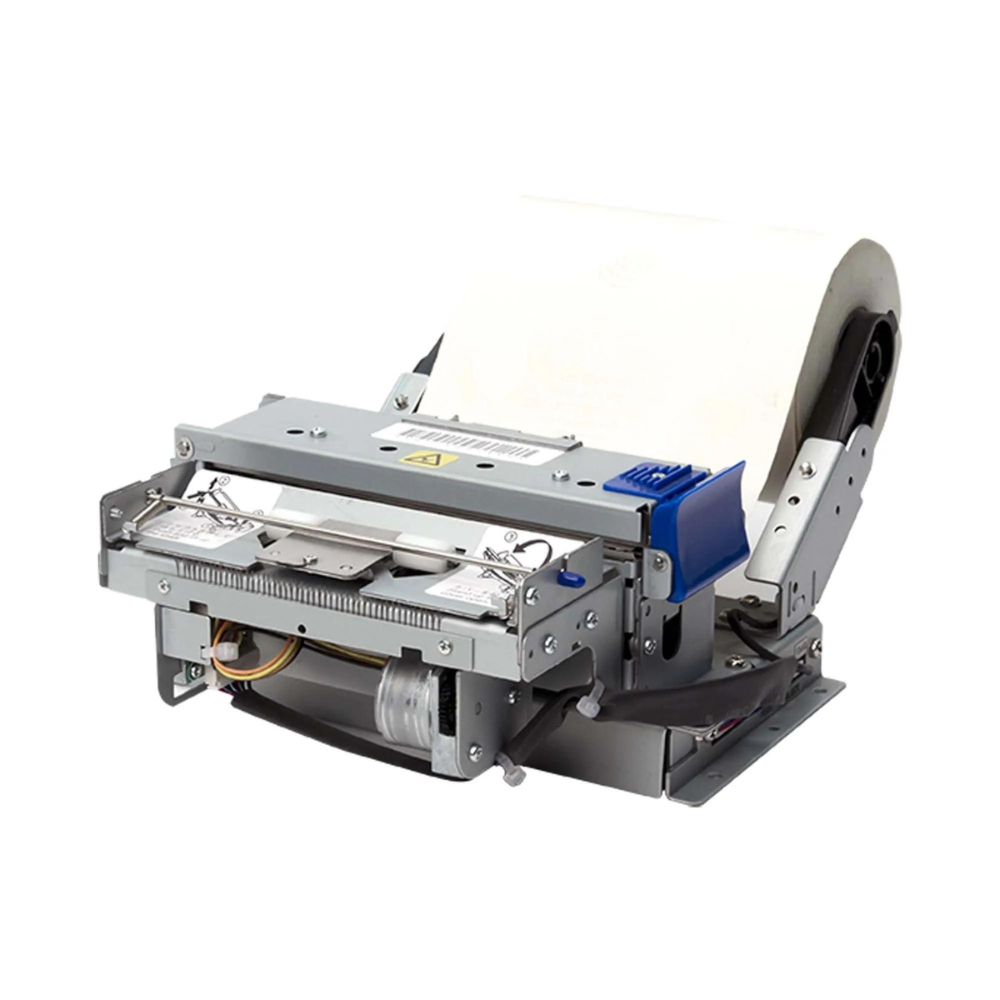

Sanei SK1-41 Series

Compact, 4″ / 112mm wide format open frame kiosk printer

Dependable and low maintenence

The SK1-41 4″ / 112mm kiosk printer series provides dependable, low maintenance printers that have a fast print speed of 150mm/sec with 203 dpi resolution.

The thermal kiosk printers come in standard format (horizontal orientation), with or without presenter.

All SK1-41 models come with RS-232C and USB interfaces which integrate with a wide ranage of commonly used kiosk solutions.

With 4″  / 112mm paper width (104mm print width) the SK1-41 printer is capable of printing information heavy reports and receipts with a print speed up to 150mm/s

4" / 112mm Low Maintenance Printer

The wide-format 4″ / 112mm SK1-41 thermal self-service kiosk printer is designed for servicing kiosks which provide information-intensive reports and receipts. Easy to integrate, the SK1-41 series features two different models to accommodate any application: The SK1-41ASF4-LQ (featuring a standard paper roll holder) and the SK1-41ASF4-LQP (featuring a standard paper roll with presenter).

Part of the Star Micronics Kiosk Printer Series

The SK1-41 is a part of the large range of Star Micronics kiosk printers. With compact format and multiple optional accessories such as bezels, presenters, large paper roll holders, and more, Star’s kiosk printers are ideal for self service and self-checkout applications in restaurants, retail stores and transportation.

Dependable Low Maintenance

The SK1-41 4″ / 112mm kiosk printer series provides dependable, low maintenance printers that have a fast print speed of 150mm/sec with 203 dpi resolution. The thermal kiosk printers come in standard format (horizontal orientation), with or without presenter. All SK1-41 models come with RS-232C and USB interfaces which integrate with many commonly used kiosk solutions.

Product Features

  • Wide format 4″ / 112mm kiosk mechanism
  • High quality 203dpi print resolution
  • Prints receipts and tickets
  • Max 150mm/sec high-speed printing
  • Up to 120mm diameter paper roll as standard with 250mm diameter option
  • Auto-loading function
  • Selectable partial or full cut
  • Dual serial and USB interface
  • Black Mark  / gap sensor for labels
  • StarPRNT or ESC/POS with Windows, Linux and Android drivers
  • Wide variety of bezels, presenters and paper roll holders



  • Easy to integrate

Best in class

Product Support

Specifications

View product specifications and technical information

Brochures

Download product brochures and data sheets

Models

View models and part numbers within the range

Product Support

Drivers, product manuals, SDK information and FAQs

You may also like

Related products

TSP800II

Unique 112mm wide format thermal receipt, barcode, label and ticket printer. USB, LAN, Bluetooth, Apple AirPrint, WebPRNT and CloudPRNT Versions

View Product

You're in safe hands

What our customers are saying

Enquire Now

Enquire About This Product

  • By submitting this form you agree with the storage and handling of your data by this website, in addition to being contacted by your provided email address and/or phone number. View our Privacy Policy

Contact Star

Need product support or help with integration? Contact the Star team today and they will be happy to help!

Specifications

Description SK4-21, SK4-31 Entry Level no Presenter
SK1-211, SK1-311 no Presenter
SK1-211LQW, SK1-311LQW, LED presenter
SK1-211LQP, SK1-311LQP, with presenter
SK1-V211, SK1-V311  – vertical mount
SK1-V211LQP, SK1-V311LQP – presenter and vertical mount
SK1-221 / SK1-321 Clamshell
SK1-41A-L no Presenter
SK1-41A-LP with Presenter and Label Support
SK1-21-H 2″ 12V / SK1-31-H 3″ 12V
Max Print Speed SK1-211 / SK1-311 / SK1-221 / SK1-321 Series = 250 mm/s
SK1-41  / SK4 Series  = 150mm/s
Resolution 203 dpi
No. of Columns SK4-21 / SK4-31
SK1-211/221 Max. 56 col
SK1-311/321 Max. 80 col depending on Paper Width
SK1-41A Max 104 col (8 x 16)
Max 69 col (12 x 24)
Depending on Paper Width
Autocutter Full or Partial (Guillotine).
Full only with Presenter
Paper Width SK4-21 / SK4-31 58mm/80mm
SK1-211/221: 54/56mm
SK1-311/321: 58/60/80/83mm
SK1-41: 80/83/112mm
Paper Thickness SK4-21 / SL4-31 0,059 – 0,085
SK1-211, SK1-311:0,059 – 0,15 mm
SK1-41 0,059 – 0,12mm
Paper Roll Standard Option Standard: 120 mm
with Option: 200 mm
SK4-21 / SK4-31: Max 83mm
Media Presentation SK1-211 / 311 / 41: Presenter with Document Capture (not for labels).
Plastic or Flashing Bezel options.
SK4-21 / SK4-31: LED and Anti-jam Bezel options
Print Width SK1-211: 54 /56mm
SK1-311 : 54/56/72/80mm
SK1-41: 72/80/104mm
SK4-21: 54mm
SK4-31: 72mm
Sensors Near End
Reflection (PE/BM) & Gap
(SK4-21 / SK4-31: Near End, Paper End, Black Mark)
Interface  Serial, USB as standard
Power Supply SK1-211 / SK1-311 / 221 / 321 / SK4-21 / SK4-31 : External Option PS60A
with CB-SK1-D3 cable
SK1-41: External Option SA1-27A240-1
Power lead not supplied
Power Consumption 60 W printing
1,68 W Standby
Energy Star External, Energy Star Qualified PS60A (optional)

SK1-41: External, SA1-27A240-1 (optional)

Reliability 60 million lines
2 million cuts (SK1-211 and SK1-311 series) 1.5 million cuts (SK1-41 series) 1 million cuts (SK4-21 / SK4-31)
Dimensions (W x D x H)mm
Weight (without interface cover)
SK1-211:
Paper Holder position 83mm  – 104 x 129.2 x 73.6mm: 525g
Paper Holder position 102mm – 104 x 137.3 x 79.5mm: 525g
Paper Holder position 120mm – 104 x 145.5 x 85.4mm: 525g*
* Factory setting
SK1-311:
Paper Holder position 83mm: 127 x 129.2 x 73.6mm : 630g
Paper Holder position 102mm: 127 x 137.3 x 79.5mm: 630g
Paper Holder position 120mm: 127 x 145.5 x 85.4mm: 630g*
*Factory setting
SK1-221 104 x 140,3 x 69,7 mm 580g
SK1-321: 128 x 174,5 x 74,2mm 730g
SK1-41:
Paper Holder position 83mm: 160.9 x 143.1 x 76.3mm : 885g
Paper Holder position 102mm: 160.9 x 151.2 x 82.2mm: 885g
Paper Holder position 120mm: 160.9 x 159.3 x 88.1mm: 885g*
*Factory setting
SK4-21:
86 x 150 x 81.7: 356g
SK4-31:
106 x 150 x 81.7: 410g
Document Capture (Anti-litter mode) Document Capture

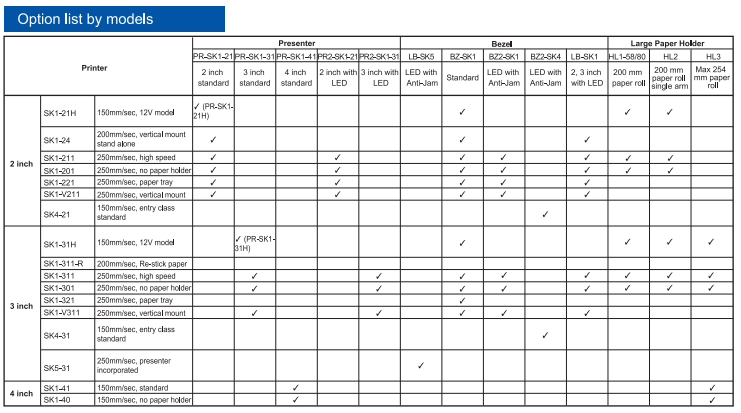

Options
  • Standard Bezel
  • Standard Bezel with separator
  • LED Bezel
  • Presenter
  • LED Presenter
  • PS60 PSU + PS60 Connector
    CB-SK1-D3 for SK-211/221 and SK311/321 series
  •  SA1-27A240-1 PSU for SK1-41 series
  • Large Paper Holder
  • Power Cable
  • Serial Cable
  • Paper Extension Arms

Models

Part Number Model Description
37968581 SK4-21SF-M-ST 2″ Entry Level Open Frame Kiosk Printer with paper holder
37968551 SK4-31SF-M-ST 3″ Entry Level Open Frame Kiosk Printer with paper holder
37966641 SK1-21HASF-Q-ST 2″ Open Frame Kiosk Printer 12V
37966650 SK1-31HASF1-Q-ST 3″ Open Frame Kiosk Printer 12V
37963702 SK1-41ASF4-LQ-M-ST 4″ Open Frame Kiosk Printer with paper holder
37963692 SK1-41ASF4-LQP-M-ST 4″ Open Frame Kiosk Printer with paper holder and presenter
37963764 SK1-211SF2-Q-M-SP 2″ Open Frame Kiosk Printer with paper holder
37963754 SK1-211SF2-LQP-M-SP 2″ Open Frame Kiosk Printer with paper holder and presenter
37964084 SK1-V211SF2-LQP-M-SP 2″ Open Frame Kiosk Printer with paper holder, vertical mount
37964594 SK1-V211SF2-Q-M-SP 2″ Open Frame Kiosk Printer with paper holder and presenter, vertical mount
37967914 SK1-211SF2-LQW-M-SP 2″ Open Frame Kiosk Printer with LED Presenter
37963894 SK1-221SF2-Q-M-SP 2″ Open Frame Kiosk Printer with paper tray
37963784 SK1-311SF4-Q-M-SP 3″ Open Frame Kiosk Printer with paper holder
37963776 SK1-311SF4-LQP-M-SP 3″ Open Frame Kiosk Printer with presenter
37964094 SK1-V311SF4-Q-M-SP 3″ Open Frame Kiosk Printer with paper holder, vertical mount
37964604 SK1-V311SF4-LQP-M-SP 3″ Open Frame Kiosk Printer with paper holder and presenter, vertical mount
37967904 SK1-311SF4-LQW-M-SP 3″ Open Frame Kiosk Printer with LED Presenter
37963464 SK1-321SF4-Q-M-SP 3″ Open Frame Kiosk Printer with paper tray
37951300 SK1-311SF4-Q-SK-SP 3″ Open Frame Linerless Kiosk Printer with cutter
Accessories
37963490 BZ-SK1-1 Bezel Black Standard Bezel
37963710 BZ-SK1-2 Bezel Black Standard Bezel with Separator
37965520 LB-SK1-1 LED Bezel LED Bezel with Sensor (Blue & Red)
37967920 LB-SK1-1G LED Bezel LED Bezel with Sensor (Green & Red)
37969130 BZ2-SK1 BEZEL LED anti-jam Bezel for SK1-211/311 Series (Green & Red)
37969140 BZ2-SK4 BEZEL LED anti-jam Bezel for SK4-21/31 Series (Green & Red)
37967550 PR-SK1-21 Presenter Presenter compatible with SK1-211 2″ Kiosk Printer
37967560 PR-SK1-31 Presenter Presenter compatible with SK1-311 3″ Kiosk Printer
37967950 PR2-SK1-21 Presenter LED Presenter compatible with SK1-211 2″ Kiosk Printer
37967960 PR2-SK1-31 Presenter LED Presenter compatible with SK1-311 3″ Kiosk Printer
37967930 PR-SK1-21H Presenter 12V Presenter compatible with SK1-21HASF 2″ Kiosk Printer
37967940 PR-SK1-31H Presenter 12V Presenter compatible with SK1-31HASF 3″ Kiosk Printer
37963730 HL2-SK1 Large Paper Holder Large Paper Holder for SK1 Series max 200mm
37965700 HL2 Guide Roller Guide Roller for HL2-SK1
37966090 HL1-80M Large Paper Holder Large Paper Holder for 3″ Kiosk max 200mm
37966250 HL3-SK141 Large Paper Holder Large Paper Holder for 4″ Kiosk max 254mm
37967970 HL4-SK140 Large Paper Holder Large Paper Holder for 2″, 3″ and 4″ Kiosk max 254mm
37950030 CB-SK1-D7 Cable Power Cable for internal power supply connection (Molex)
37967980 CB-SK1H-D1 Cable Power Cable for 12V Kiosk Printers
37950040 CB-SK1-D8 Cable Power Cable with Hosiden Connector (Molex) for use with Star PS60
37950050 CB-SK1-D9 Power conversion cable (Molex to Hirose)
30782120 PS60A-24C PSU EU Plug Star 24VDC Mains Power Supply EU Power Lead
30782130 PS60A-24C PSU UK Plug Star 24VDC Mains Power Supply UK Power Lead
37967330 CB-SK1-S4 Cable Serial Cable for all SK1 models
37963743 SA4-27A24O-3 PSU for SK1-41 series (Molex)
37966760 Bezel Mounting Plate Bezel Mounting Plate for SK1-211/311
37969030 HL1 NE Sensor Cable (46CM) Sensor Cable (46CM)
37963730 HL02 – Paper Extension Arm Paper Extension Arm
37969230 Serial Cable SK4-21/31 Serial Cable for SK4 Series
37969210 Paper Damper Kit Paper Damper Kit for SK4-21/31
37969220 Paper Guide D SK4-21/31 Paper Guide for SK4-21/31
