SP700
SP712 Tear bar printer
SP742 Autocutter printer
SP712R / 742R Rewind versions
SP742BI Bluetooth printer
SP742HI X Connect with Star WebPRNT & CloudPRNT
Interfaces: USB, Serial,
9-Pin Serial, Parallel, LAN, Bluetooth,
HI X Connect with WebPRNT & CloudPRNT

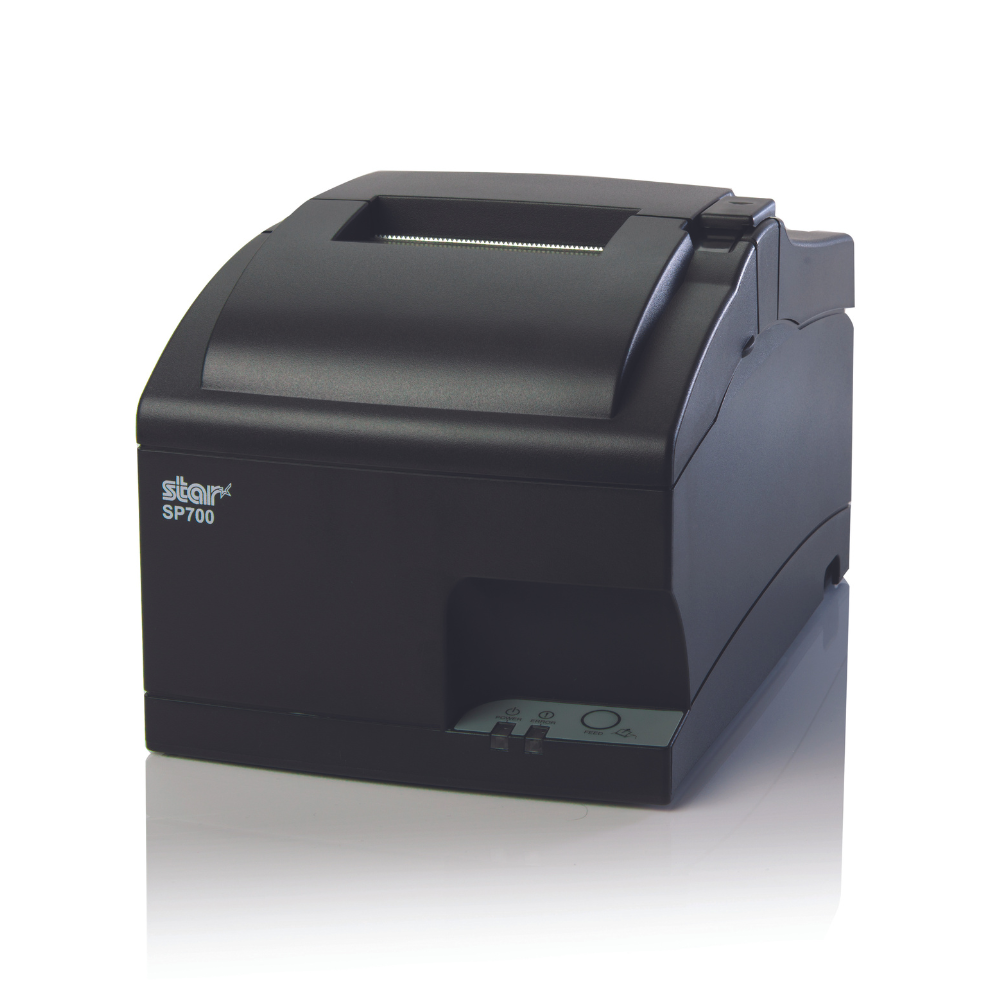

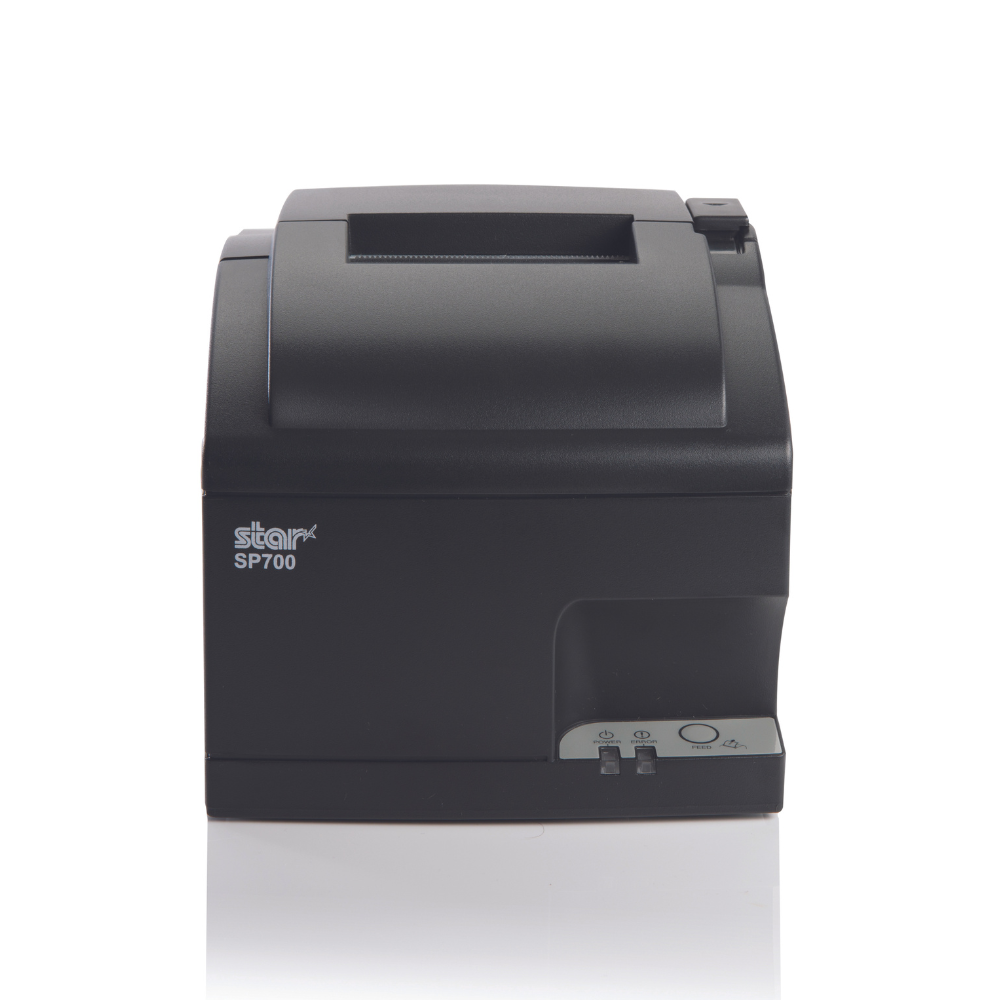

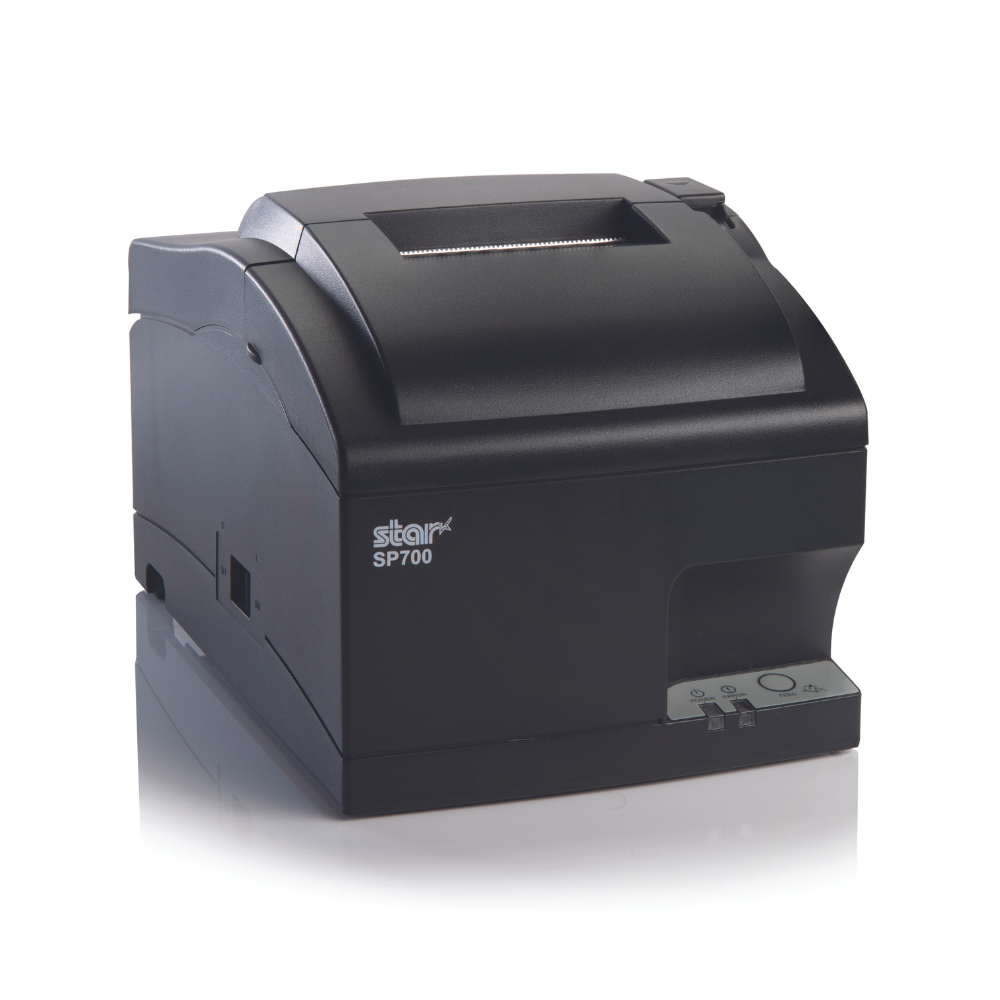

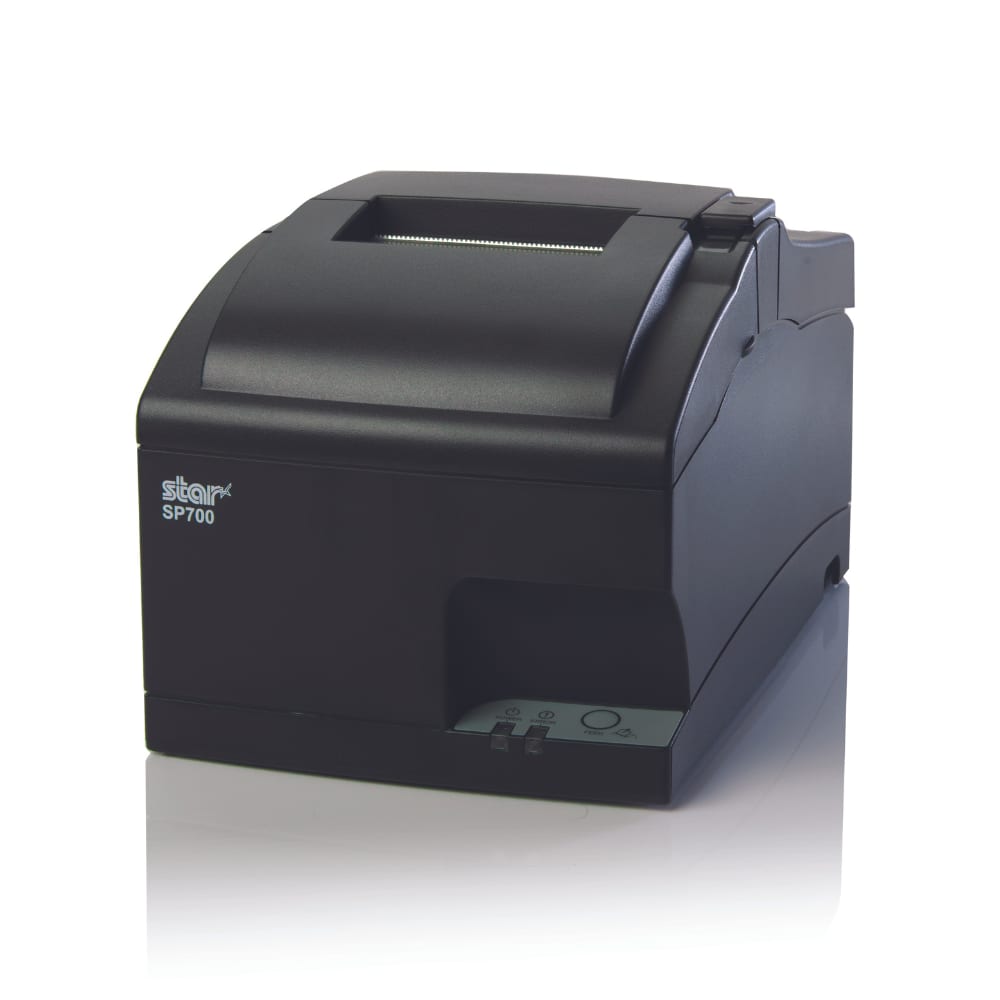

Advanced high speed two colour matrix receipt printer
With its fast print speed of up to 8.9 lines per second, Clamshell™ design for easy paper loading and compact vertical or horizontal printing, the SP700 is a reliable receipt and kitchen printer for retail and hospitality applications.
It’s splash resistant and easy-clean design along with options such as two colour printing, wall mount bracket and integrated buzzer alarm option mean that the SP700 is ideally suited as a robust hospitality printer in bar or kitchen environments.
Available with a range of interface options including USB, Bluetooth, LAN and Hi X Connect with WebPRNT and CloudPRNT, the SP700 is a versatile printer option for traditional POS or tablet POS as well as supporting web and cloud based software for online order printing.
Also included are free of charge marketing tools to enable retailers to increase brand awareness by adding two colour logos, graphics and designs for promotional coupons quickly and simply without changing any existing software.
Features
- High speed, 2 colour logic seeking 9-pin quality matrix printer – up to 8.9 lines per second
- Autocutter or tear bar versions
- 76mm default paper width (also 69.5 and 58mm)

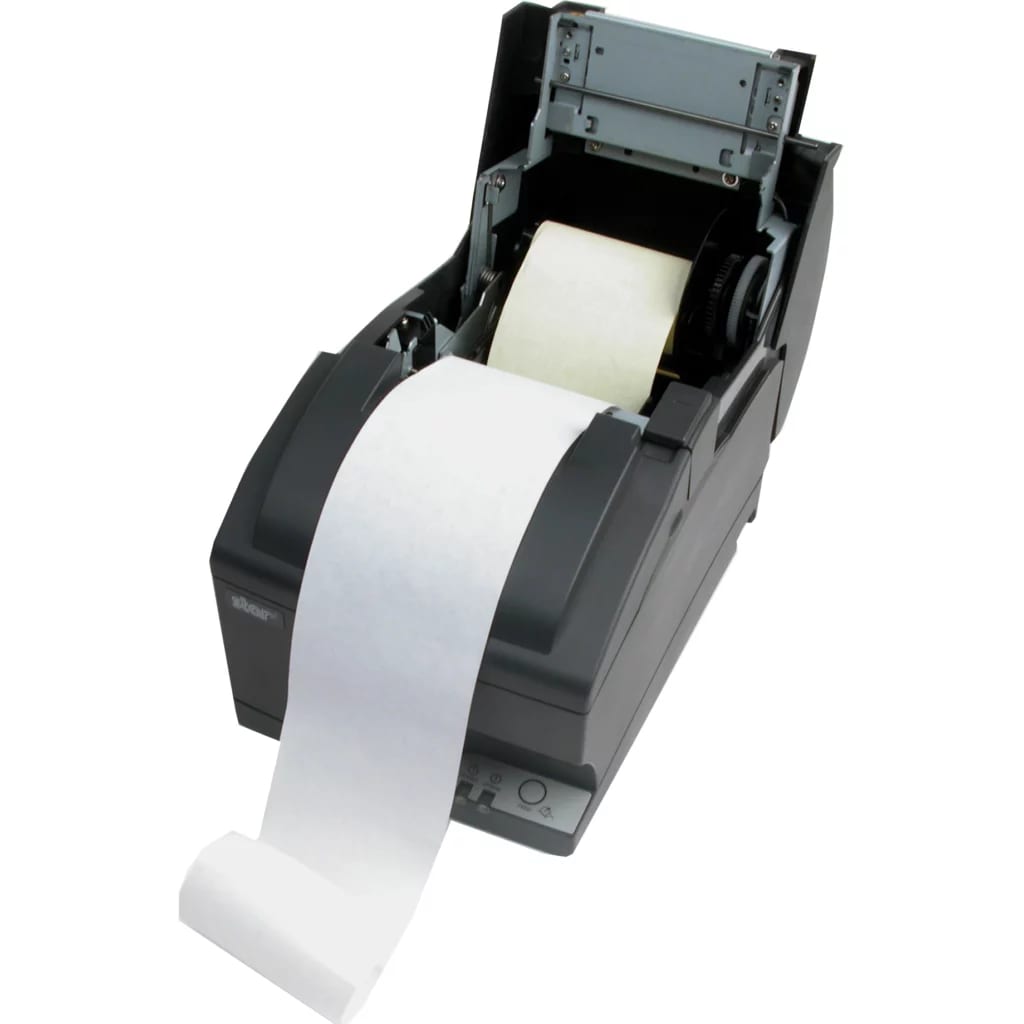

- East-to-use Clamshell design with “Drop-In & Print” paper loading and easy access for ribbon replacement
- Splash resistant design with easy-clean curves for robust kitchen / bar use
- Internal power supply with universal cable included at purchase
- Graphic Management / Logo Store Driver Tools
- Compact, space saving design with vertical desk stand or wall mount
- SP742BI MFi Bluetooth version available with unique Auto Connect
- Star HI X interface with WebPRNT and CloudPRNT for web and cloud based software
- Wall mount / desk stand / buzzer / paper rewind options available
SP700 Specifications
| Max. Print Speed | 4.7 to 8.9 lps |
|---|---|
| Resolution | 7 x 9 half dot |
| No. of Columns | 42 / 35 |
| Autocutter | Tear Bar and Full / Partial (Guillotine) Autocutter Rewind models |
| Paper Width | 76mm default, 69.5, 58mm |
| Paper Thickness | 0.06 – 0.085mm / 1+2 copies |
| Paper Roll Standard Option | 85mm |
| Media Presentation | Vertical or Horizontal mode |
| Print Width | 63 / 50 / 45mm |
| Sensors | Paper End (Near End option) |
| Interface | RS232C, Parallel, USB, Ethernet, non interface, Bluetooth iOS MFi, HI X with WebPRNT and CloudPRNT |
| Unique Ethernet Print on Disconnection Feature | |
| Power Supply | Internal with cable provided |
| Power Consumption | 1.5 Amps Printing 0.42 Amps Standby |
| Energy Star | |
| Reliability | 22 Million Lines 1 Million Cuts |
| Dimensions (W x D x H) mm Weight | 160 x 245 x 152 |
| Options |
|
Image Gallery
Related Products
Integrated Buzzer Option
SP700R version with paper rewind
Star HI X Interface with CloudPRNT
Star HSP7000 Thermal / Matrix Combination Printer
SP700 Models
| Part Number | Model | Description |
| 39330030 | SP712MC EU WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, Parallel Interface, White Case, EU Version |
| 39330130 | SP712MC EU GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, Parallel Interface, Grey Case, EU Version |
| 39330230 | SP712MD EU WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, Serial Interface, White Case, EU Version |
| 39330330 | SP712MD EU GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, Serial Interface, Grey Case, EU Version |
| 39330430 | SP712M W/O I/F EU WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, No Interface, White Case, EU Version |
| 39330530 | SP712M W/O I/F EU GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, No Interface, Grey Case, EU Version |
| 39330830 | SP712M REWIND W/O I/F EU WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, No Interface, White Case, Rewind, EU Version |
| 39330930 | SP712M REWIND W/O I/F EU GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, No Interface, Grey Case, Rewind, EU Version |
| 39332030 | SP742MC EU WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Parallel Interface, White Case, EU Version |
| 39332130 | SP742MC EU GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Parallel Interface, Grey Case, EU Version |
| 39332230 | SP742MD EU WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Serial Interface, White Case, EU Version |
| 39332330 | SP742MD EU GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Serial Interface, Grey Case, EU Version |
| 39332430 | SP742M W/O I/F EU WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, No Interface, White Case, EU Version |
| 39332530 | SP742M W/O I/F EU GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, No Interface, Grey Case, EU Version |
| 39332830 | SP742M REWIND W/O I/F EU WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, No Interface, White Case, Rewind, EU Version |
| 39332930 | SP742M REWIND W/O I/F EU GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, No Interface, Grey Case, Rewind, EU Version |
| 39339432 | SP742ME3 LAN EU GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Ethernet Interface, Grey Case, EU Version |
| 39339330 | SP742MBI GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Bluetooth Interface, Grey Case, EU Version |
| UK Versions | ||
| 39330040 | SP712MC UK WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, Parallel Interface, White Case, UK Version |
| 39330140 | SP712MC UK GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, Parallel Interface, Grey Case, UK Version |
| 39330240 | SP712MD UK WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, Serial Interface, White Case, UK Version |
| 39330340 | SP712MD UK GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, Serial Interface, Grey Case, UK Version |
| 39330440 | SP712M W/O I/F UK WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, No Interface, White Case, UK Version |
| 39330540 | SP712M W/O I/F UK GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, No Interface, Grey Case, UK Version |
| 39330840 | SP712M REWIND W/O I/F UK WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, No Interface, White Case, Rewind, UK Version |
| 39330940 | SP712M REWIND W/O I/F UK GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Tear Bar, No Interface, Grey Case, Rewind, UK Version |
| 39332040 | SP742MC UK WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Parallel Interface, White Case, UK Version |
| 39332140 | SP742MC UK GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Parallel Interface, Grey Case, UK Version |
| 39332240 | SP742MD UK WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Serial Interface, White Case, UK Version |
| 39332340 | SP742MD UK GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Serial Interface, Grey Case, UK Version |
| 39332440 | SP742M W/O I/F UK WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, No Interface, White Case, UK Version |
| 39332540 | SP742M W/O I/F UK GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, No Interface, Grey Case, UK Version |
| 39332840 | SP742M REWIND W/O I/F UK WHITE | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, No Interface, White Case, Rewind, UK Version |
| 39332940 | SP742M REWIND W/O I/F UK GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, No Interface, Grey Case, Rewind UK Version |
| 39339442 | SP742ME3 LAN UK GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Ethernet Interface, Grey Case, UK Version |
| 39339340 | SP742MBI OF UK GRY | High Speed, Clam-shell 9-pin Printhead Matrix Receipt Printer, Autocutter, Bluetooth Interface, Grey Case, UK Version |
| Accessories | ||
| 30781880 | PS60-A-24-BI PSU EU Plug | 24VDC Mains Power Supply Unit. EU Power Lead |
| 30782130 | PS60A-24C PSU UK Plug | 24VDC Mains Power Supply Unit. UK Power Lead |
| 39590211 | WB-SP700 | Wall Bracket SP700 |
| 39590610 | VS-SP700 | Desk Boot / Vertical Stand SP700 |
| 09990641 | BUZZER 104S120LFA | Buzzer Alert SP700 |
| 30980731 | RC700B | Black Ribbon SP700 |
| 30980721 | RC700BR | Black / Red Ribbon SP700 |
| 30980742 | RC700D | Laundry Ribbon SP700 |
| Interfaces | ||
| 39607120 39607400 39607430 39607411 39607904 39607910 |
IFBD-HI02X IFBD-HD04 D IFBD-HN04 9 Pin D IFBD-HC04 C IFBD-HE08 Ethernet IFBD-HE08 USB |
Plug-In HI X Connect Intelligent Interface with Star WebPRNT and Star CloudPRNT Plug-In Serial Interface Plug-In 9 Pin Serial Interface Plug-In Parallel Interface Plug-In Ethernet LAN Interface Plug-In USB Interface |
