TSP650II

bluetooth TSP654IIBI Bluetooth*
TSP654II WebPRNT
TSP654IIE Ethernet*
TSP654IIU USB
TSP654IID Serial
TSP654IIC Parallel
TSP654II No Interface*

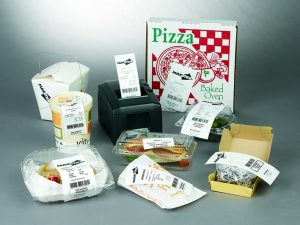

TSP654SK Restick Label Printer
TSP654II HI X* Connect with CloudPRNT technology

*Available in new Ultra White colour for tablet POS systems

TSP654IIBI is a separate bluetooth printer model with MFi certification

TSP650 Series Models and Part Numbers

One model with so many upgrade options…

A fast 300mm/second thermal POS receipt printer, the TSP650II offers versatility at all levels with a range of connection options for traditional EPOS as well as newer mPOS and web based systems.  Retailers can choose to stick to a traditional PC-based system and then to switch to web or tablet solutions as they wish or to run both systems concurrently.

The TSP650II offers a range of connectivity options including plug-in USB, Ethernet as well as Star WebPRNT and HI X Connect interfaces for Web based and Cloud based printing including remote printing for on-line restaurant ordering and click and collect applications. The TSP654IIBI model offers a dedicated MFi approved Bluetooth receipt printer.

The TSP650II also supports ProxiPRNT, Star’s BLE beacon proximity printing solution allowing mobile devices to print to the nearest available printer.

The TSP650II combines high print quality and simple set up with Star’s renowned reliability  – all at great value.

In addition Star’s TSP650II Series also offers free of charge access to Star Cloud Services.  By transforming receipt printers into cloud-connected devices, Star Cloud Services offers a variety of services and tools to enable retailers to better engage and activate shoppers. This includes Star Digital Receipt Service with AllReceipts™ Customer App, fast, free, and secure digital receipt solution and Engage NOW a secure and customisable service enabling retailers to better engage with shoppers.

Features

  • Versatile thermal receipt printer for traditional POS and mobile, tablet and web-based POS systems
  • High performance thermal printing at 300mm per second
  • “Drop-In & Print” Easy Paper Load
  • High quality 203 dpi print quality with barcode capability including 2D for receipts, coupons and ticketing
  • Compact horizontal or vertical footprint
  • 60,000,000 lines CRT reliability
  • Autocutter as standard
  • TSP654II versions available: TSP654II HI X Connect, TSP654IIBI Bluetooth, TSP654II WebPRNT, TSP654IIE Ethernet, TSP654IIU USB, TSP654IID Serial, TSP654IIC Parallel, TSP654SK Restick Label Printer, TSP654II No Interface



TSP650II Specifications

Max. Print Speed 300mm/sec.
Resolution 203 dpi
No. of Columns 48 / 64 col. Depending on Paper Width
Autocutter Partial Cut (Guillotine)
Paper Width 80mm (58mm Using Paper Guide)
Paper Thickness 0.053 – 0.085mm
Paper Roll Standard Option 83mm
Media Presentation User Selectable Paper Delivery Options with Mounting Bracket included
Print Width 50.8mm (58mm Paper) 72mm (80mm Paper)
Sensors Paper End, Cover Open, Near End Sensor Horizontal & Vertical
Interface TSP654II Serial, Parallel, USB, Ethernet, HI X and Non Interface versions. Plug-In Options for non-interface version: Serial (IFBD-HD03), 9-pin Serial (HN03), Parallel (HC03), Ethernet (HE07), WebPRNT (HE07X). TSP654II HI X Connect supporting LAN, USB, WiFi and Star CloudPRNT technology in a single interface.   Bluetooth version  – TSP654IIBI.
Unique Ethernet Print on Disconnection Feature Standard with IFBD-HE07 Option
Power Supply External Power Supply PS60A required.  External PS60A is available with all versions of this printer series at no extra charge when purchased using the “kit” part number. Please contact your Star Reseller for more information.
Power Consumption 1.9 Amps Printing 0.15 Amps Standby
Energy Star External, Energy Star Qualified PS60 (Optional)
Reliability 60 Million Lines 2 Million Cuts
Dimensions (W x D x H) mm Weight 142 x 203.5 x 132 1.60kg
Options
  • T100/650 Splash Proof Cover
  • VS-T650/100 Display Stand for Vertical Use
  • Plug-in Interfaces (see above)
  • “Plug-In” WebPRNT and HI X Connect interface solution for simple Web printing
  • Star WebPRNT Browser Download option for TSP654IIBI Bluetooth printer from the App Store & Google Play

Image Gallery

Invalid Displayed Gallery

Related Products

PS60 Power Supply

Vertical stand

Splash proof cover

Hi X connect interface

WebPRNT Interface



ProxiPRNT beacon technology

Digital Receipt Service from Star Cloud Services

TSP650II Models

Accessories

Part Number Model Description
99256300 TSP654IIHIX GRY E+U Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, HI X Connect Interface with Star CloudPRNT, Grey Case, EU  / UK Version
99449290 TSP654II-24 w/o I/F ULTRA White KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, Ultra White Case, EU Version
30009200 TSP654II-24- w/o I/F WHITE KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, White Case, EU Version
30009210 TSP654II-24- w/o I/F GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, Grey Case, EU Version
30009400 TSP654IIC-24- WHITE KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Parallel Interface, White Case, EU Version
30009410 TSP654IIC-24- GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Parallel Interface, Grey Case, EU Version
30009500 TSP654IID-24 WHITE KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Serial Interface, White Case, EU Version
30009510 TSP654IID-24 GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Serial Interface, Grey Case, EU Version
30009610 TSP654IIU-24 GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, USB Interface, Grey Case, EU Version
99481360 TSP654IIE-24 ULTRA White KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Ethernet Interface, Ultra White Case, EU Version
30009712 TSP654IIE3-24 GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Ethernet Interface, Grey Case, EU Version
39481600 TSP654IIBI-24 ULTRA White KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, Grey Case, EU Version
30009820 TSP654IIBI2-24 WHITE KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, White Case, EU Version
30009821 TSP654IIBI2-24 GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, Grey Case, EU Version
39449200 TSP654II-24- w/o I/F WHITE Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, No Interface, White Case, EU  / UK Version
39449210 TSP654II-24- w/o I/F GRY Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, No Interface, Grey Case, EU / UK  Version
39449400 TSP654IIC-24- WHITE Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Parallel Interface, White Case, EU / UK  Version
39449410 TSP654IIC-24- GRY Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Parallel Interface, Grey Case, EU / UK  Version
39449500  TSP654IID-24 WHITE  Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Serial Interface, White Case, EU / UK  Version
39449510 TSP654IID-24 GRY  Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Serial Interface, Grey Case, EU / UK  Version
39449610  TSP654IIU-24 GRY  Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, USB Interface, Grey Case, EU / UK  Version
39449712 TSP654IIE3-24 GRY  Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Ethernet Interface, Grey Case, EU / UK  Version
39481140  TSP654IIBI OF-24 WHITE Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Bluetooth Interface, White Case, EU / UK  Version
39481410  TSP654IIBI2 OF-24 Gry  Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Bluetooth Interface, Grey Case, EU / UK  Version
99449290 TSP654II-24 w/o I/F ULTRA White KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, Ultra White Case, UK Version
30009205 TSP654II-24- w/o I/F WHITE KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, White Case, EU Version
30009215 TSP654II-24- w/o I/F GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, No Interface, Grey Case, UK Version
30009405 TSP654IIC-24- WHITE KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Parallel Interface, White Case, UK Version
30009415 TSP654IIC-24- GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Parallel Interface, Grey Case, UK Version
30009505 TSP654IID-24 WHITE KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Serial Interface, White Case, UK Version
30009515 TSP654IID-24 GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Serial Interface, Grey Case, UK Version
30009615 TSP654IIU-24 GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, USB Interface, Grey Case, UK Version
99481361 TSP654IIE-24 ULTRA White KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Ethernet Interface, Ultra White Case, UK Version
30009717 TSP654IIE3-24 GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Ethernet Interface, Grey Case, UK Version
99481261 TSP654IIBI-24 ULTRA White KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, Grey Case, UK Version
30009818 TSP654IIBI2-24 WHITE KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, White Case, UK Version
30009819 TSP654IIBI2-24 GRY KIT Thermal, 80mm Wide Paper, 24VDC (Includes PS60 PSU), Cutter, Bluetooth Interface, Grey Case, UK Version

39449110 TSP654SK-24 w/o I/F GRY  Thermal, 80mm Wide, Restick Label Printer (Requires PS60 PSU), No Interface, Grey Case


 30781880  PS60-A-24-BI PSU EU  24VDC Mains Power Supply Unit. EU Power Lead
 30781890  PS60-A-24-BI PSU UK  24VDC Mains Power Supply Unit. UK Power Lead
Accessories
39590530
39591100
39594001
VS-T650/100 (desk boot)
SplashProof CoverT100/650
BUZZER BU01-24-A
Vertical stand for TSP650II
Splash Proof Cover for TSP650II
Buzzer alert for TSP650II
Interfaces
39607040
39607200
39607211
39607300
39607803
39607820
39607832
IFBD-HI01X
IF-BDHD03 D
IF-BDHC03 C
IF-BDHN03 9pinD
IF-BDHE07 Ethernet
IFBD-HU07 USB
IFBD-HE07X WEBPRNT
HI X Connect Intelligent Interface with Star CloudPRNT
Plug-in Serial Interface for TSP650II
Plug-in Parallel Interface for TSP650II
Plug-in 9 Pin Serial Interface for TSP650II
Plug-in Ethernet Interface for TSP650II
Plug-in USB Interface for TSP650II
Plug-in WebPRNT Interface for TSP650II
