Versatile Direct Thermal Label Printer

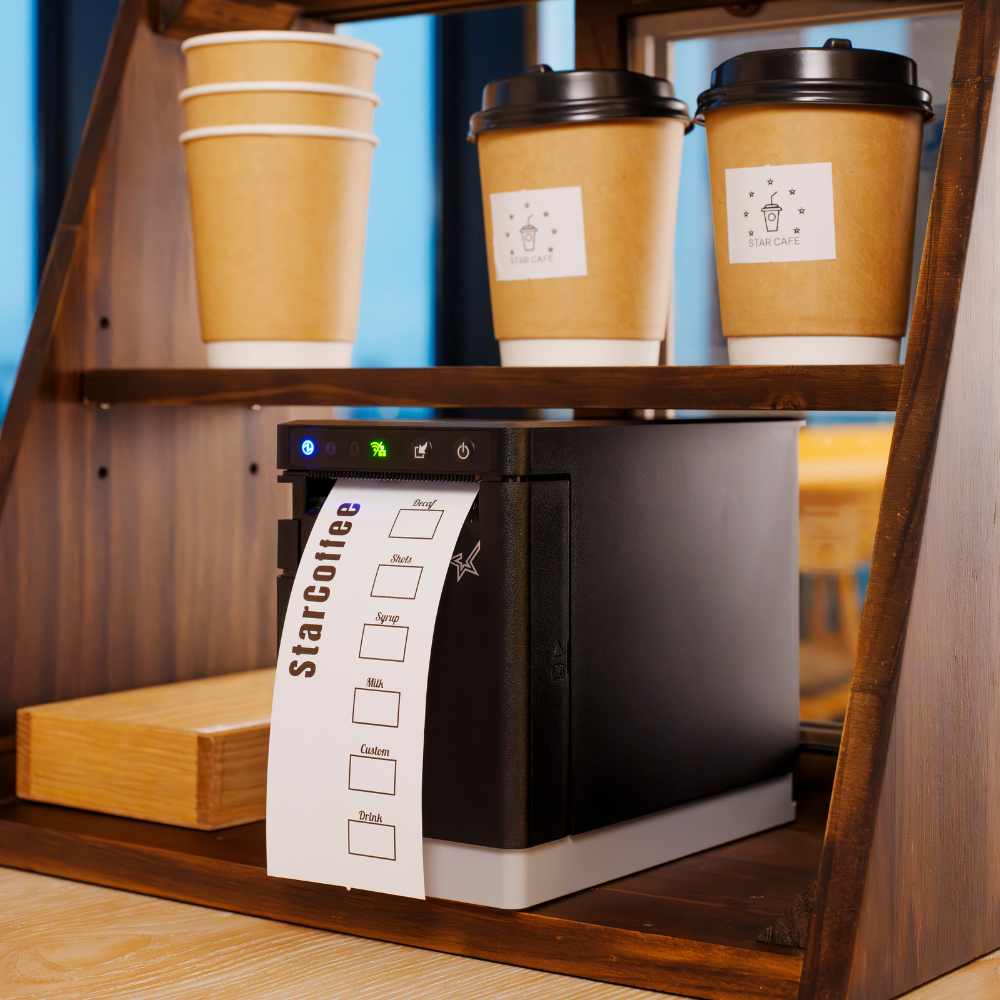

Star’s new mC-Label2 direct thermal label printer is purpose-built for space-conscious environments, combining high performance with an ultra-compact IP22-rated design. At less than 10cm wide and with a unique front-loading design, which allows easy paper loading in confined areas, the mC-Label2 fits where other printers can’t – under the counter, mounted on a shelf or in any tight workspace.
The high-resolution 300dpi print head ensures that even the smallest text, barcodes and graphics are sharp, legible, and professional even in paper-saving mode. Flexibility is built in —the mC-Label2 supports both linerless and traditional liner backed media, giving you more control over how you print.

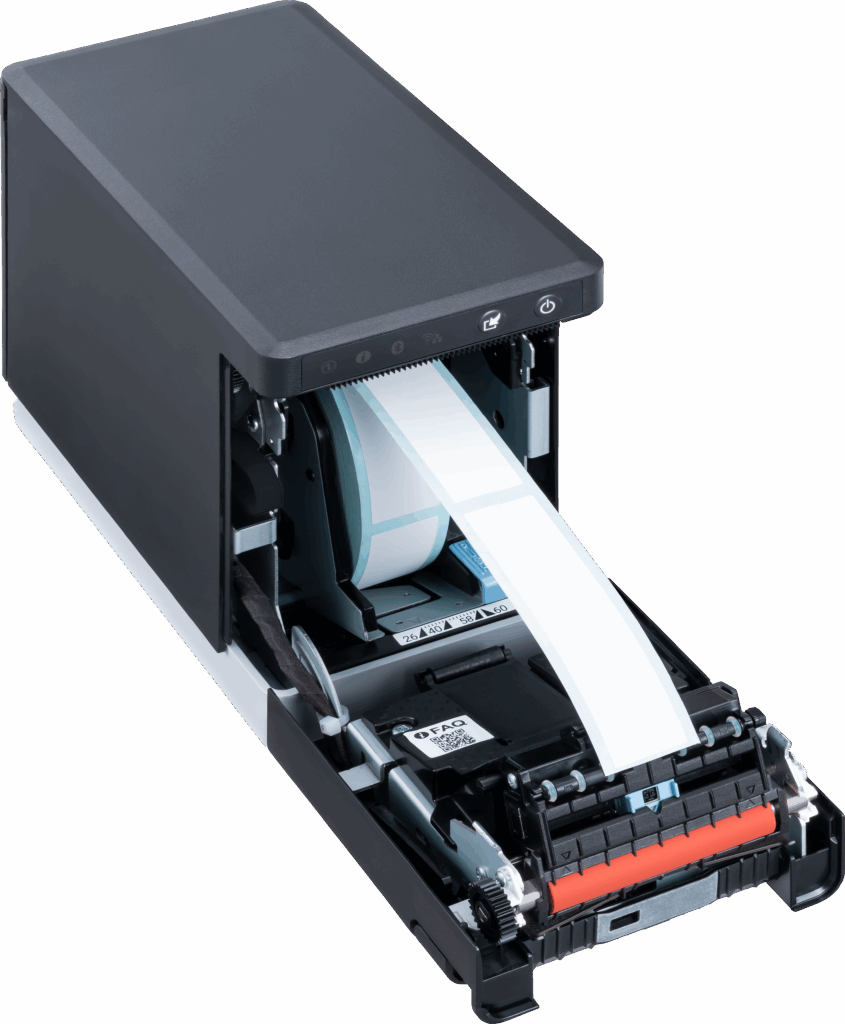

Despite its compact size, the mC-Label2 supports high capacity media rolls, helping to reduce the frequency of paper changes and improve efficiency. It’s a breeze to change label rolls with no fiddly cartridges or ribbons, simply drop in a new roll and close the cover. The width is fully adjustable to take label rolls from25mm to 60mm wide.

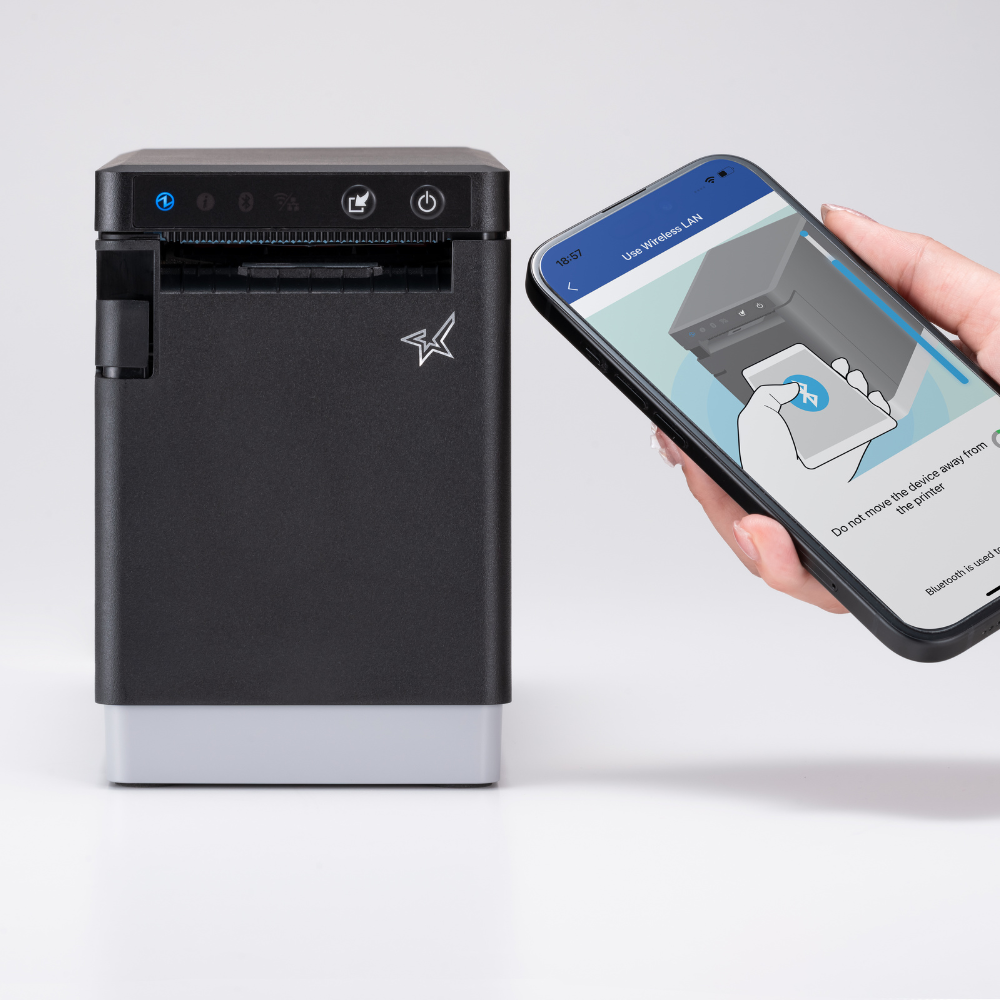

As with all of Star’s mCollection, additional Star technologies are included. The new SteadyLAN+ technology offers a lightning-fast, stable internet connection to Android and Windows mobile devices connected to networked Star printers. In addition, new TetherLAN technology allows your 4G & 5G connected device to share its network connection with the mC-Label, essentially creating a CloudPRNT environment anywhere, anytime.

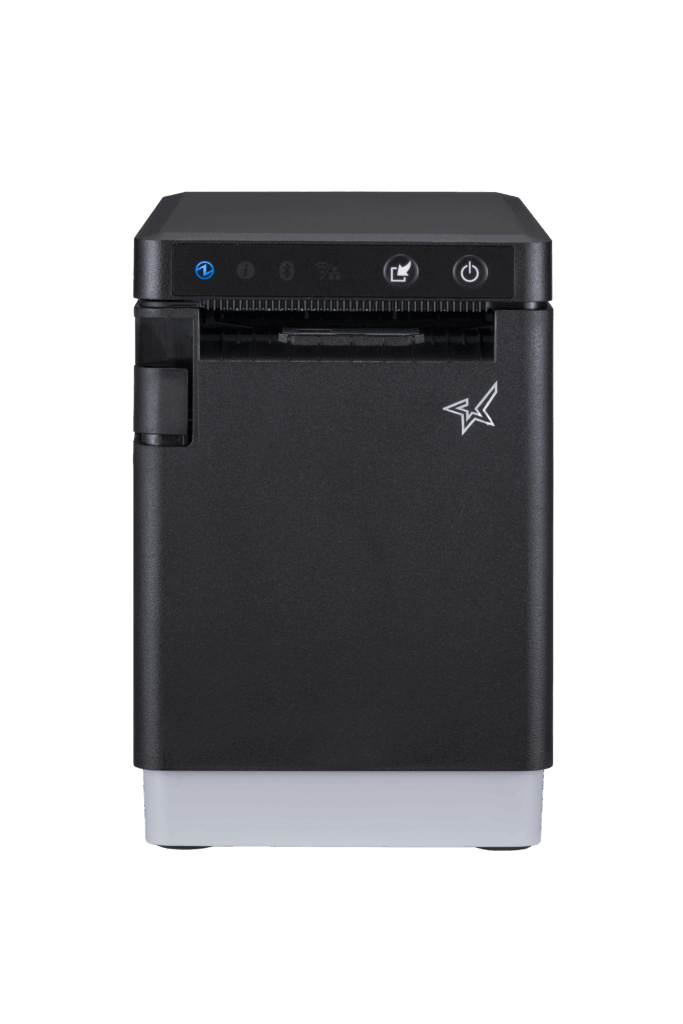

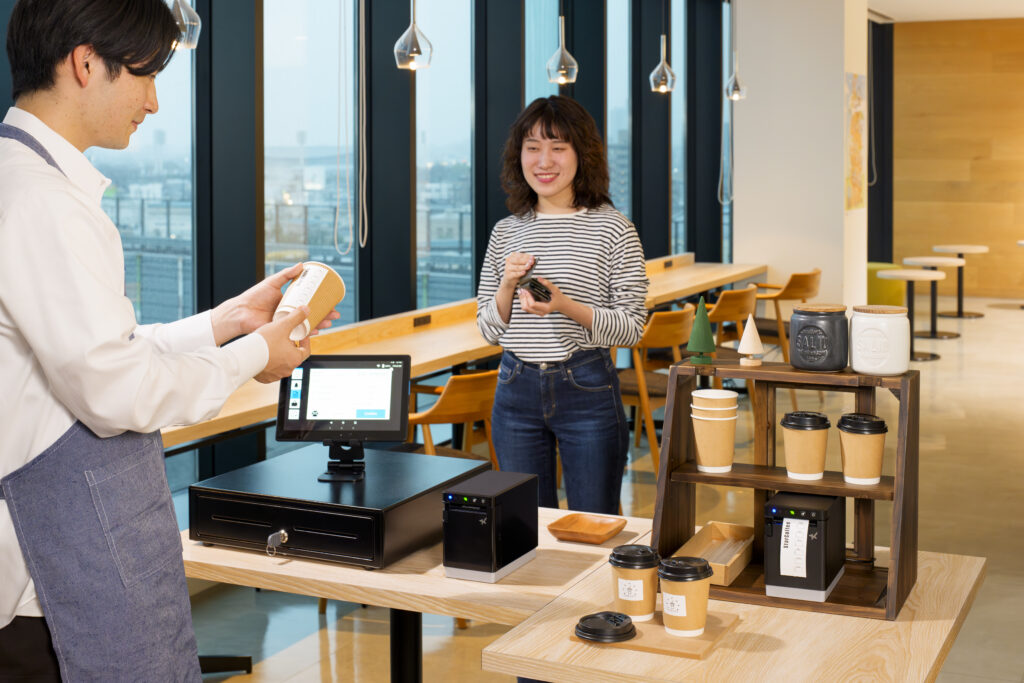

With its slim sub-10cm profile and smart front-loading mechanism, the mC-Label2 makes the most of cramped environments. It’s built to slide neatly under counters, perch on shelves, or slot into any workspace where every centimetre counts.

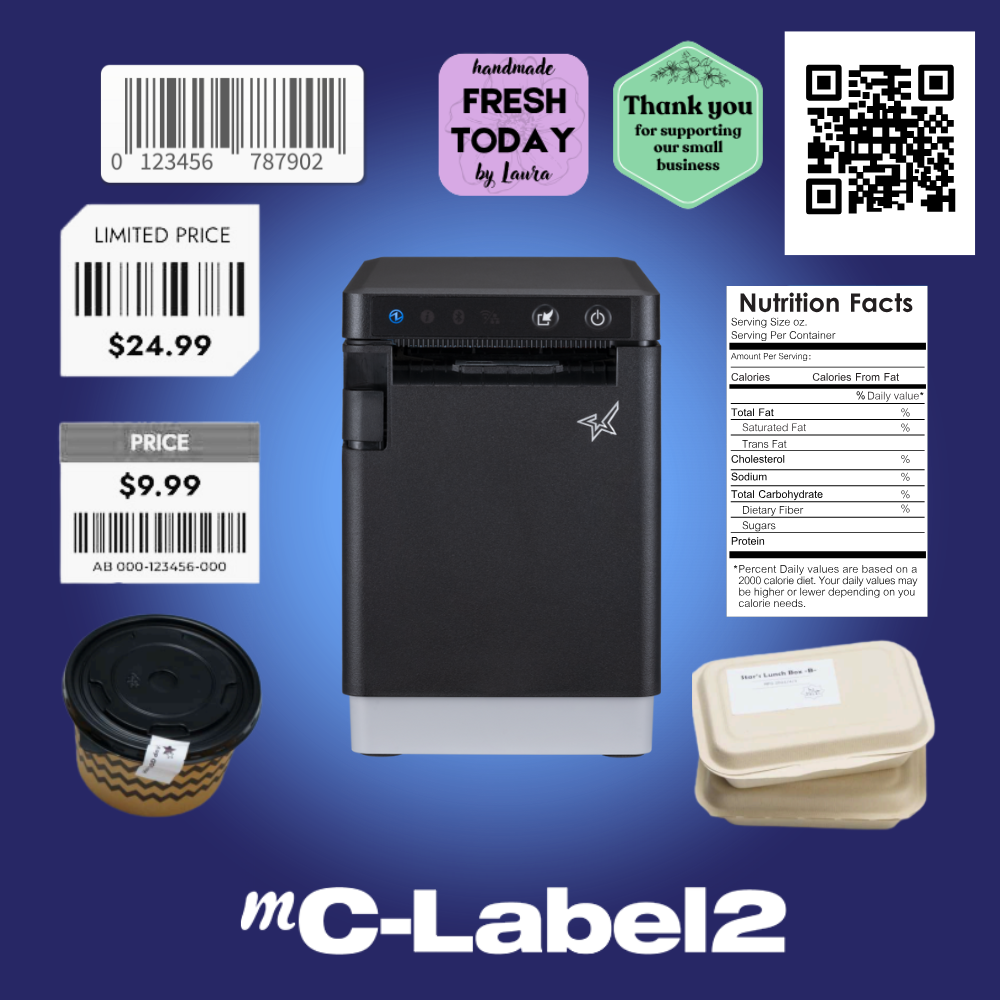

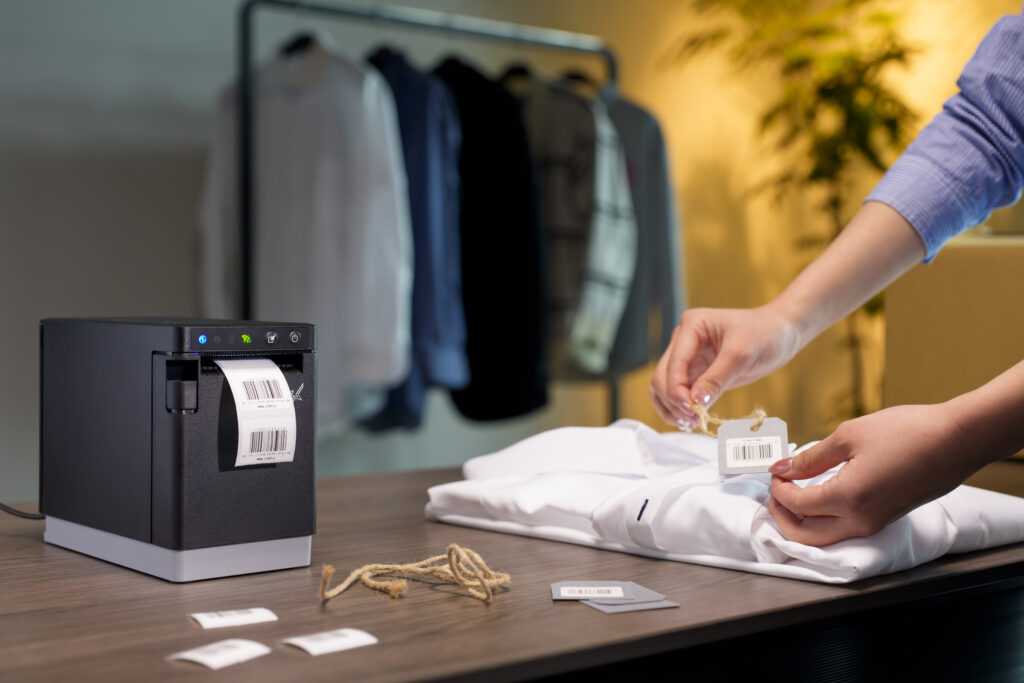

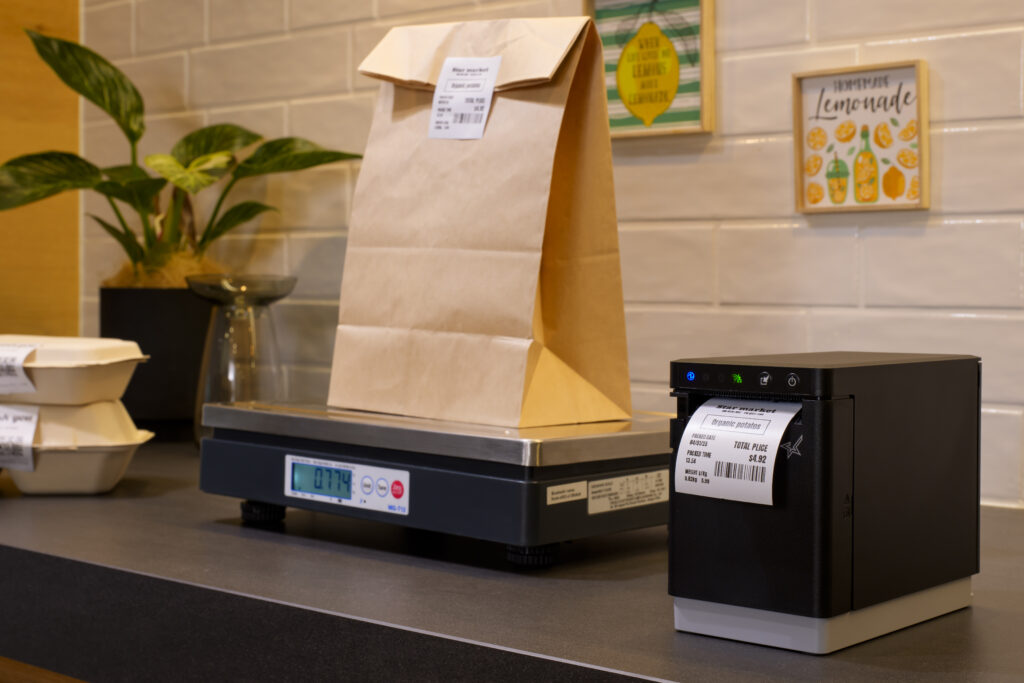

The mC-Label2 prints ontraditional die cut media aswell as strong linerless mediaand re-stick media forrepositionable labels. It canalso print receipts and orderssimply by changing the roll.
View product specifications and technical information
Download product brochures and data sheets
View models and part numbers within the range
Drivers, product manuals, SDK information and FAQs
Compact, economical linerless sticky label printer for 40 / 58 / 80mm wide labels. Connects to PC, Network, Tablet and Cloud based systems
Durable and secure tablet stands and mounts for POS, Kiosk and Display
New generation 80mm thermal POS receipt printers with USB-C / USB-A and Ethernet LAN interfaces and Star CloudPRNT technology
Need product support or help with integration? Contact the Star team today and they will be happy to help!
A combination of sustainability, design and advanced technology
Star House Peregrine Business Park, Gomm Road, High Wycombe, Bucks
HP13 7DL, UK
| Technology | Compact 2″ / 58mm Direct Thermal Label Printer |
|---|---|
| Max. Print Speed | 180mm/sec. |
| Resolution | 300 dpi |
| Media Support | Linerless labels (Restick and permanent), Die-cut labels, Continuous labels, Receipts |
| Autocutter | Guillotine (full and partial cut)? |
| Paper Width | 25mm – 60mm fully adjustable |
| Paper Roll diameter | 15mm – 56.9mm (Default : 48.7mm) |
| Media Presentation | Front loading and paper presentation? |
| Print Width | 25mm – 60mm fully adjustable |
| Sensors | Taken sensor, Paper jam sensor, GAP/Black mark sensor, Paper end sensor, Cover open sensor, Paper position sensor, Paper width sensor? |
| Paper Loading | Drop-In & Print |
| Connectivity |
|
| Power Supply | External PS65 100～240V AC±10% Power Supply? |
| Power Consumption | At 24 VDC, room temperature, without USB power supply:During power ON idling: Approx. 0.08 A (average)
During ASCII printing: Approx. 2.1 A (average)? |
| Emulation | StarPRNT? |
| Reliability | Cutter Life: 200,000 cuts…Linerless label paper (Adhesive type: Strong adhesive)
One million cuts…Linerless label paper (Adhesive type: Weak adhesive) Head Life: 30 km (30 million pulses) … Linerless label paper (Adhesive type: Strong adhesive) 75 km (75 million pulses) …Linerless label paper (Adhesive type: Weak adhesive) IP22 splash resistant ? |
| Dimensions (W x D x H) mm Weight | 98.0 x 185.0 x 145.5 |
| Software | Star CloudPRNT, Star WebPRNT, Star PassPRNT, StarXpand SDK, StarPRNT SDK ? |
| Included | mC-Label2 Printer, PS65AT-24 power supply, powercable, USB-A to C interface cable, safety guide |
| Replacement Parts | Cutter Unit Platen Roll Unit 2 in 1 (Cutter unit & Platen unit set) ? |
| Options | 1D Barcode Scanner, MCW10 Wireless LAN Adapter, SCD222 Customer Display, mC-Sound Buzzer, BU01 Buzzer, CD4 Cash Drawer, CB2002 Cash Drawer, mUnite Tablet Stands ? |
| Part Number | Model | Description |
| MCL21CWBI | Die-cut and Linerlesslabels USB,LAN,Bluetooth,WLAN,CloudPRNT | |
| MCL21CI | Die-cut and Linerless labels USB,LAN,CloudPRNT | |
| MCL21CWBI*¹LBL | Die-cut labels USB,LAN,Bluetooth,WLAN,CloudPRNT | |
| MCL21CILBL | Die-cut labels USB,LAN,Bluetooth,WLAN,CloudPRNT | |
| Accessories | ||
| 39930000 | PS65AT-24A PSU | PS65 Power Supply for mC-Label3 MCL32CI/MCL32CBI Label Printer |
| 39594210 | MCL3 Platen | Replacement Platen Set for mC-Label3 MCL32CI/MCL32CBI Label Printer |
| 39594200 | MCL3 Cutter Set | Replacement Cutter for mC-Label3 MCL32CI/MCL32CBI Label Printer |
| 39594230 | MCL3 Cutter & Platen Set | Replacement Cutter and Platen Set for mC-Label3 MCL32CI/MCL32CBI Label Printer |
| 30907210 | MCW10 CO2 | Wireless LAN Adapter (Please check model and regions with Star) |
| 39594010 | MCS10 mC-Sound | mC-Sound Melody Buzzer Alert with 16 Sounds |
| 09990641 | Buzzer 104S120LFA | Buzzer Alert |
| 37964070 | TRP80-D102-C25PF 12 roll pack | Label Permanent Linerless MCL32C: 80mm Width, 80m Length, 12 Rolls/Case, Linerfree Label |
| 37964060 | TRP58-D102-C25PF 12 roll pack | Label Permanent Linerless MCL32C: 58mm Width, 80m Length, 12 Rolls/Case, Linerfree Label |
| 99250370 | MaxStick MS214170PLUSD-12 12 roll pack | MaxStick Restick Linerless 58 mm wide, 42.55m long, Diamond Pattern 12 Rolls/Case, Linerfree Label |
| 99250355 | MaxStick M318170PLUSD-12 12 roll pack | MaxStick Restick Linerless 80mm wide, 52 metres long, Diamond Pattern 12 Rolls/Case, Linerfree Label |
