SK5 Series
80mm Kiosk printer with 12 position paper roll holder and presenter included
Compact, open frame kiosk printers for limited space enclosures
Available in 2″, 3″ and 4″ widths, the Sanei range of barcode, ticket, receipt and label kiosk mechanisms offer fast, high quality 203 dpi printing at speeds up to 250 mm/second for compact, slimline kiosks. Versatile and dependable, Sanei thermal kiosk printers are available in either standard format (horizontal orientation) or vertical format, with presenter and roll holder options. Installation options include vertical, horizontal, drop-in paper holder, or no paper holder. The high-speed kiosk printers are also capable of printing receipts, tickets, Black Mark and linerless labels depending on the model.
Important Information: From April 2022 Sanei product Hirose connectors have been replaced by Molex connectors which are not compatible with the existing Hirose version. Both printer side and power cable side connectors must match. Please check that you are purchasing the correct product.
“Flip top” paper loading and spring loaded paper roll holders allow the kiosk builder to consider a simpler choice of operating access. The Sanei range comes with dual USB and serial interface. With a large paper roll capacity, the Sanei range offers up to 120mm outside diameter paper roll as standard with 254mm large paper roll option.
A range of bezels, presenters and paper roll holders are available for each Sanei kiosk printer model to make a truly versatile kiosk solutio.
StarPRNT is an all-in-one driver, configuration utility and support package designed for Star POS, Kiosk and Mobile Printers for development under Windows, Android, Linux and MAC.
Sanei SK1-211 and SK1-311 series printers can now be configured in the same way as Star’s range of POS and Mobile Printers. This gives maximum flexibility in kiosk design. With StarPRNT emulation, the SK-211 and SK-311 series now benefit from Star’s Advanced Android SDK with direct cable printing support for low cost, compact tablet-based kiosks.
The new SK1-311SK re-stick liner free kiosk printer is the latest addition to Star’s popular Sanei kiosk printer range. Designed to print repositionable variable length thermal labels, the SK1-311SK eliminates any unused white space on labels which helps paper saving. With its open chassis design, the SK1-311SK is perfect for integration into a variety of kiosk terminals for the food and travel industries or any self-service application. All SK1-311 models come with RS-232C and USB interfaces which integrate with many commonly used kiosk solutions.

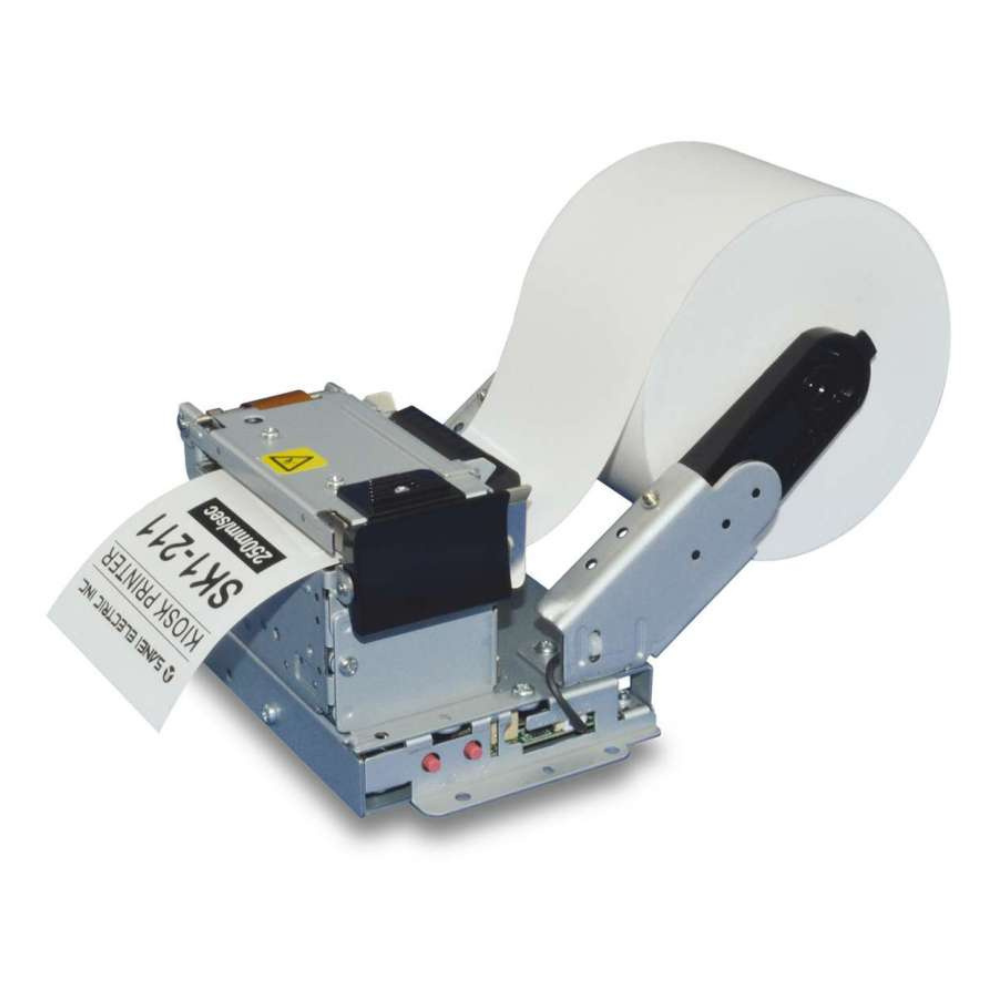

The SK1-211 two-inch series provides dependable, maintenance-free printers that have a fast print speed of 250mm/sec with 203 dpi resolution. The printers come in either standard format (horizontal orientation) with or without presenter, and vertical format with or without presenter.

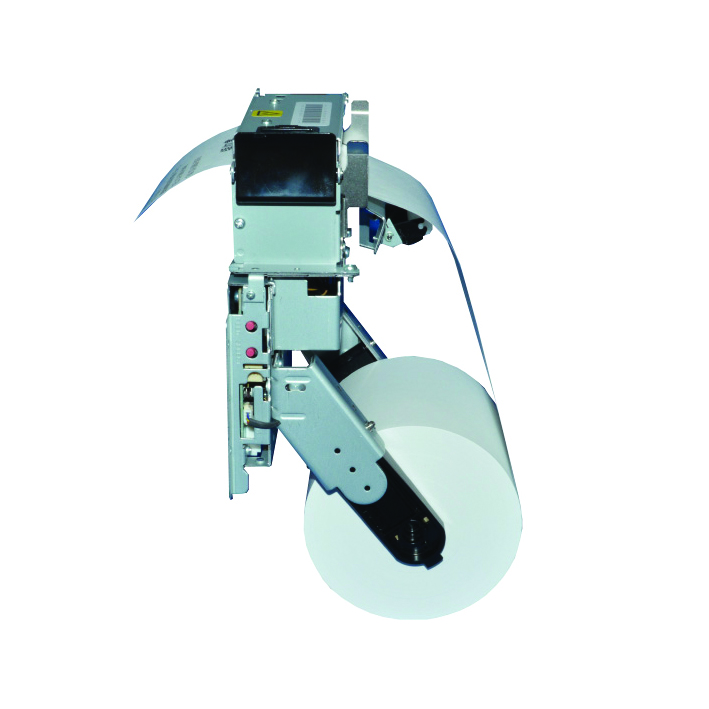

The SK1-311 three-inch series provides dependable, maintenance-free printers that have a fast print speed of 250mm/sec with 203 dpi resolution. The printers come in either standard format (horizontal orientation) with or without presenter, and vertical format with or without presenter. The SK1-311 SK printer offers a linerless labelling solution for standard kiosks.

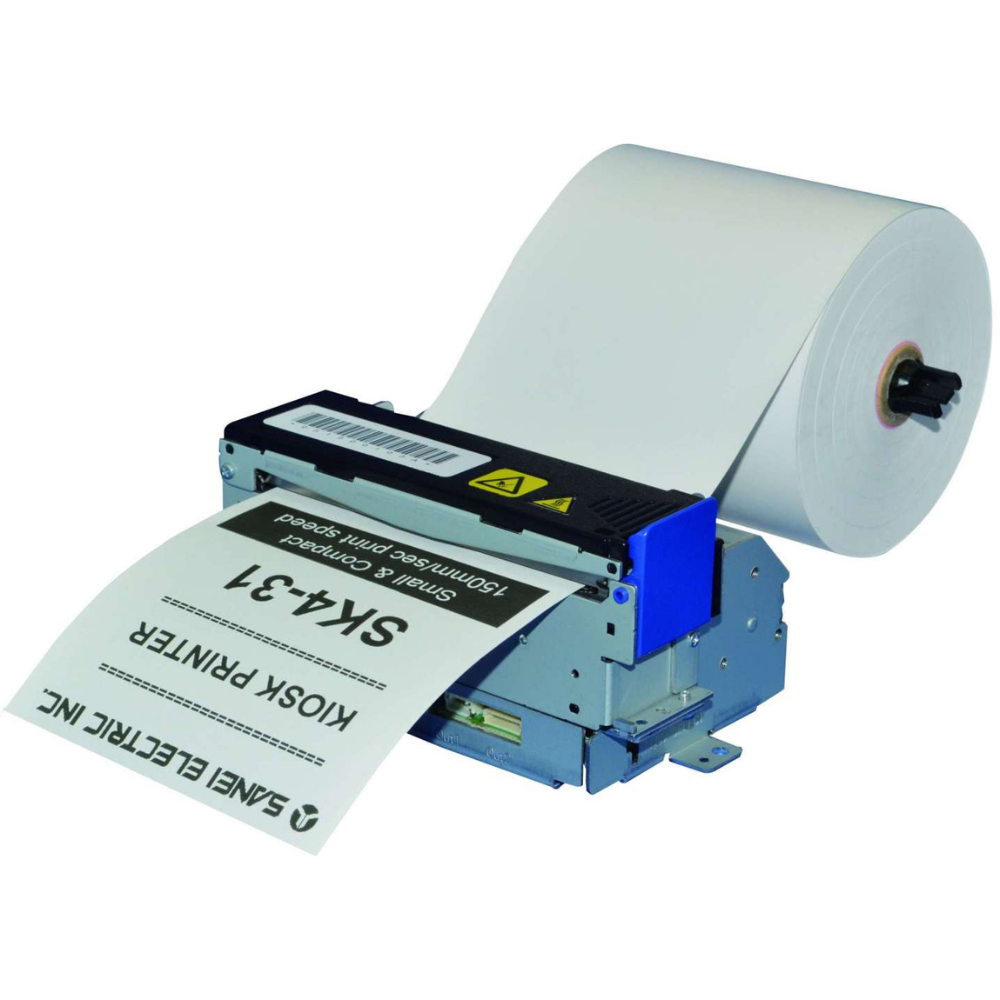

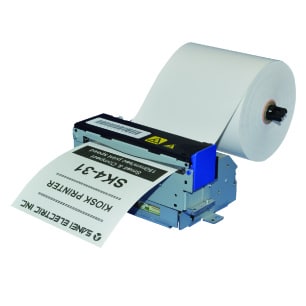

The new SK4-21 and SK4-31 Series offer a compact and versatile entry level solution for small space applications with a choice of 3 paper roll positions for simpler installation.

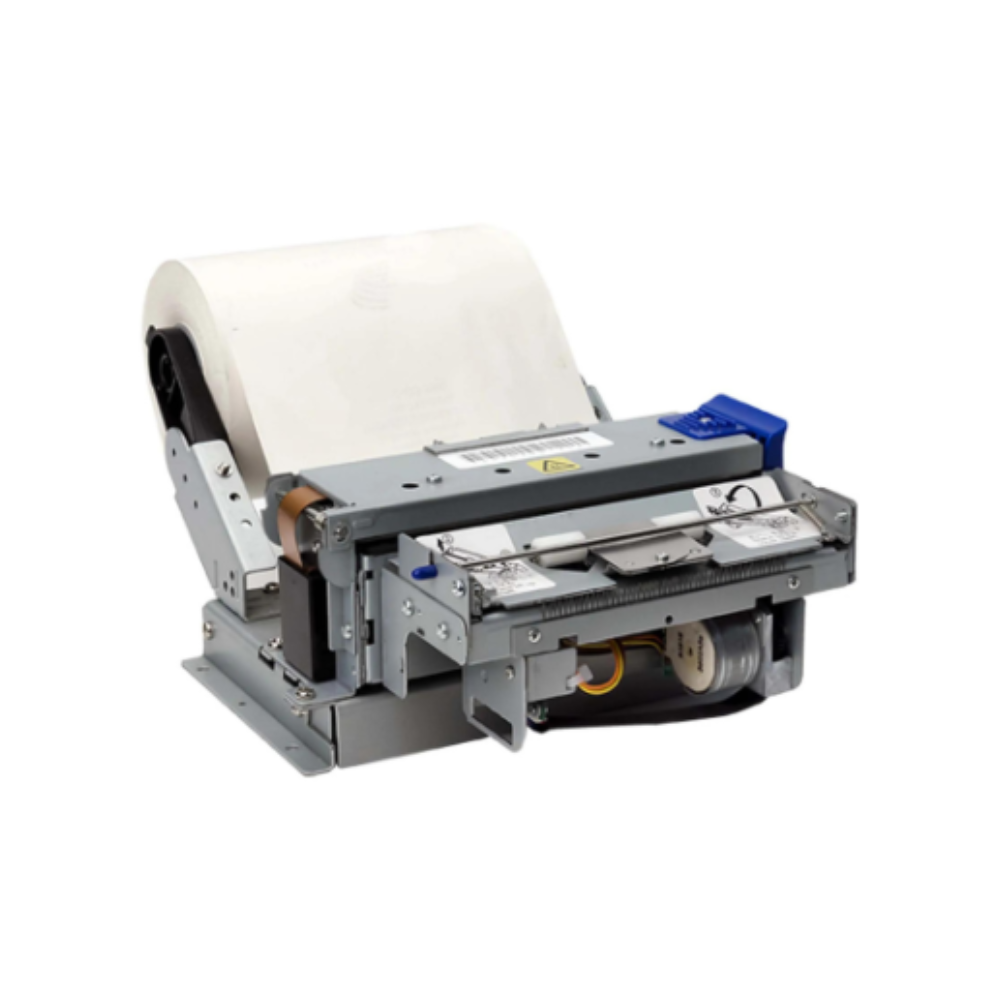

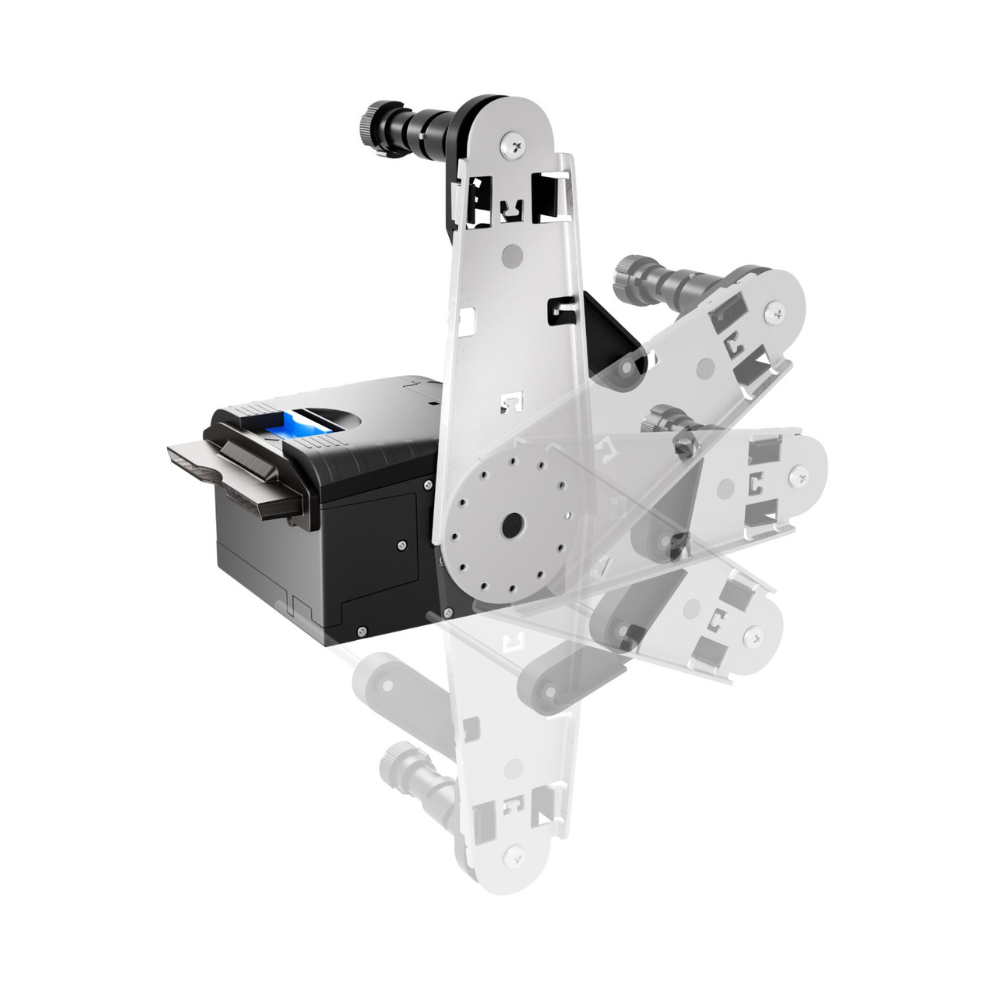

Kiosk printer with 12 position paper holder and presenter included. Designed for simple installation in demanding unattended and self-service applications, the versatile SK5-31 features a super-fast print speed, automatic ticket presentation and retraction and comes with a 12 position paper roll holder for ultimate versatility.
The SK1-41 4″ / 112mm kiosk printer series provides dependable, low maintenance printers that have a fast print speed of 150mm/sec with 203 dpi resolution. The thermal kiosk printers come in standard format (horizontal orientation), with or without presenter.
StarPRNT is an all-in-one driver, configuration utility and support package designed for Star POS, Kiosk and Mobile Printers for development under Windows, Android, Linux and MAC.
Please contact our support team to check the range of drivers available.
View product specifications and technical information
Download product brochures and data sheets
View models and part numbers within the range
Drivers, product manuals, SDK information and FAQs
Need product support or help with integration? Contact the Star team today and they will be happy to help!
A combination of sustainability, design and advanced technology
Star House Peregrine Business Park, Gomm Road, High Wycombe, Bucks
HP13 7DL, UK
| Description | SK4-21, SK4-31 Entry Level no Presenter SK1-211, SK1-311 no Presenter SK1-211LQW, SK1-311LQW, LED presenter SK1-211LQP, SK1-311LQP, with presenter SK1-V211, SK1-V311 – vertical mount SK1-V211LQP, SK1-V311LQP – presenter and vertical mount SK1-221 / SK1-321 Clamshell SK1-41A-L no Presenter SK1-41A-LP with Presenter and Label Support SK1-21-H 2″ 12V / SK1-31-H 3″ 12V |
|---|---|
| Max Print Speed | SK1-211 / SK1-311 / SK1-221 / SK1-321 Series = 250 mm/s SK1-41 / SK4 Series = 150mm/s |
| Resolution | 203 dpi |
| No. of Columns | SK4-21 / SK4-31 SK1-211/221 Max. 56 col SK1-311/321 Max. 80 col depending on Paper Width SK1-41A Max 104 col (8 x 16) Max 69 col (12 x 24) Depending on Paper Width |
| Autocutter | Full or Partial (Guillotine). Full only with Presenter |
| Paper Width | SK4-21 / SK4-31 58mm/80mm SK1-211/221: 54/56mm SK1-311/321: 58/60/80/83mm SK1-41: 80/83/112mm |
| Paper Thickness | SK4-21 / SL4-31 0,059 – 0,085 SK1-211, SK1-311:0,059 – 0,15 mm SK1-41 0,059 – 0,12mm |
| Paper Roll Standard Option | Standard: 120 mm with Option: 200 mm SK4-21 / SK4-31: Max 83mm |
| Media Presentation | SK1-211 / 311 / 41: Presenter with Document Capture (not for labels). Plastic or Flashing Bezel options. SK4-21 / SK4-31: LED and Anti-jam Bezel options |
| Print Width | SK1-211: 54 /56mm SK1-311 : 54/56/72/80mm SK1-41: 72/80/104mm SK4-21: 54mm SK4-31: 72mm |
| Sensors | Near End Reflection (PE/BM) & Gap (SK4-21 / SK4-31: Near End, Paper End, Black Mark) |
| Interface | Serial, USB as standard |
| Power Supply | SK1-211 / SK1-311 / 221 / 321 / SK4-21 / SK4-31 : External Option PS60A with CB-SK1-D3 cable SK1-41: External Option SA1-27A240-1 Power lead not supplied |
| Power Consumption | 60 W printing 1,68 W Standby |
| Energy Star | External, Energy Star Qualified PS60A (optional)
SK1-41: External, SA1-27A240-1 (optional) |
| Reliability | 60 million lines 2 million cuts (SK1-211 and SK1-311 series) 1.5 million cuts (SK1-41 series) 1 million cuts (SK4-21 / SK4-31) |
| Dimensions (W x D x H)mm Weight (without interface cover) |
SK1-211: Paper Holder position 83mm – 104 x 129.2 x 73.6mm: 525g Paper Holder position 102mm – 104 x 137.3 x 79.5mm: 525g Paper Holder position 120mm – 104 x 145.5 x 85.4mm: 525g* * Factory setting SK1-311: Paper Holder position 83mm: 127 x 129.2 x 73.6mm : 630g Paper Holder position 102mm: 127 x 137.3 x 79.5mm: 630g Paper Holder position 120mm: 127 x 145.5 x 85.4mm: 630g* *Factory setting SK1-221 104 x 140,3 x 69,7 mm 580g SK1-321: 128 x 174,5 x 74,2mm 730g SK1-41: Paper Holder position 83mm: 160.9 x 143.1 x 76.3mm : 885g Paper Holder position 102mm: 160.9 x 151.2 x 82.2mm: 885g Paper Holder position 120mm: 160.9 x 159.3 x 88.1mm: 885g* *Factory setting SK4-21: 86 x 150 x 81.7: 356g SK4-31: 106 x 150 x 81.7: 410g |
| Document Capture (Anti-litter mode) | Document Capture |
| Options |
|
| Part Number | Model | Description | |
| 37968581 | SK4-21SF-M-ST | 2″ Entry Level Open Frame Kiosk Printer with paper holder | |
| 37968551 | SK4-31SF-M-ST | 3″ Entry Level Open Frame Kiosk Printer with paper holder | |
| 37966641 | SK1-21HASF-Q-ST | 2″ Open Frame Kiosk Printer 12V | |
| 37966650 | SK1-31HASF1-Q-ST | 3″ Open Frame Kiosk Printer 12V | |
| 37963702 | SK1-41ASF4-LQ-M-ST | 4″ Open Frame Kiosk Printer with paper holder | |
| 37963692 | SK1-41ASF4-LQP-M-ST | 4″ Open Frame Kiosk Printer with paper holder and presenter | |
| 37963764 | SK1-211SF2-Q-M-SP | 2″ Open Frame Kiosk Printer with paper holder | |
| 37963754 | SK1-211SF2-LQP-M-SP | 2″ Open Frame Kiosk Printer with paper holder and presenter | |
| 37964084 | SK1-V211SF2-LQP-M-SP | 2″ Open Frame Kiosk Printer with paper holder, vertical mount | |
| 37964594 | SK1-V211SF2-Q-M-SP | 2″ Open Frame Kiosk Printer with paper holder and presenter, vertical mount | |
| 37967914 | SK1-211SF2-LQW-M-SP | 2″ Open Frame Kiosk Printer with LED Presenter | |
| 37963894 | SK1-221SF2-Q-M-SP | 2″ Open Frame Kiosk Printer with paper tray | |
| 37963784 | SK1-311SF4-Q-M-SP | 3″ Open Frame Kiosk Printer with paper holder | |
| 37963776 | SK1-311SF4-LQP-M-SP | 3″ Open Frame Kiosk Printer with presenter | |
| 37964094 | SK1-V311SF4-Q-M-SP | 3″ Open Frame Kiosk Printer with paper holder, vertical mount | |
| 37964604 | SK1-V311SF4-LQP-M-SP | 3″ Open Frame Kiosk Printer with paper holder and presenter, vertical mount | |
| 37967904 | SK1-311SF4-LQW-M-SP | 3″ Open Frame Kiosk Printer with LED Presenter | |
| 37963464 | SK1-321SF4-Q-M-SP | 3″ Open Frame Kiosk Printer with paper tray | |
| 37951300 | SK1-311SF4-Q-SK-SP | 3″ Open Frame Linerless Kiosk Printer with cutter | |
| 37951640 | SK5-31UE-LQW-H-SP3 | 2″ Entry Level Open Frame Kiosk Printer with paper holder | |
| 37968581 | SK4-21SF-M-ST | PS65 Power supply does not include a cord set & 37950070 CB-Sk1-D11 power conversion cable maybe required | |
| 37951650 | SK5-31UD-LQW-H-SP3 | PS65 Power supply does not include a cord set & 37950070 CB-Sk1-D11 power conversion cable maybe required | |
| Accessories | |||
| 37963490 | BZ-SK1-1 Bezel | Black Standard Bezel | |
| 37963710 | BZ-SK1-2 Bezel | Black Standard Bezel with Separator | |
| 37965520 | LB-SK1-1 LED Bezel | LED Bezel with Sensor (Blue & Red) | |
| 37967920 | LB-SK1-1G LED Bezel | LED Bezel with Sensor (Green & Red) | |
| 37969130 | BZ2-SK1 BEZEL | LED anti-jam Bezel for SK1-211/311 Series (Green & Red) | |
| 37969140 | BZ2-SK4 BEZEL | LED anti-jam Bezel for SK4-21/31 Series (Green & Red) | |
| 37967550 | PR-SK1-21 Presenter | Presenter compatible with SK1-211 2″ Kiosk Printer | |
| 37967560 | PR-SK1-31 Presenter | Presenter compatible with SK1-311 3″ Kiosk Printer | |
| 37967950 | PR2-SK1-21 Presenter | LED Presenter compatible with SK1-211 2″ Kiosk Printer | |
| 37967960 | PR2-SK1-31 Presenter | LED Presenter compatible with SK1-311 3″ Kiosk Printer | |
| 37967930 | PR-SK1-21H Presenter | 12V Presenter compatible with SK1-21HASF 2″ Kiosk Printer | |
| 37967940 | PR-SK1-31H Presenter | 12V Presenter compatible with SK1-31HASF 3″ Kiosk Printer | |
| 37963730 | HL2-SK1 Large Paper Holder | Large Paper Holder for 2” and 3” Kiosk max 200mm | |
| 37965700 | HL2 Guide Roller | Guide Roller for HL2-SK1 | |
| 37966090 | HL1-80M Large Paper Holder | Large Paper Holder for 3″ Kiosk max 200mm | |
| 37966250 | HL3-SK141 Large Paper Holder | Large Paper Holder for 3″ and 4″ Kiosk max 254mm | |
| 37950030 | CB-SK1-D7 Cable | Power Cable for internal power supply connection (Molex) | |
| 37967980 | CB-SK1H-D1 Cable | Power Cable for 12V Kiosk Printers | |
| 37950040 | CB-SK1-D8 Cable | Power Cable with Hosiden Connector (Molex) for use with Star PS60 | |
| 37950050 | CB-SK1-D9 | Power conversion cable (Molex to Hirose) | |
| 30782120 | PS60A-24C PSU EU Plug | Star 24VDC Mains Power Supply EU Power Lead | |
| 30782130 | PS60A-24C PSU UK Plug | Star 24VDC Mains Power Supply UK Power Lead | |
| 37967330 | CB-SK1-S4 Cable | Serial Cable for all SK1 models | |
| 37963743 | SA4-27A24O-3 | PSU for SK1-41 series (Molex) | |
| 37966760 | Bezel Mounting Plate | Bezel Mounting Plate for SK1-211/311 | |
| 37969030 | HL1 NE Sensor Cable (46CM) | Sensor Cable (46CM) | |
| 37963730 | HL02 – Paper Extension Arm | Paper Extension Arm | |
| 37969230 | Serial Cable SK4-21/31 | Serial Cable for SK4 Series | |
| 37969210 | Paper Damper Kit | Paper Damper Kit for SK4-21/31 | |
| 37969220 | Paper Guide D SK4-21/31 | Paper Guide for SK4-21/31 |
