HI X Connect

Intelligent Printing for Cloud Retail

Take advantage of all the Cloud has to offer with the new Star HI X Connect Interface with Star WebPRNT and Star CloudPRNT for Mobile, Web and Cloud POS Printing

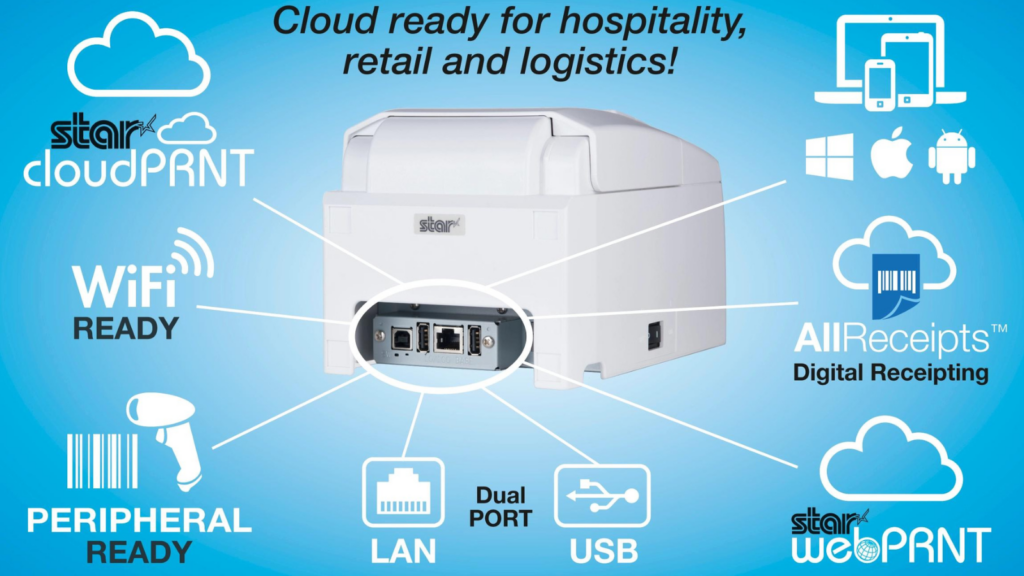

Available for Star TSP650II, TSP700II, TSP800II Thermal POS Printers and the SP700 Matrix Kitchen Printer, the versatile Star Hi X Connect with Star CloudPRNT provides intelligent printing for Cloud retail, logistics and hospitality applications enabling unparalleled flexibility for remote receipt and remote order printing using a standard receipt printer.

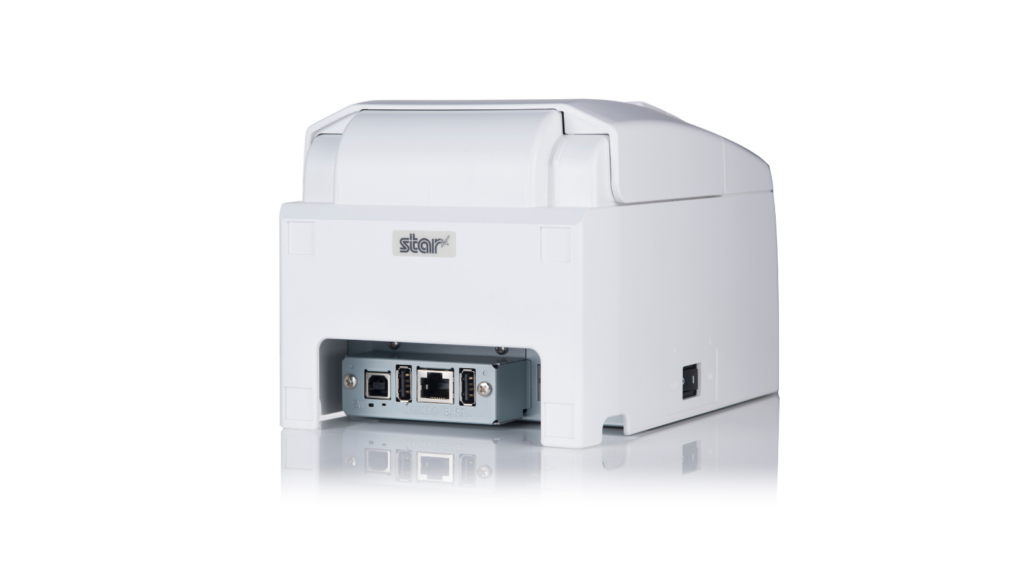

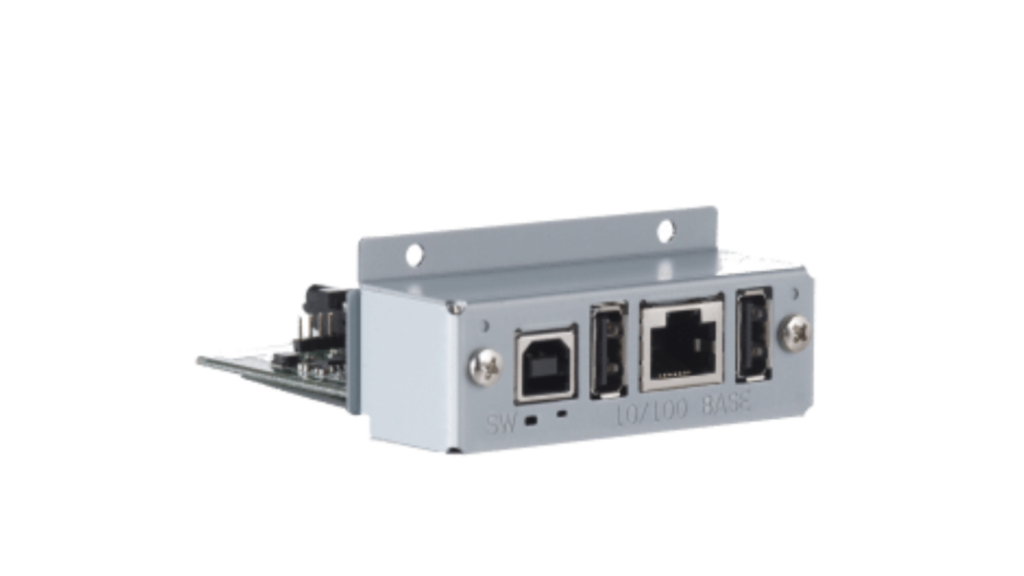

hix_interfaceWith dual USB and Ethernet ports, the HI X interface is also WiFi ready supporting a range of wireless adapters for reliable wireless connectivity.

In addition, the HI X Connect interface includes 2 USB host ports to drive peripherals including scanners and to support peripheral charging. This enables simpler system connectivity via a single hub without the need for a local Point of Sale Terminal or PC.

Star CloudPRNT enabling remote document and label printing from a web server from any network without the need for a local POS terminal, ideal for cloud based POS applications such as restaurant aggregation, click and collect applications and logistics.
Star WebPRNT providing independent HTML / JavaScript printing for local web based applications.
Star Cloud Services including Star’s Digital Receipt Service and Cloud Analytics.
The HI X interface is easy to set up using web based configuration or simple provisioning via a USB stick or pen drive. Once installed, the Hi X Interface can continuously support future services and features via internet updates.

Star’s unique Hi X Connect Interface with CloudPRNT functionality can be used with Star’s TSP654II, TSP743II, TSP847II and SP742 printers as a full POS system where the printer is used as a hub for Star 1D or 2D scanners, Star SCD222 customer displays and Star CB2002 cash drawers.

Easy To Set Up

The HI X interface is easy to set up using web based configuration or simple provisioning via a USB stick or pen drive. Once installed, the Hi X Interface can continuously support future services and features via internet updates.

Multiple Peripheral Control

Star’s unique Hi X Connect Interface with CloudPRNT functionality can be used with Star’s TSP654II, TSP743II, TSP847II and SP742 printers as a full POS system where the printer is used as a hub for Star 1D or 2D scanners, Star SCD222 customer displays and Star CB2002 cash drawers.

Cloud based software can be run on any tablet or smartphone (Windows, Android, Linux or iOS) with all functionality controlled through the printer providing a full POS Transactional Solution with all the advantages of Tablet POS. The

TSP654II CloudPRNT-POS and TSP743II CloudPRNT-POS offer ideal cloud-based hub solutions for retail, hospitality and logistics applications.

Multiple Interfaces

Dual Intelligent USB/LAN Interface available for Star TSP650II, TSP700II, TSP800II and SP700 POS printers

  • Dual Intelligent USB/LAN Interface available for Star TSP650II, TSP700II, TSP800II and SP700 POS printers
  • WiFi ready with choice of wireless adapter
  • CloudPRNT for remote document printing from a web server.
  • WebPRNT platform for independent HTML/JavaScript printing from web based applications
  • AllReceipts Digital Receipt Service with End User App and Cloud Analytics
  • 2 USB host ports to drive peripherals for simple connectivity without the need for a PC (Star scanners, Customer Displays and Cash Drawers)
  • Easy setup using web based configuration or super quick setup/provisioning via a USB stick or pen drive.
  • Simple internet updates to support new features

Best in class

Product Support

Specifications

View product specifications and technical information

Brochures

Download product brochures and data sheets

Models

View models and part numbers within the range

Product Support

Drivers, product manuals, SDK information and FAQs

You may also like

Related products

mC-Label3

Part of Star’s popular mCollection, the mC-Label3 combines high quality, versatile thermal label printing with superior connectivity for PC, Network, Tablets and Cloud based systems.

View Product

mC-Print2

Super compact 2″ 58mm thermal receipt printer with front feed and up to 5 interfaces plus hub functionality

View Product

mC-Print3

Compact 3″ thermal 80mm 400mm/s front feed, front paper loading mPOS threceipt printer with PC POS, Tablet, Cloud connectivity

View Product

You're in safe hands

What our customers are saying

Contact Star

Need product support or help with integration? Contact the Star team today and they will be happy to help!

Specifications

HI01 HI X Connect Interface for TSP654II, TSP700II, TSP800II printers
 HI02 Hi X Connect Interface for SP700 printers
TSP654IIHIX
TSP743IIHIX
TSP654II CloudPRNT-POS printer with HI X Connect Interface included
TSP743II CloudPRNT-POS printer with HI X Connect Interface included
 Wireless Adapters Supported
GW-USNANO2A (PLANEX)
TEW-648UBM (TRENDnet)
EW-7811UN (EDIMAX)
WNA1000M (NETGEAR)
Supports https with TLS1.2 security for connections to its internal web server with encrypted communication use for all device configuration and firmware updates once https has been enabled with a suitable certificate installed. External web servers (e.g. for CloudPRNT support https with SSL3, TLS 1.0, TLS1.1 & TLS1.2. Key sizes up to 256bit & all standard cipher types supported.
For further information and custom set-ups please contact our dedicated technical support team

Models

HI X Connect Models

Part Number Model Description
39607121 IFBD-HI01X INTELLIGENT INTERFACE Plug-In HI X Intelligent Interface with Star CloudPRNT for TSP650II, TSP700II, TSP800II Thermal Printers
39607120 IFBD-HI02X INTELLIGENT INTERFACE Plug-In HI X Intelligent Interface with Star CloudPRNT for SP700 Matrix Printer
99250361 DONGLE HIX EW7811V2 WiFi dongle for HI01X/HI02X
99256300

99257300

 TSP654IIHIX GRY E+U

TSP743IIHIX GRY E+U

TSP654II thermal printer with HI X Connect Interface, 80mm Wide Paper, 24VDC, PS60 PSU both UK and EU included in box, Cutter, Charcoal Grey Case

TSP743II thermal multifunctional printer with HI X Connect Interface, 80mm Wide Paper, 24VDC, PS60 PSU both UK and EU included in the box, Cutter, Charcoal Grey Case
