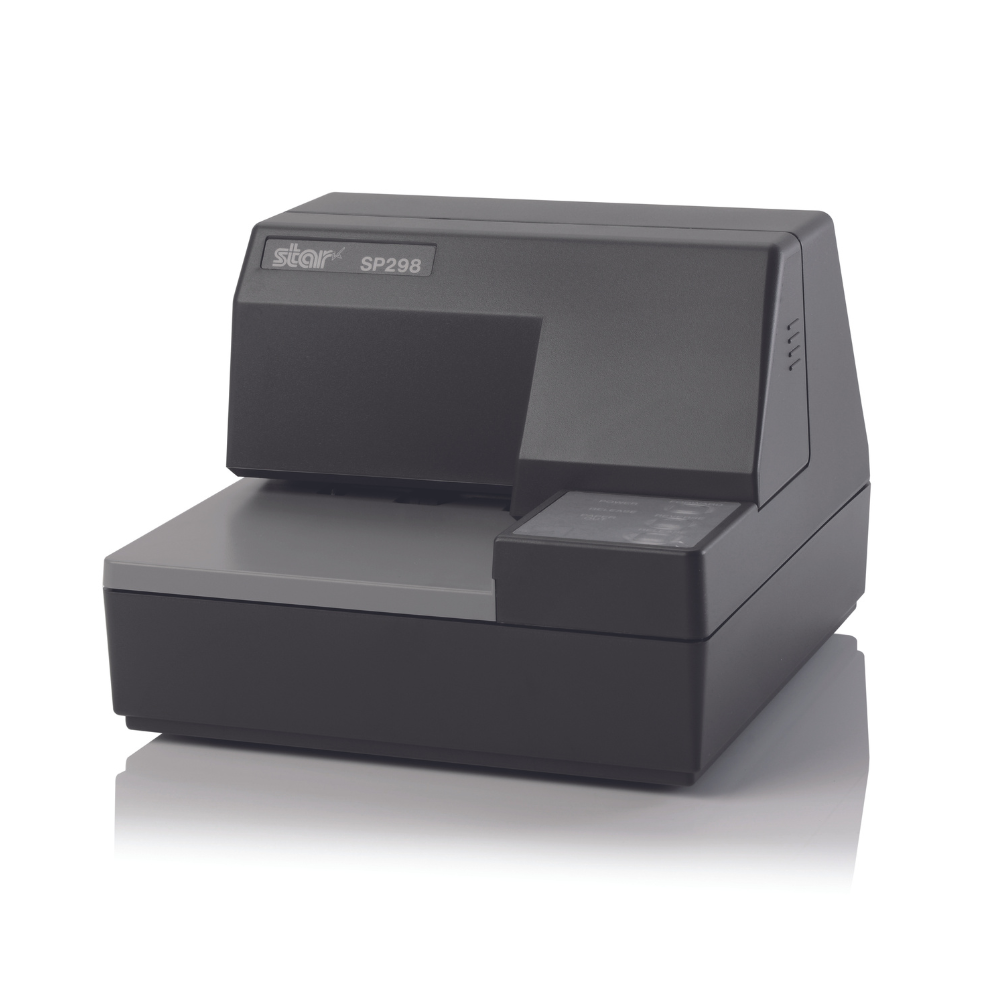

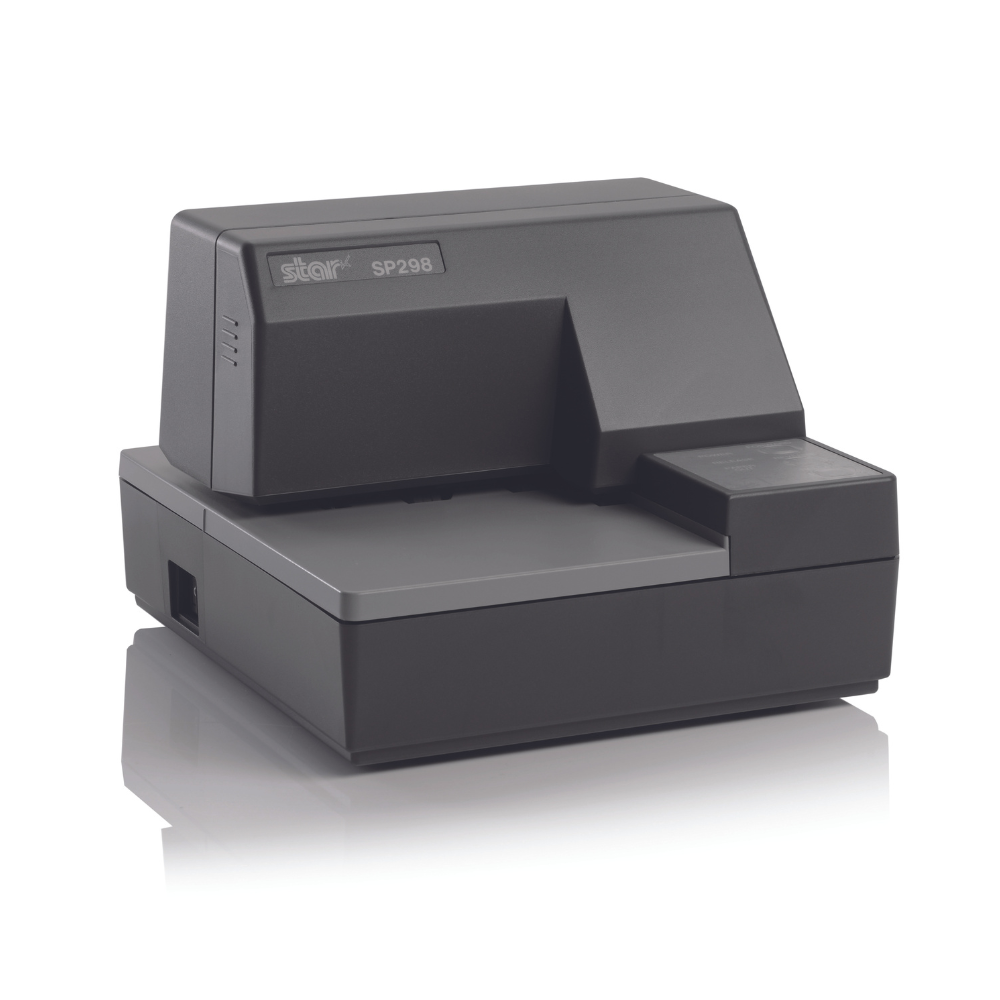

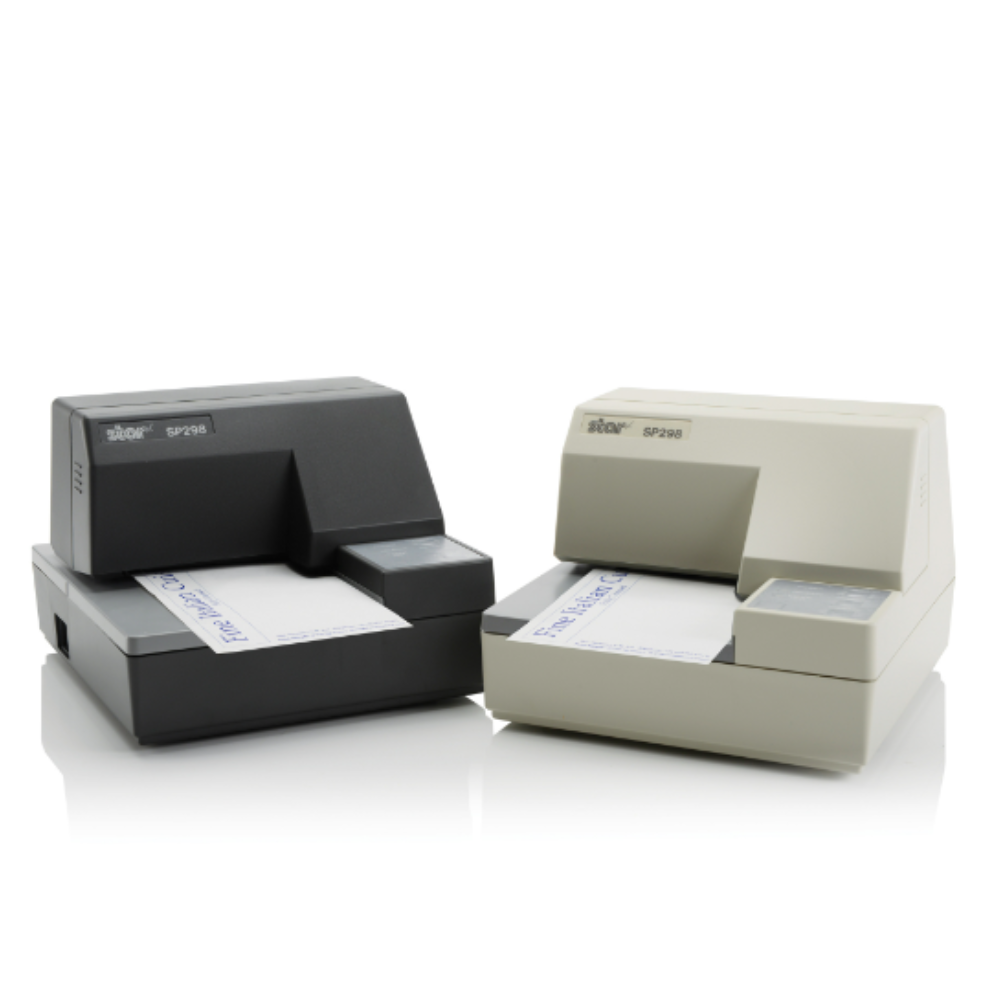

SP298
SP298MD Serial
SP298MC Parallel
High quality matrix slip / cheque printer
The SP298 is a compact, robust and reliable matrix slip printer ideal for printing cut sheet media such as pre-printed company branded multi part receipts or forms / cheques.
The SP298 features a high quality print head for printing graphics and special characters as well as AutoSide Loading™ for correct positioning and alignment of forms. The user can simply insert the form and the printer performs automatic document clamping, instant top of form alignment and selectable forward or reverse document eject.
At only 180mm wide x 190mm deep, the SP298 provides a compact alternative to bulky desk top printers at the Point of Sale or in hotels, restaurants or pharmacies.
Features
- High performance, logic seeking, 9-pin quality matrix printer – up to 3.1 lps
- Rugged bi-directional printer for cut sheet, multi-copy forms
- Capable of printing graphics and special characters using a highly reliable 9-pin print head
- Up to 3.1 lines per second print speed with bi-directional cheque mode
- High reliability with helix head drive and 9 million lines CRT
- Compact footprint
SP298 Specifications
| Max. Print Speed | 3.1lps |
|---|---|
| Resolution | 7 x 9 half dot |
| No. of Columns | 42 |
| Autocutter | Slip Printer |
| Paper Width | Up to 182mm |
| Paper Thickness | 0.09 – 0.20mm 1+2 copies |
| Paper Roll Standard Option | Slips only |
| Media Presentation | Horizontal mode |
| Print Width | 63mm |
| Sensors | Auto Side Loading |
| Interface | RS232C or Parallel |
| Unique Ethernet Print on Disconnection Feature | |
| Power Supply | External Option PS60 |
| Power Consumption | 1.0 Amps Printing 0.07 Amps Standby |
| Energy Star | External, Energy Star Qualified PS60 (Optional) |
| Reliability | 9 Million Lines |
| Dimensions (W x D x H) mm Weight | 180 x 190 x 138.5 |
| Options |
|
Image Gallery
Related Products
Star PS60 Power Supply
Star HSP7000 Thermal / Matrix Combination Printer
Star SP700 Matrix Receipt Printer
Star DP8340 Matrix Receipt Printer
SP298 Models
| Part Number | Model | Description |
| 39309201 | SP298MD42-G White | Star SP298MD42-G White, Fast Slip Printer, 9 pin printing, Serial Version |
| 39309301 | SP298MC42-G White | Star SP298MC42-G White, Fast Slip Printer, 9 pin printing, Parallel Version |
| 39309261 | SP298MD42-G GRY | Star SP298MD42-G Grey, Fast Slip Printer, 9 pin printing, Serial Version |
| 39309311 | SP298MC42 -G-GRY | Star SP298MC42-G Grey, Fast Slip Printer, 9 pin printing, Parallel Version |
| Accessories | ||
| 30781880 | PS60A-24BI EU Plug Set | Star PS60A-24B AC Adapter for Printer, EU Only |
| 30781890 | PS60A-24BI PSU UK Plug Set | PS60A-24B mains AC Adapter, PSU UK Plug – UK Only |
| 30980115 | RC200B (carton qty 144pcs) | RC200B Ribbon, Compatible with SP298 |
