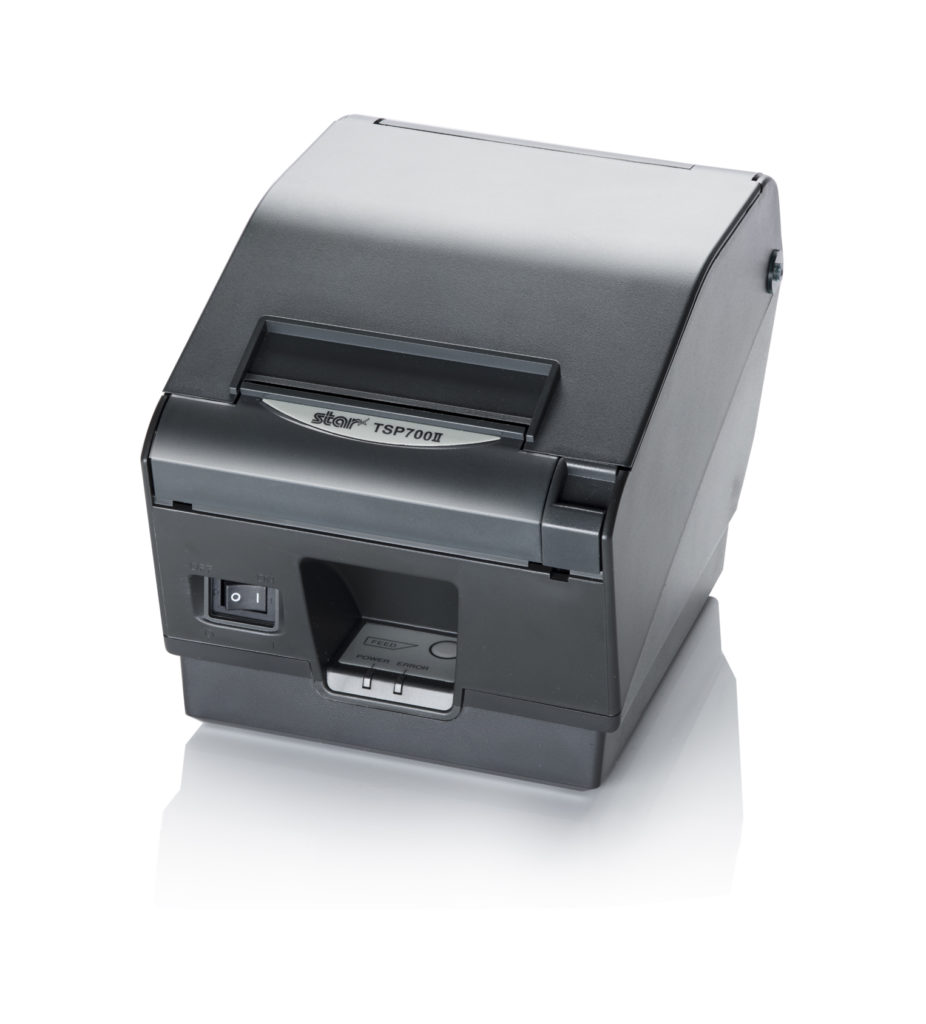

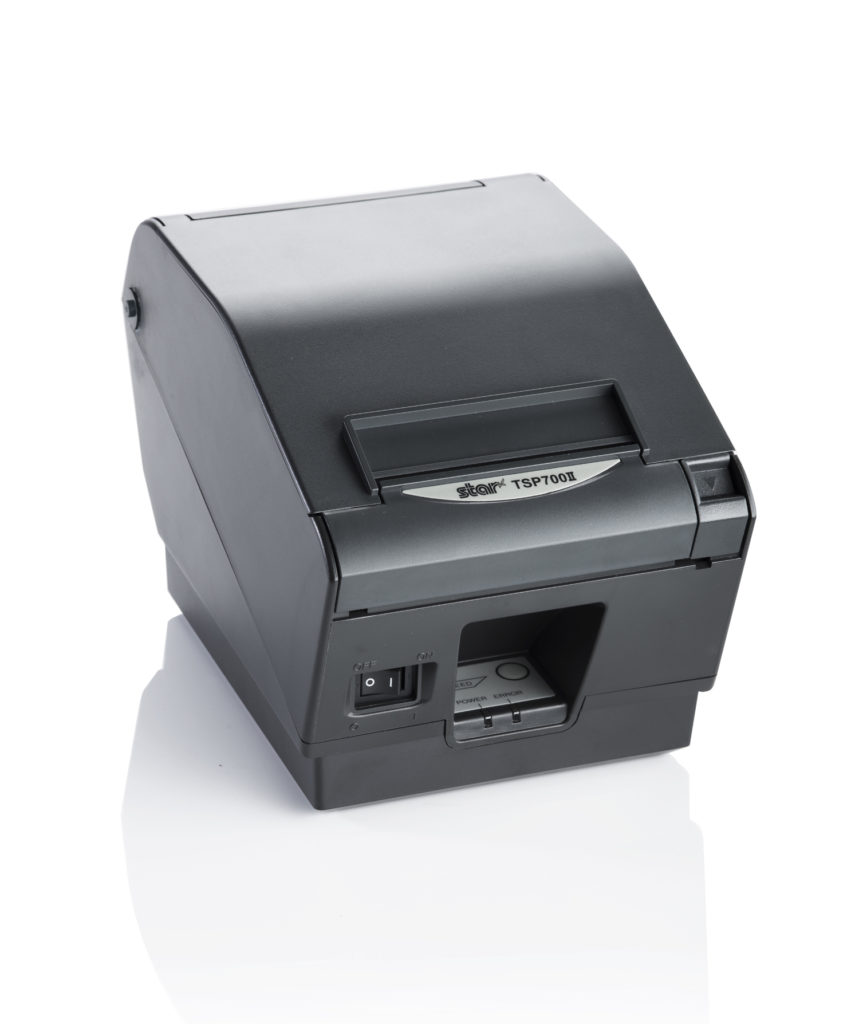

TSP700II

Combining speed, reliability and ease-of-use, the TSP700II multifunctional printer produces high resolution graphics and barcodes for tickets, receipts and labels.

High speed multi-functional printer

The TSP700II is a cost effective multifunctional printer, capable of printing high quality receipts and fixed length tickets and labels on paper up to 0.15mm thick. With a high quality cutter as standard and black mark sensor for fixed length printing, the TSP700II can be used as a label printer, lottery printer or dedicated ticket printer for cinemas, theme parks and events. Its compact and versatile design means the TSP700II can also be mounted vertically in a kiosk environment for unattended receipt or ticket printing with an optional flashing paper exit guide.

Featuring a double resolution mode to increase sharpness on any graphic, the TSP743II makes it easier than ever to create eye-catching graphics for company logos and promotions.

The TSP700II’s plug-in interfaces allow users to change its interface efficiently. Interfaces include Serial, Parallel, USB, Ethernet and HI X Connect with Star CloudPRNT. Star CloudPRNT provides intelligent printing for Cloud retail, logistics and hospitality applications enabling unparalleled flexibility for remote receipt, order, ticket and label printing using a standard receipt printer.

The TSP700II is used in kiosks and self-service applications worldwide due to its ease of integration and reliable printing.

High quality build

Sleek design with a top cover which extends to the edge of the printer, making it more difficult for dust and liquids to penetrate and harm the printer. Sound and vibration dampening channels within the printer help reduce printing noise and add an extra layer of protection from moisture or dust in harsh environments.

Versatile printing

The TSP700II is capable of printing receipts, tickets and labels from the same printer with a black mark sensor and high quality cutter for fixed length tickets and labels. The TSP700II can operate horizontally on a counter or vertically in a kiosk or self service terminal or can be wall mounted.

Cloud connected

Star’s unique Hi X interface includes dual USB and Ethernet LAN as well as Star’s CloudPRNT Technology for direct printing from web based apps and online ordering system

Product Features

  • Fast, high quality receipt printer capable of producing barcodes, labels and tickets at at 250mm/second
  • “Drop-In & Print” easy paper loading
  • Black mark sensor for fixed length labels and tickets
  • 60,000,000 lines CRT reliability and compatible with most operating platforms
  • Full or partial cut autocutter (centre)
  • Ergonomic splash resistant design with easy clean case and splash proof cover available
  • Double Density (406x 203dpi) print resolution for high quality graphics and barcodes.
  • Advanced Configuration Utility with the ability to configure graphics or coupons without expensive software changes or complicated set up procedures.
  • Choice of Interfaces including HI X with WebPRNT and CloudPRNT for web and cloud-based applications

Best in class

Product Support

Specifications

View product specifications and technical information

Brochures

Download product brochures and data sheets

Models

View models and part numbers within the range

Product Support

Drivers, product manuals, SDK information and FAQs

You may also like

Related products

TSP800II

Unique 112mm wide format thermal receipt, barcode, label and ticket printer. USB, LAN, Bluetooth, Apple AirPrint, WebPRNT and CloudPRNT Versions

View Product

You're in safe hands

What our customers are saying

Enquire Now

Enquire About This Product

  • By submitting this form you agree with the storage and handling of your data by this website, in addition to being contacted by your provided email address and/or phone number. View our Privacy Policy

Contact Star

Need product support or help with integration? Contact the Star team today and they will be happy to help!

Specifications

Max. Print Speed 250mm/sec.
Resolution 203 dpi, 406 x 203 dpi selectable
No. of Columns 48 / 64 or 53 / 71 col. Depending on Paper Width
Autocutter Full or Partial Cut (Guillotine)
Paper Width 82.5mm, 80mm, 58mm selectable (80mm Standard with User Installable Paper Guide Fitted)
Paper Thickness 0.065 – 0.15mm
Paper Roll Standard Option 100mm
Media Presentation User Selectable Paper Delivery Options with Mounting Bracket included & Optional Paper Exit Guide
Print Width 80mm Maximum
Sensors Black Mark, Paper End, Cover Open, Near End Horizontal & Vertical
Interface Serial, Parallel, USB and Non Interface versions. Plug-In Options: Serial (HD03), 9-pin Serial (HN03), Parallel (HC03), USB (HU07 USB) Ethernet (HE07 Ethernet) , HI X Connect (HI01X)
Unique Ethernet Print on Disconnection Feature Standard with IFBD-HE07 Option
Power Supply External Option PS60A
Power Consumption 1.8 Amps Printing 0.15 Amps Standby
Energy Star External, Energy Star Qualified PS60 (Optional)
Reliability 60 Million Lines 2 Million Cuts
Dimensions (W x D x H) mm Weight 147 x 213 x 148 1.75kg
Options
  • Buzzer
  • T700 Splash Proof Cover
  • Blue or Green & Red LED Paper Exit Guide
  • Plug-in Interfaces (see above)
  • “Plug-In” HI X interface with Star WebPRNT and CloudPRNT interface solution for simple Web and Cloud based  printing
  • Star WebPRNT Browser, Download option for TSP743IIBI from the App Store & Google Play

Models

TSP700II Models

Part Number Model Description
39442400 TSP743II-24 w/o I/F WHITE Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, No Interface, White Case
39442410 TSP743II-24 w/o I/F GRY Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, No Interface, Charcoal Grey Case
39442200 TSP743IIC-24 WHITE Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Parallel Interface, White Case
39442210 TSP743IIC-24 GRY Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Parallel Interface, Charcoal Grey Case
39442300 TSP743IID-24 WHITE Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Serial Interface, White Case
39442310 TSP743IID-24 GRY Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Serial Interface, Charcoal Grey Case
39442501 TSP743IIU-24 WHITE Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, USB Interface, White Case
39442511 TSP743IIU-24 GRY Thermal, 80mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, USB Interface, Charcoal Grey Case
99257300 TSP743II HI X GRY Thermal, 80mm wide paper 24VDC, Cutter, HI X INterface, Grey Case, EU and UK Power Supply included
Accessories
30782120 PS60A-24C PSU EU Plug 24VDC Mains Power Supply Unit. EU Power Lead
30782130 PS60A-24C  PSU UK Plug 24VDC Mains Power Supply Unit. UK Power Lead
39590120 WB-T700 TSP700II Wall Bracket
39590510 VS-T700 TSP700II Vertical Stand Desk Boot
37570010 Splash Proof Cover T700 TSP700II Splash Proof Cover
39594002 BU01-24-A Buzzer TSP700II Plug In Kitchen Buzzer
99250180 99250190 TSP700II Bezel Blue TSP700II Bezel Green Blue flashing Paper Exit Guide for Kiosk use Green flashing Paper Exit Guide for Kiosk use
99250361 DONGLE HIX EW7811V2 WiFi dongle for HI01X/HI02X
39607041
39607200
39607211
39607804
39607820
IFBD-HI01X
IFBD-HD03 D
IFBD-HC03 C
IFBD-HE07 Ethernet
IFBD-HU07 USB
Plug-In HI X Intelligent Interface with Star WebPRNT and Star CloudPRNT
Plug-In Serial Interface
Plug-In Parallel Interface
Plug-In Ethernet LAN Interface
Plug-In USB Interface
CB-2002 Cash Drawer
55555560 CB-2002 LC UN Cash Drawer New Grey CB-2002 Cash Drawer, New Grey, 8 upright note sections, 8 coin slots and cheque/large slot Suitable for TSP700, TSP800
55555561 CB-2002 LC FN Cash Drawer New Grey CB-2002 Cash Drawer, New Grey, 8 flat note sections, 8 coin slots and cheque/large slot Suitable for TSP700, TSP800
