TSP847II AirPrint ™



TSP847II AirPrint™ GRY
TSP847II AirPrint™ WHITE

TSP800 Model and Part Numbers

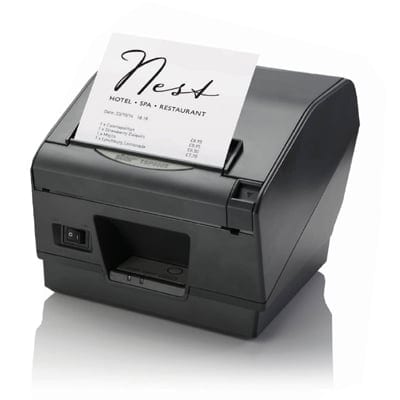

TSP847II AirPrint™: 112mm wide Label, Ticket and Receipt Printer

AirPrint is an Apple technology providing easy mobile printing solutions for Apple iPad, iPhone, iPod and MacBook users on any private network. Using AirPrint, retailers can print without installing specific printer drivers allowing freedom of movement with the ability to print to Star’s TSP847II from anywhere within the business network system. AirPrint support comes preinstalled on iOS devices, allowing the user to discover and output to the desired printer.

Capable of scaling an A4 image onto 112mm wide paper, the TSP800II can be integrated as a cost effective receipt, ticket or label printer or an easy-to-use and compact alternative to standard A4 invoice or report printers in retail and hospitality environments with significant paper and consumables cost savings. The TSP800II incorporates a black mark sensor and is capable of printing on to media up to 150gsm making it an ideal low cost label printer for shelf edge labels or a reliable, high quality ticket printer for wider format tickets. Wall mountable and with an external paper feed, the TSP800II has also been installed in many unattended kiosk environments for printing web print-outs and hotel check-in details.

Advantages include:

  • Lower running costs – TSP800II costs 90.47%* less to run than a typical laser printer
  • Compact printer footprint – at only 180 (w) x 213 (d) x 148 (h) mm valuable desk space saved
  • Faster to first page out and faster print speed than a typical laser at 180mm/second
  • Greener solution – less paper wasted due to variable paper length so scaled A4 pages are not used for minimal print, less CO2 output and power used

Star’s TSP847II AirPrint Solution will provide, Ethernet & WiFi use with an Apple WiFi Alliance certified dongle (EDIMAX EW-7811UN) included in the box

Star PassPRNT Development Tool vs AirPrint Solution for the iOS Developer

Star PassPRNT has to be installed as a separate, helper APP. Airprint is resident already (on iOS devices). PassPRNT will work on iOS or Android devices, AirPrint is Apple only.

Status feedback for the retailer PassPRNT informs the web app if there are any printing issues – print job complete, paper low conditions etc. – this is not so with AirPrint which only informs some info to the user via the UI.

User Comfort PassPRNT & StarPRNT SDKs can provide a simple print button whilst AirPrint is not so simple. AirPrint will typically print a complete web page and then the user has to initiate the OS function to send to AirPrint. PassPRNT can be triggered by a link/button on the page, avoiding confusion over which page, or section of a page to print. With Airprint, it is possible to specifically mark a section for printing with the web page’s CSS but this will then be a modification to the page and therefore may be simpler to use PassPRNT and gain full control.

Cash Drawer Control – AirPrint has limited ability to control cash drawers and this is either “Always Open” or “Never Open” irrespective of whether it is a credit card or cash transaction.

Performance – PassPRNT is faster. AirPrint can take up to 20 seconds to produce the printed receipt and is very much determined by the iOS device in use.

PassPRNT gives more print control – Apple’s rules determine how the receipt is printed e.g. max receipt length is set by Apple. The final receipt can therefore look clumsy and not match important customer brand requirements. AirPrint was primarily designed for set-length, cut-sheet paper and PassPRNT was designed for roll printers with variable length.

Features

  • Apple AirPrint POS receipt printer
  • Faster to first page out and faster print speed than a typical laser at 180mm/second
  • Greener solution – less paper wasted due to variable paper length so scaled A4 pages are not used for
  • Scaling from A4 pages to 4 inch / 112mm receipt paper
  • Compact alternative to standard A4 invoice or report printers in Retail and hospitality environments with significant paper and consumables cost savings.
  • Lower running costs – TSP800II costs 90.47% less to run than a typical laser printer
  • Versatile 180mm / sec. Barcode, Label, Receipt & Ticket Printer with Autocutter
  • Unique 112mm paper width, 104mm / 4″ print width – on paper stock up to 0.15mm thick. (82.5 and 80mm paper rolls can also be accommodated using the optional paper guides)
  • Internal or External Paper Feed Paths (external for large capacity or security applications)
  • “Drop-In & Print”, easy paper loading
  • Compact printer Footprint (180 (w) x 213 (d) x 148 (h) mm) valuable desk space saved
  • Automatic scalable raster driver for immediate A4 reduction to A6. Ideal for desktop replacement printer, Internet café, hotel and kiosk use
  • Choice of interfaces including Bluetooth, WebPRNT and CloudPRNT for mobile, web and cloud-based applications



TSP800II Specifications



Max. Print Speed 180mm/sec.
Resolution 203 dpi, 406 x 203 dpi selectable
No. of Columns A4 Print Capability on 112mm Paper
Autocutter Full or Partial Cut (Guillotine)
Paper Width 112mm paper rolls, 80mm Options with User Installable Paper Guide Option
Paper Thickness 0.065 – 0.15mm
Paper Roll Standard Option 100mm
Media Presentation User Selectable Paper Delivery Options with Mounting Bracket Option
Print Width 104mm
Sensors Black Mark, Paper End, Cover Open, Near End Horizontal & Vertical
Interface Serial, Parallel, USB and Non Interface versions.Plug-In Options: Serial (IFBD-HD03), 9-pin Serial (HN03), Parallel (HC03), Ethernet (HE07), HI X Connect (HI01X)
TSP847IIBI Bluetooth model available for Android, Windows and iOS with Apple MFi certification
TSP847IIHIA – AirPrint Version
Unique Ethernet Print on Disconnection Feature  Standard with IFBD-HE07 Option
Power Supply External Option PS60A
Power Consumption 2.0 Amps Printing 0.12 Amps Standby
Energy Star External, Energy Star Qualified PS60 (Optional)
Reliability 37 Million Lines 2 Million Cuts
Dimensions (W x D x H) mm Weight 180 x 213 x 148 1.9kg
Options
  • Buzzer
  • Plug-in Interfaces (see above)
  • Star WebPRNT Browser Download option for TSP847IIBI from the App Store & Google Play

Image Gallery



TSP700II

TSP654II AirPrint

HI X Connect

Kiosk Printing Solutions

Star PassPRNT

TSP800II Models



Part Number Model Description
39441830  TSP847II HIA GRY  Thermal, 112mm Wide Paper, 24VDC (EU/UK PS60 PSU included), Cutter, Apple AirPrint Interface , Grey Case, EU  / UK Version
39441920  TSP847II HIA White  Thermal, 112mm Wide Paper, 24VDC (EU/UK PS60 PSU included), Cutter, Apple AirPrint  Interface, White, EU  / UK Version
 39443600  TSP847II-24 W/O I/F WHITE Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, No Interface, White Case
 39443610  TSP847II-24 W/O I/F GRY Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, No Interface, Grey Case
 39443700  TSP847IIC-24 WHITE Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Parallel Interface, White Case
 39443710  TSP847IIC-24 GRY Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Parallel Interface, Grey Case
 39443800  TSP847IID-24 WHITE Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Serial Interface, White Case
 39443810  TSP847IID-24 GRY Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Serial Interface, Grey Case
 39443901  TSP847IIU-24 WHITE Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, USB Interface, White Case
 39443911  TSP847IIU-24 GRY Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, USB Interface, Grey Case
 39441600  TSP847IIBI2-24 WHITE Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Bluetooth Interface, White Case
 39441610  TSP847IIBI2-24 GRY Thermal, 112mm Wide Paper, 24VDC (Requires PS60 PSU), Cutter, Bluetooth Interface, Grey Case


Accessories
 30781880  PS60-A-24BI PSU EU  24VDC Mains Power Supply Unit. EU Power Lead
 30781890  PS60-A-24-BI PSU UK  24VDC Mains Power Supply Unit. UK Power Lead
 39590110  WB-T800  TSP800II Wall Bracket
 39590500  VS-T800  TSP800II Vertical Stand Desk Boot



39607040
39607200
39607211
39607804
39607820
IFBD-HI01X
IFBD-HD03 D
IFBD-HC03 C
IFBD-HE07 Ethernet
IFBD-HU07 USB
Plug-In HI X Intelligent Interface with Star WebPRNT and Star CloudPRNT
Plug-In Serial Interface
Plug-In Parallel Interface
Plug-In Ethernet LAN Interface
Plug-In USB Interface
CB-2002 Cash Drawer
55555558 CB-2002 LC UN Cash Drawer White CB-2002 Cash Drawer , White, 8 upright notes & 8 coin slots & cheque/large slot, Suitable for TSP100, TSP650, TSP700, TSP800 & FVP10
55555560 CB-2002 LC UN Cash Drawer New Grey  CB-2002 Cash Drawer, New Grey, 8 upright note sections, 8 coin slots and cheque/large slot
Suitable for TSP700, TSP800 & FVP10
55555561 CB-2002 LC FN Cash Drawer New Grey CB-2002 Cash Drawer, New Grey, 8 flat note sections, 8 coin slots and cheque/large slot
Suitable for TSP700, TSP800 & FVP10
